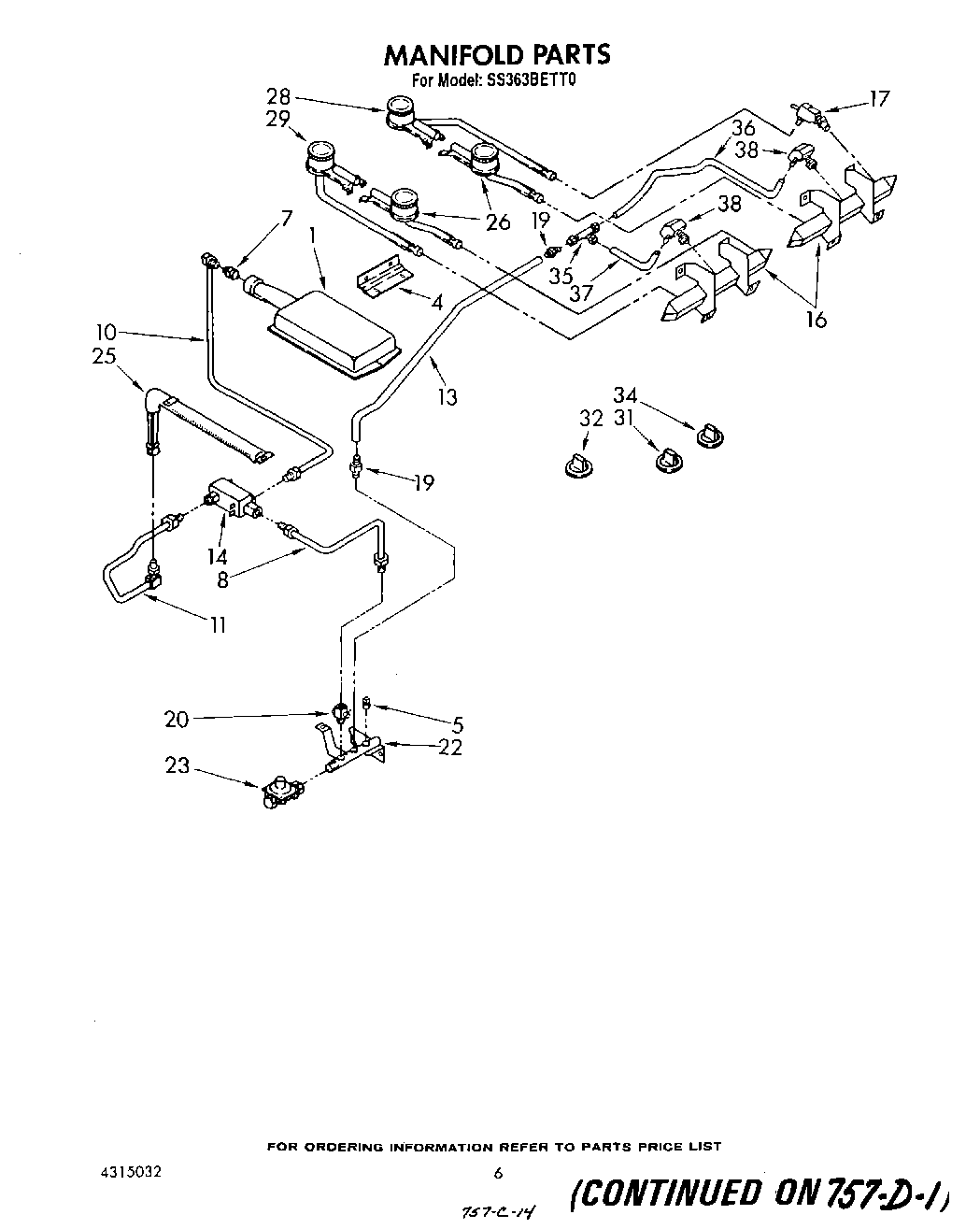

SS363BETT0 04 – MANIFOLD

Products

Position	Product
1	Burner, Ultra Ray Broiler
1	Nut, 6-32 (6)
4	Bracket, Burner Mounting
5	W10295523 Whirlpool Plug
7	LP Gas No. 58
7	Orifice (No.50 Nat. Gas)
8	Tubing (Inlet To Gas Valve)
10	Orifice & Tubing Assembly (Gas Valve To Ultra Ray Burner)
11	Nut, Lock
11	Hood & Tubing Assembly (Gas Valve To Lower Oven Burner)
13	Tubing (Inlet To Tee)
14	Valve, Dual Gas Valve
16	Manifold (2)
17	Valve, Top Burner (4)
19	Fitting
20	Valve, Shut-Off
22	Inlet
23	Regulator, Pressure
25	Oven Burner, Lower
26	Top Burner, Front (2)
28	Top Burner, R.R.
29	Top Burner, L.R.
31	Knob, Top Burner (4)
32	Knob, Oven Control
34	Knob, Selector
35	Inlet Tee
36	Tubing (Tee To L.H. Manifold)
37	Tubing (Tee To R.H. Manifold)
38	Elbow, Manifold (2)
