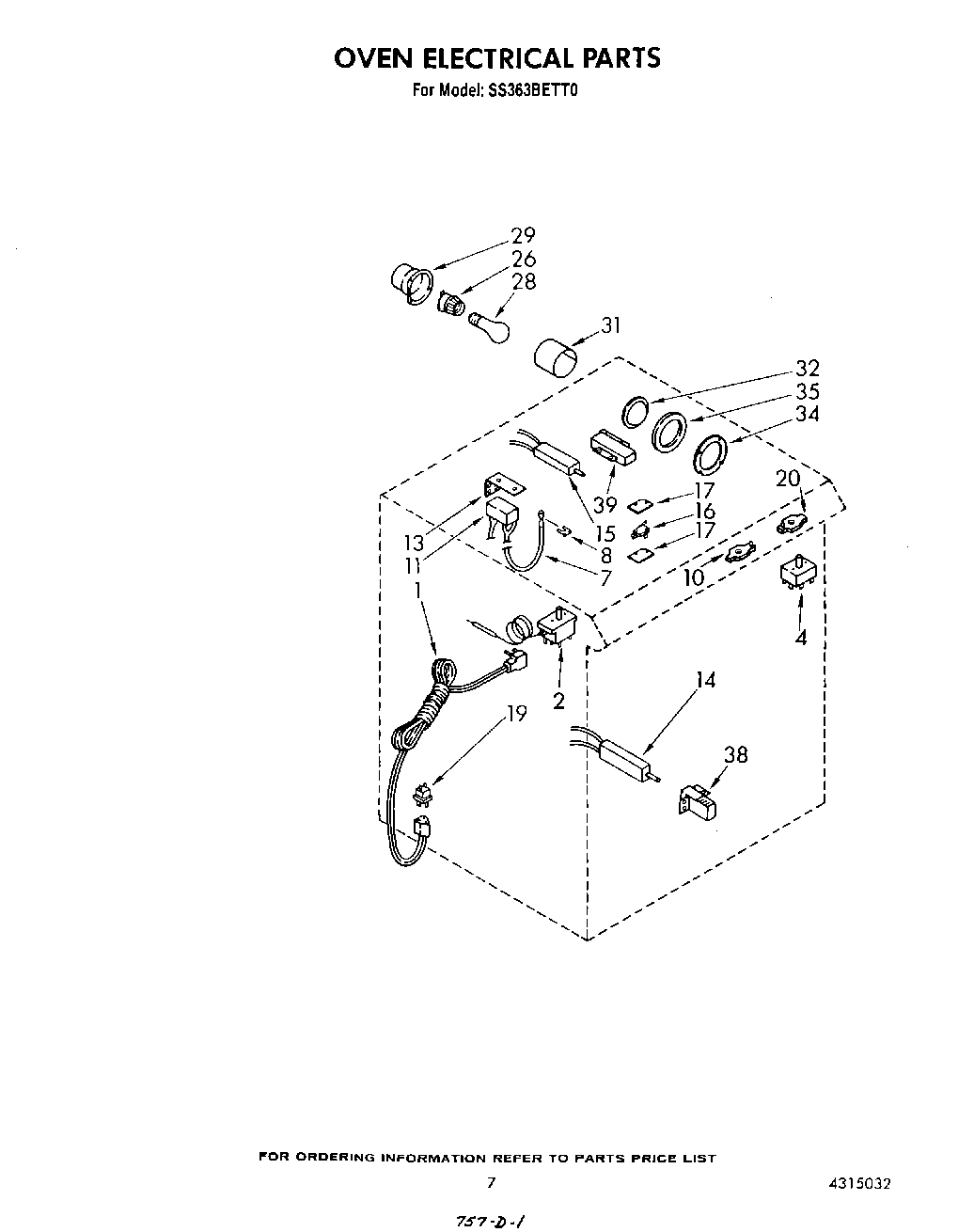

SS363BETT0 05 – OVEN ELECTRICAL

Products

Position	Product
1	Cord, Power
2	Thermostat, Oven
2	Screw, 6-32 X 3/16 (2)
4	Switch, Selector
7	4157608 Whirlpool Surface Igniter
8	WPY0070927 Whirlpool Microwave Clip
10	Switch, Top Burner Actuator (R.F. & R.R.)
11	Module, Spark
13	Bracket, Spark Module
14	786324 Whirlpool Flat Igniter
15	Nut, 6-32 (6)
16	screw, 4-40 x 5/8 (2)
16	Switch, Oven Door Latch
17	Insulator, Switch
19	Plug, Male
20	Switch, Top Burner Actuator (L.F. & L.R.)
26	Socket, Oven Lamp
28	RANGE ONLY 40W 120V APPL BULB
29	Housing, Light
31	Retainer, Insulation
32	Lens, Oven Light
34	Retainer, Oven Light Lens
35	Gasket, Oven Light
38	Bracket, Bake Ignitor
39	Bracket, Broiler Ignitor
