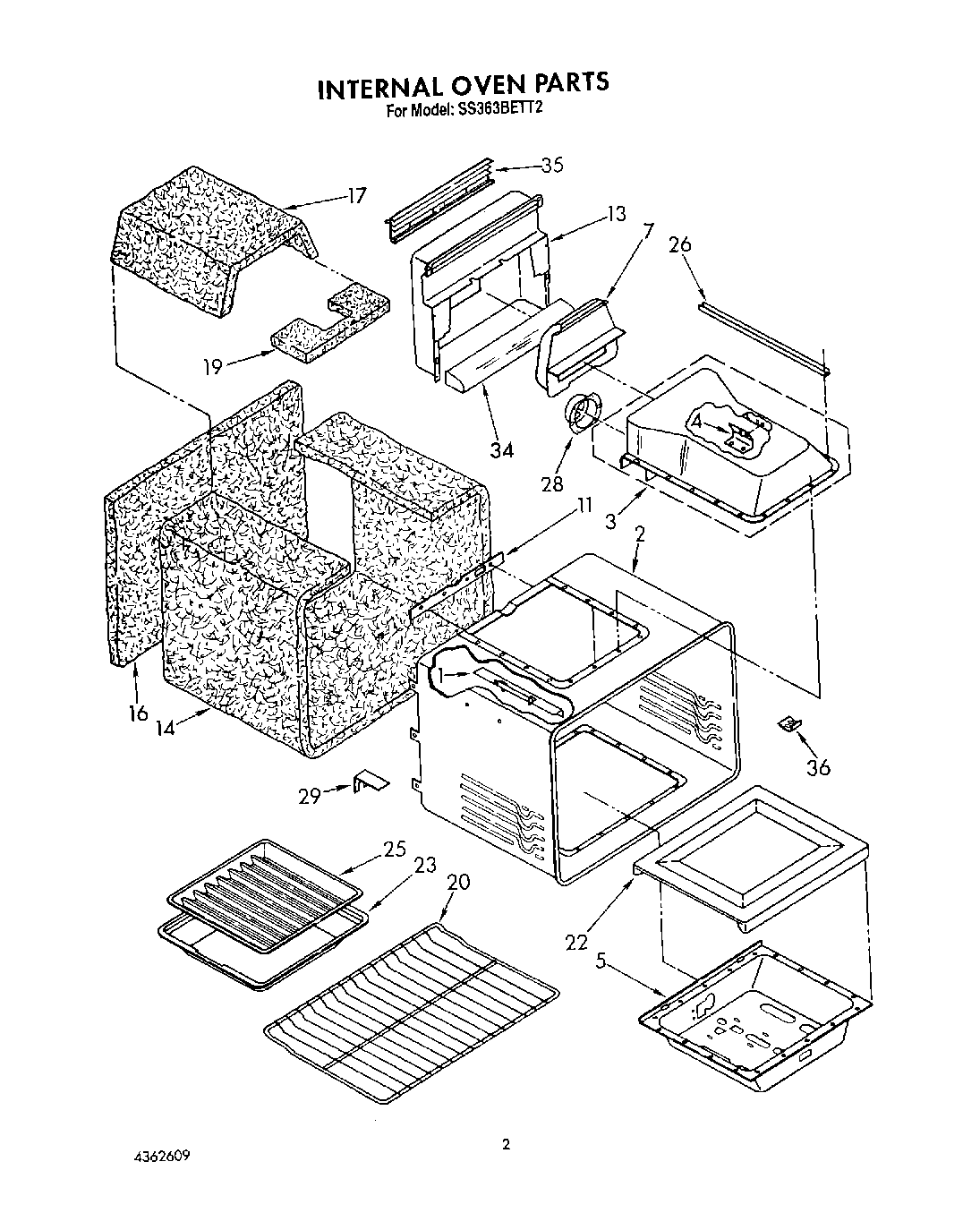

SS363BETT2 02 – INTERNAL OVEN

SS363BETT2 02 – INTERNAL OVEN

Written by

in

SS363BETT2 02 – INTERNAL OVEN

Products

PositionProduct
1Sheild, Thermostat Bulb
2Oven 30“ Self-Clean
3Chamber, Broiler Burner
4Screw (3)
4Bracket, Ignitor
5Burner, Box, Lower
7Flue, Inner
11Gasket, Oven Back
13SWITCH & CABLE MOUNTING ASSY
14WPW10208653 Whirlpool Insulation
20Rack, Oven (2)
22Bottom, Oven
23Pan, Broiler
25Grid, Broiler
26Channel, Broiler Burner
28Duct, Cup
29bracket, oven shell
34Cover, Flue
35Trim, Flue
36Cover, Chip
