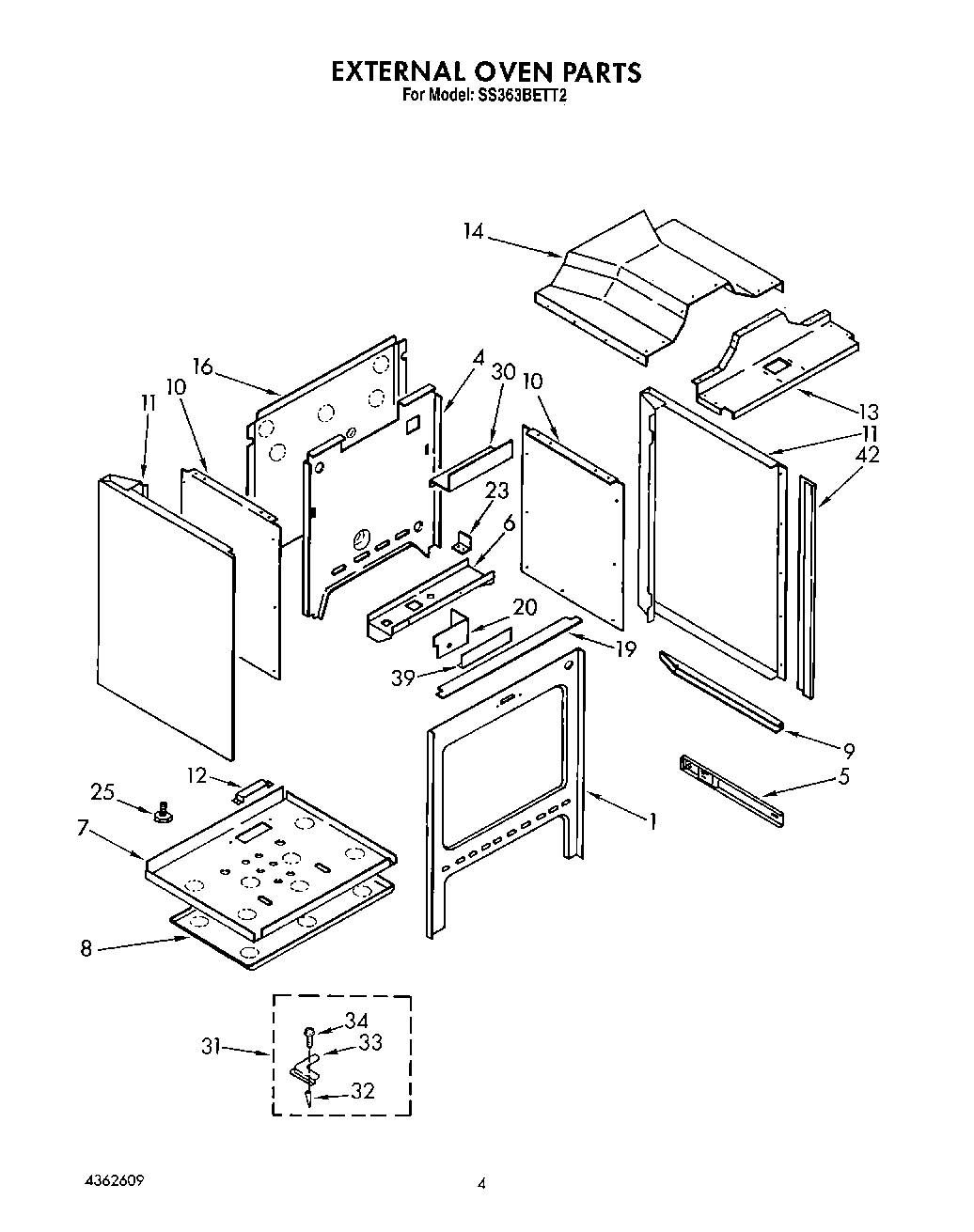

SS363BETT2 03 – EXTERNAL OVEN

Products

Position	Product
1	Frame, Front Not Serviceable
4	retainer, insulation
5	track, storage drawer (left side)
5	track, storage drawer (right side)
6	WP486754 Whirlpool Compactor Screw
6	Nut, 6-32 (6)
7	Retainer, Bottom Insulation
8	Heat Shield,
9	Brace, Bottom (R.H.)
9	brace, bottom (l.h.)
10	Retainer, Insulation (2)
11	Panel, End (2) Front
12	Retainer, Ignitor
13	Retainer, Top Front Insulation
14	Retainer, Top Back Insulation
16	nut, 6-32
16	bushing, snap
16	Panel, Rear
19	Frame, Filler Front
20	Plate, Cover
23	Bracket, Gas Valve (2)
23	WP488130 Whirlpool Air Conditioner Nut
23	WP965173 Whirlpool Dishwasher Screw
25	leg, leveling (4)
30	cover, electrical
31	Anti Tip Kit
32	Anchor (2)
33	Bracket
34	Screw
39	Heat Shield, Clock
42	Trim, Side Panel (Left Hand)
42	Trim, Side Panel (Right Hand)
