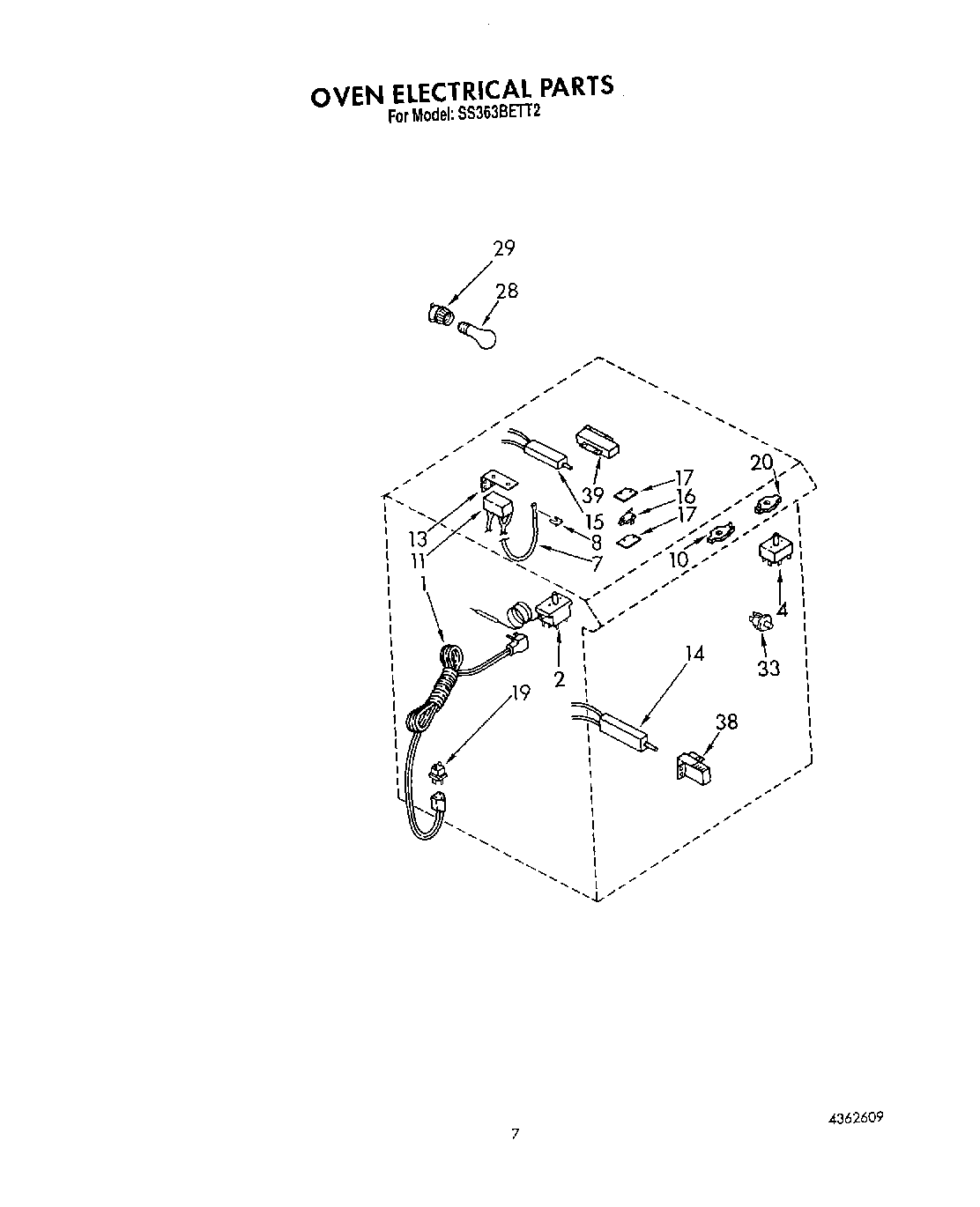

SS363BETT2 05 – OVEN ELECTRICAL

Products

Position	Product
1	Cord, Power
2	Thermostat, Oven
2	Screw, 6-32 X 3/16 (2)
4	Switch, Selector
7	4157608 Whirlpool Surface Igniter
8	WPY0070927 Whirlpool Microwave Clip
10	Switch, Top Burner Actuator (R.F. & R.R.)
11	Spark Module
13	Bracket, Spark Module
14	786324 Whirlpool Flat Igniter
15	Nut, 6-32 (6)
16	screw, 4-40 x 5/8 (2)
16	Switch, Oven Door Latch
17	Insulator, Switch
19	Plug, Male
20	Switch, Top Burner Actuator (L.F. & L.R.)
28	RANGE ONLY 40W 120V APPL BULB
29	WP74011278 Whirlpool Light
33	Switch, Oven Door
38	Bracket, Bake Ignitor
39	Bracket, Broiler Ignitor
