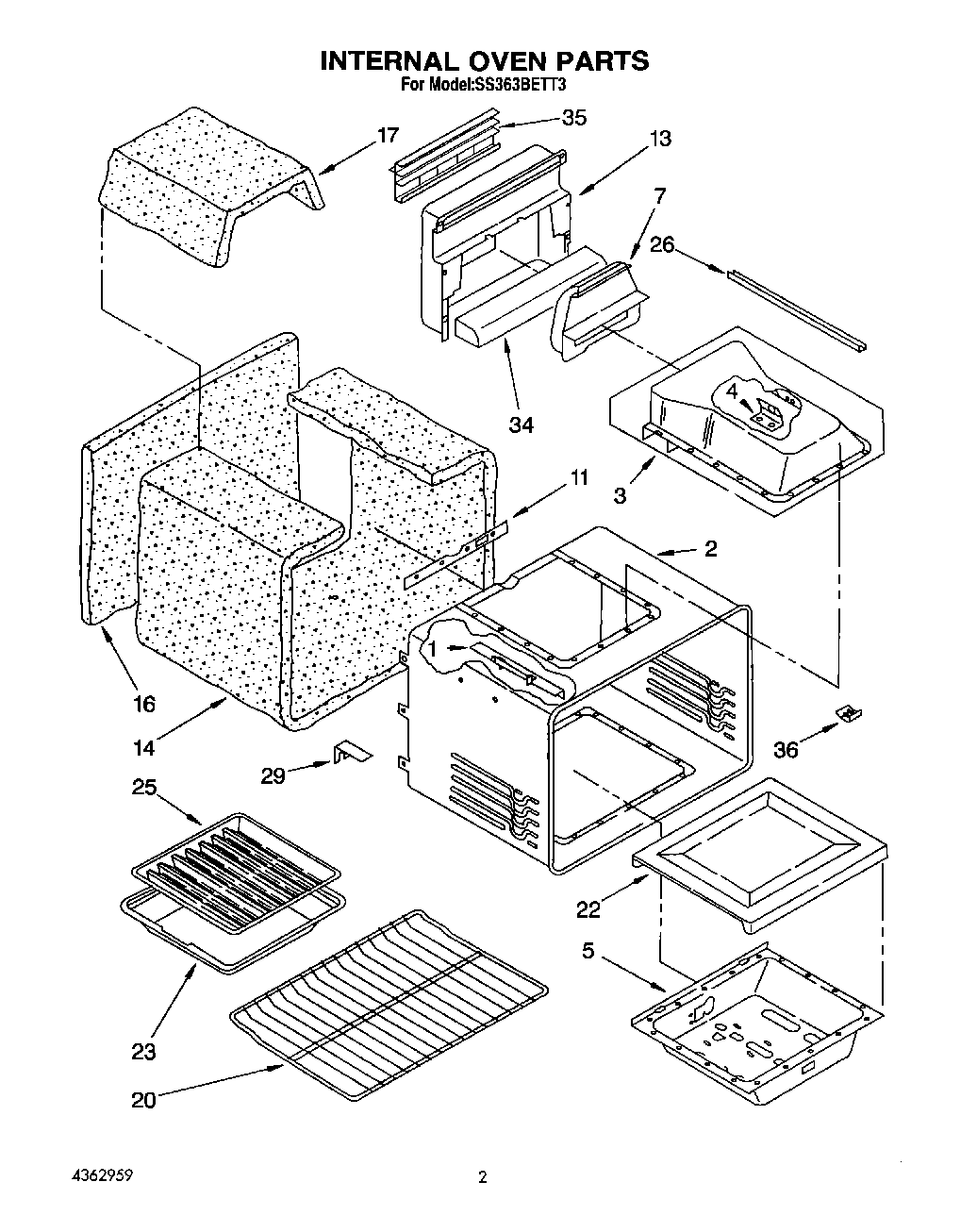

SS363BETT3 02 – INTERNAL OVEN, LIT/OPTIONAL

Products

PositionProduct
Repair Parts List
Instructions, Installation
Guide, Cooking
Guide, Use & Care
1Sheild, Thermostat Bulb
2Oven 30“ Self-Clean
3Chamber, Broiler Burner
4Bracket, Ignitor
4Screw (3)
5Burner, Box, Lower
7Flue, Inner
13Flue, Dillution
14WPW10208653 Whirlpool Insulation
20Rack, Oven (2)
22Bottom, Oven
23Pan, Broiler
25Grid, Broiler
26Channel, Broiler Burner
29bracket, oven shell
34Cover, Flue
35Trim, Flue
36Cover, Chip
