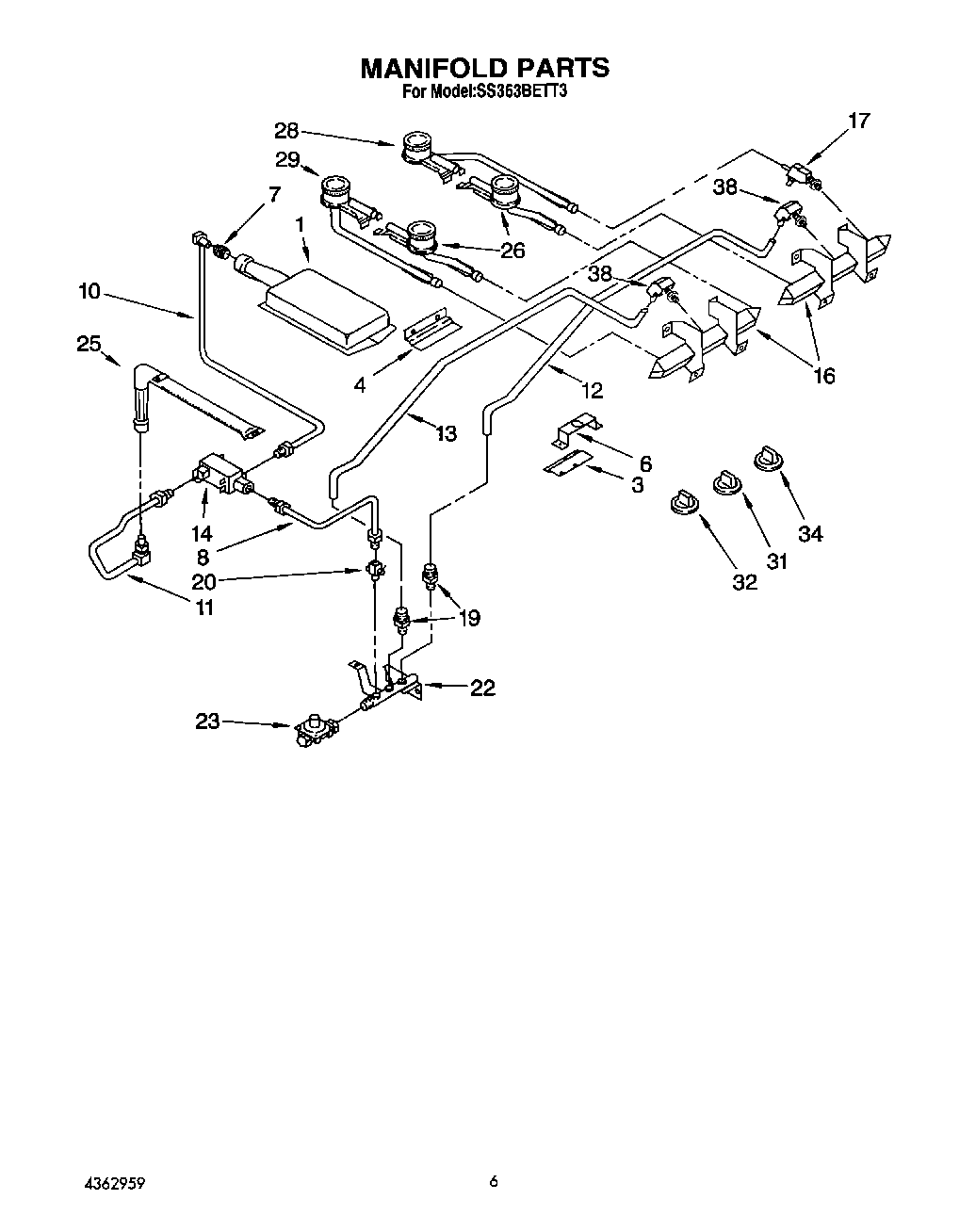

SS363BETT3 04 – MANIFOLD

Products

PositionProduct
1Nut, 6-32 (6)
1Burner, Ultra Ray Broiler
3Bracket, Ignitor
4Bracket, Burner Mounting
6Bracket, Burner
7Orifice (No.50 Nat. Gas)
7LP Gas No. 58
8Tubing, (Inlet To Gas Valve)
10Orifice & Tubing Assembly (Gas Valve To Ulta Ray Burner)
11hood & tubing assembly (gas valve to lower oven burner)
11Nut, Lock
12Tubing, Inlet
13Tubing (Inlet To Manifold) (Left Hand)
14Valve, Dual Gas Valve
16Manifold (2)
17Valve, Top Burner (4)
19Fitting
20Valve, Shut Off
22Inlet, Gas
23Regulator, Pressure
25Oven Burner, Lower
26Top Burner, Front (2)
28Top Burner, R.R.
29Top Burner, L.R.
31Knob, Top Burner (4)
32Knob, Oven Thermostat
34Knob, Selector
38Elbow, Manifold
