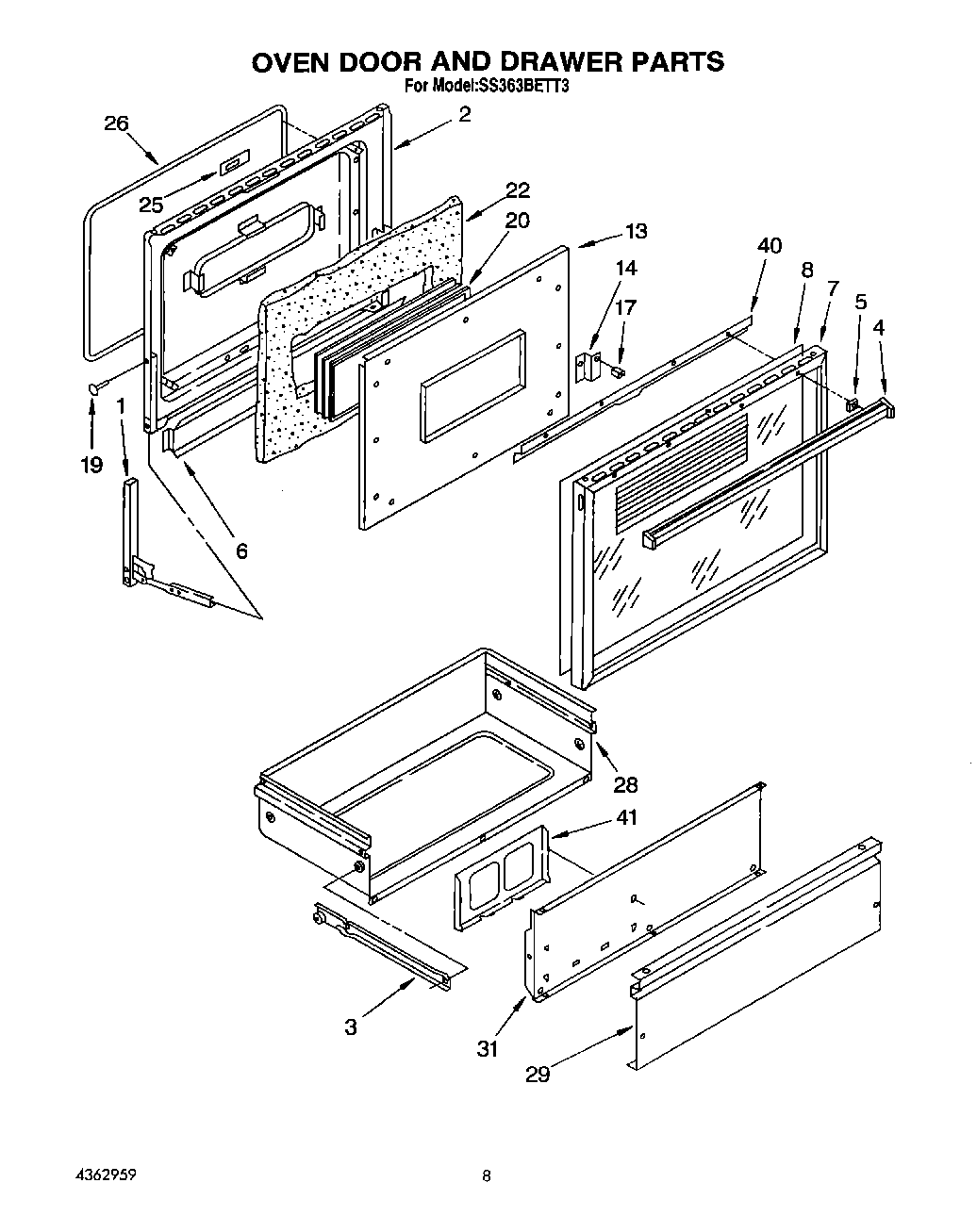

SS363BETT3 06 – OVEN DOOR AND BROILER

Products

PositionProduct
1Hinge, Oven Door (Left Side)
1Hinge, Oven Door (R.H.)
2Screw, 8-32 X 5/8 (4)
2Liner, Oven Door
2WP308685 Whirlpool Microwave Screw
2WP488130 Whirlpool Air Conditioner Nut
2WP965173 Whirlpool Dishwasher Screw
3runner (l.h.)
3Runner (R.H.)
4Handle
5Spacer, Handle (2)
6Baffle, Heat
7Frame
8Panel, Black Glass
13Retainer, Insulation
14bracket, glass support (4)
17Bumper, Window (2)
19Pin-Hinge (2)
20Bumper, Rubber
22Insulation, Door
25Plate, Latch
26gasket assembly
28Wrapper, Storage Drawer
29Panel, Drawer (Black)
31Liner, Door Panel
40Baffle, Air
41Rack, Literature
