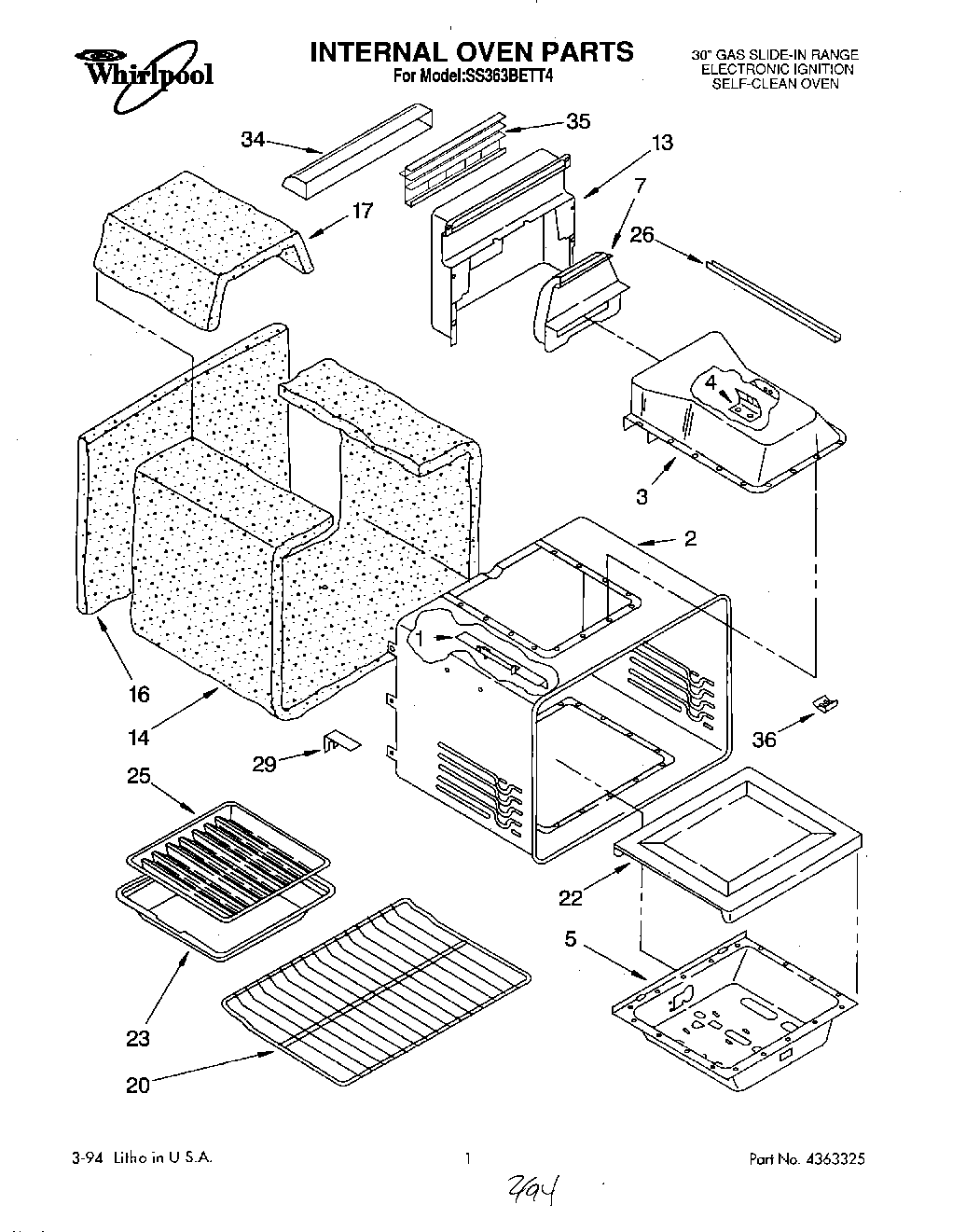

SS363BETT4 01 – INTERNAL OVEN, LITERATURE

SS363BETT4 01 – INTERNAL OVEN, LITERATURE

Written by

in

SS363BETT4 01 – INTERNAL OVEN, LITERATURE

Products

PositionProduct
Guide, Use & Care
Guide, Cooking
Instructions, Installation
1Sheild, Thermostat Bulb
2Oven 30“ Self-Clean
3Chamber, Broiler Burner
4Screw (3)
4Bracket, Ignitor
5Burner, Box, Lower
7Flue, Inner
13Flue, Dillution
14WPW10208653 Whirlpool Insulation
20Rack, Oven (2)
22Bottom, Oven
23Pan, Broiler
25Grid, Broiler
26Channel, Broiler Burner
29bracket, oven shell
34Cover, Flue
35Trim, Flue
36Cover, Chip
