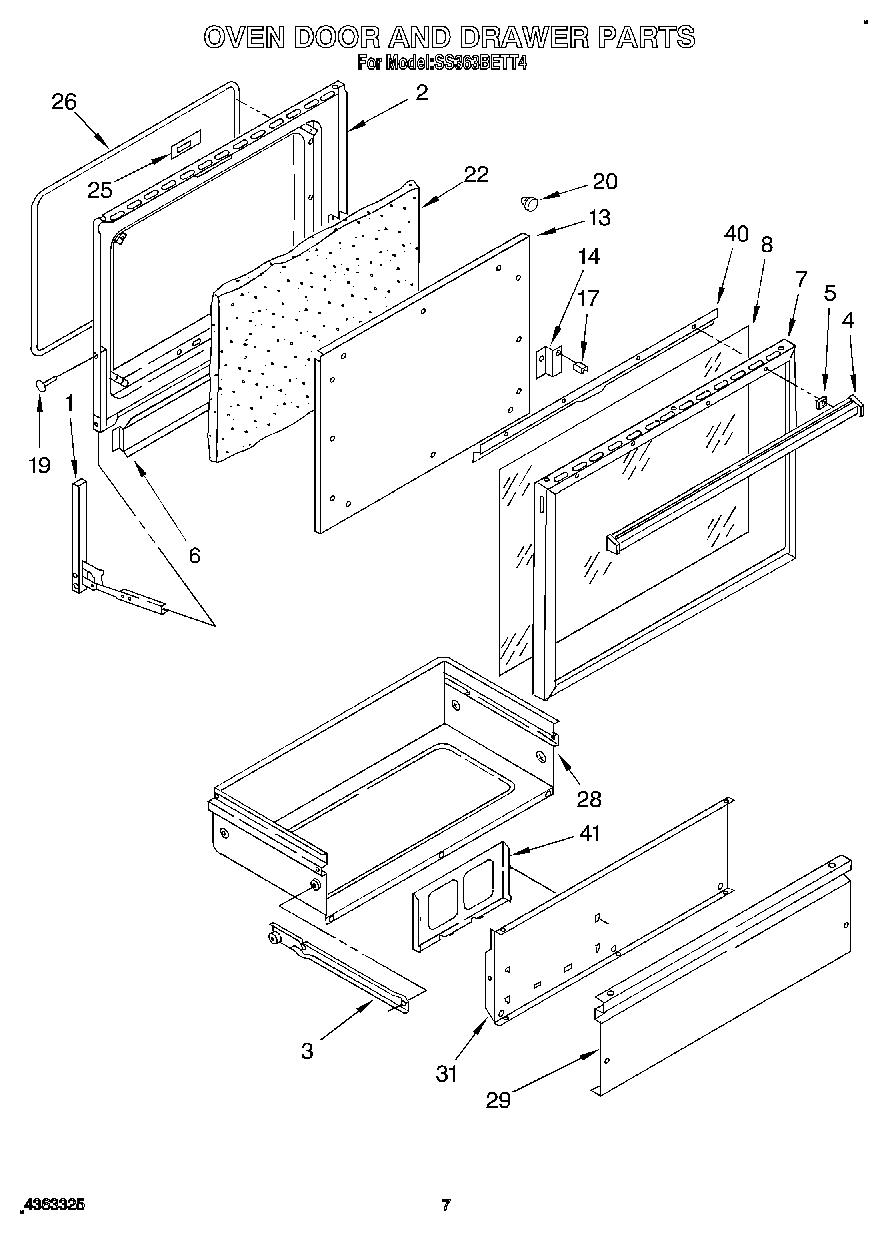

SS363BETT4 05 – OVEN DOOR AND DRAWER

Products

Position	Product
1	Hinge, Oven Door (Left Side)
1	Hinge, Oven Door (R.H.)
2	WP965173 Whirlpool Dishwasher Screw
2	Screw, 8-32 X 5/8 (4)
2	Liner, Oven Door
2	WP308685 Whirlpool Microwave Screw
2	WP488130 Whirlpool Air Conditioner Nut
3	Runner, Drawer (Screw, 8-18 x 3/8 (4))
3	Runner, Drawer (Right Hand)
3	Runner, Drawer (Left Hand)
4	Handle
5	Spacer, Handle (2)
6	Baffle, Heat
7	Frame
8	Panel, Black Glass
13	Retainer, Insulation
14	bracket, glass support (4)
17	Bumper, Window (2)
19	Pin-Hinge (2)
20	Bumper, Rubber
22	Insulation, Door
25	Plate, Latch
26	gasket assembly
28	Drawer, Storage
29	Panel, Drawer (Black)
31	Liner, Door Panel
40	Baffle, Air
41	Rack, Literature
