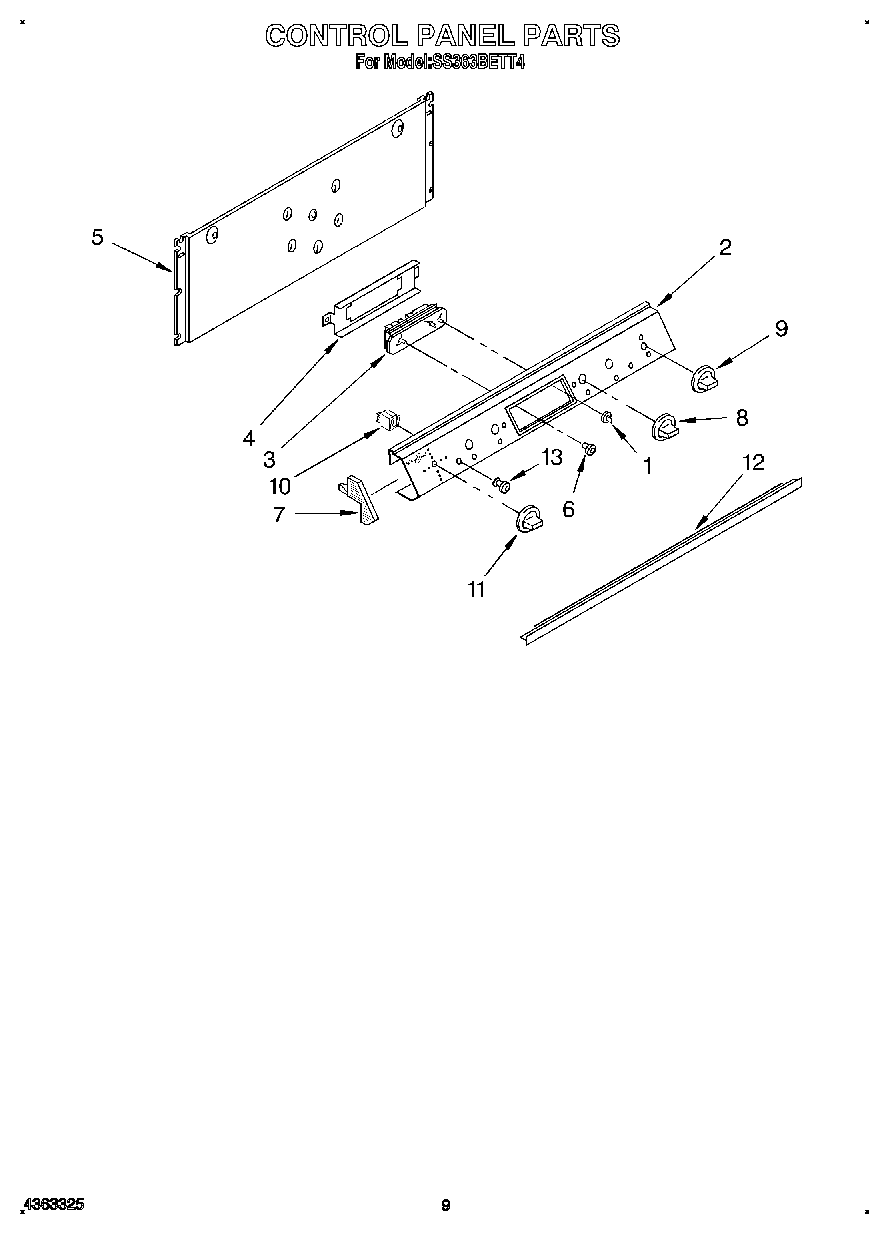

SS363BETT4 06 – CONTROL PANEL

Products

Position	Product
1	Knob, Clock
2	Panel, Control
3	Timer
4	Mounting Bracket Timer
5	Heat Shield
6	Bushing, Clock
7	End Cap (Left Side)
7	End Cap (Right Side)
8	Knob, Top Burner (4)
9	Knob, Selector
10	Light, Indicator (3)
11	Knob, Oven Thermostat
12	Filler, Control Panel
13	Lens, Indicator Light (2)
