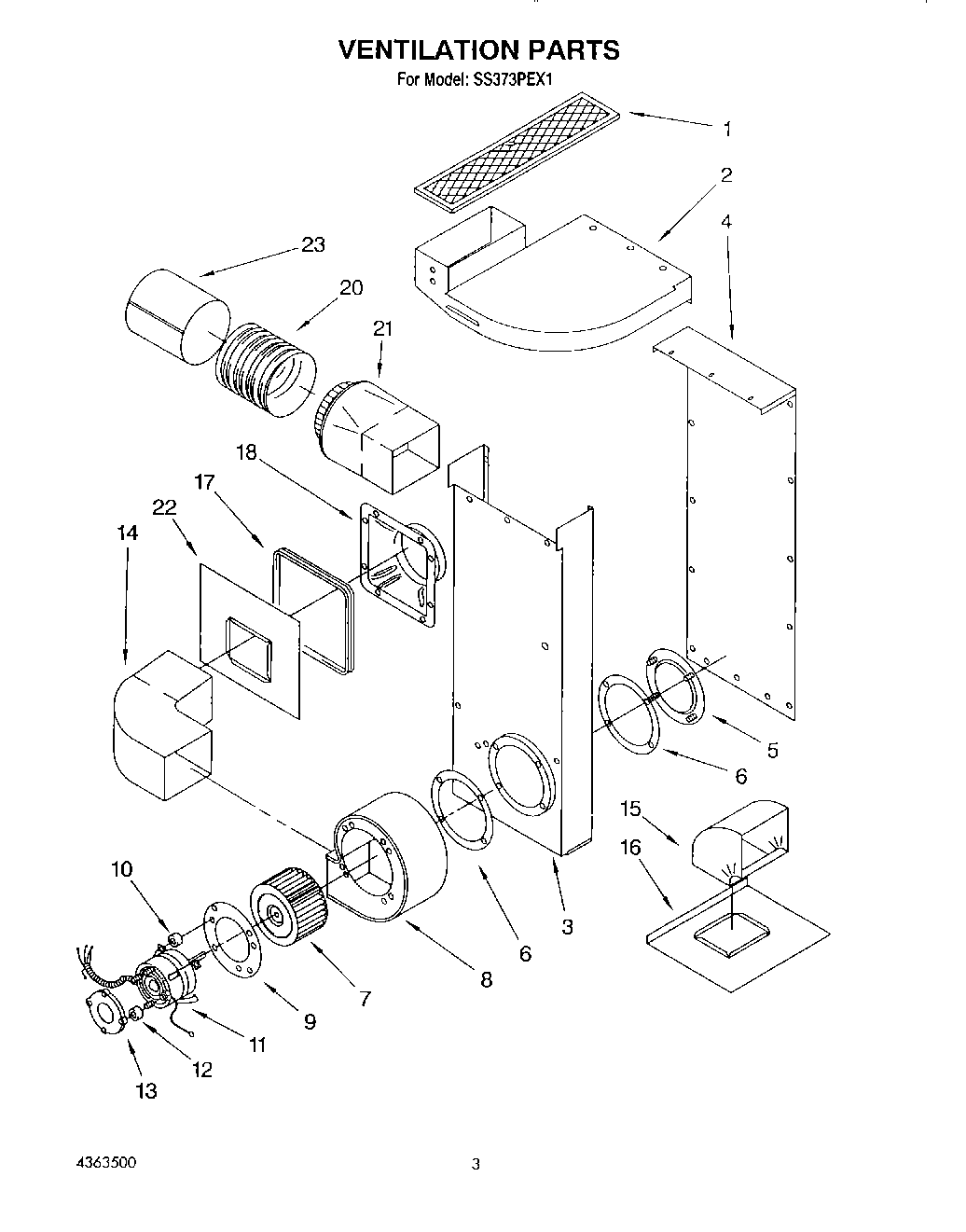

SS373PEX1 02 – VENTILATION, LITERATURE

Products

PositionProduct
Guide, Use & Care
Installation Instructions
1Filter
2Plenum Top
3Plenum Rear
4Cover, Plenum Rear
5Orifice
6Gasket, Motor Mounting
7Wheel, Fan
8Housing Blower
9Plate, Motor Mounting
10Grommet, Motor Mounting (8)
11Motor, 60 Hz.
12Spacer, Motor Cover (4)
13Cover, Motor
14Duct, Wall
15Duct, Floor
16Plate, Duct-Floor
17Gasket, Transition Wall-Floor
18Transitior, Wall
20Duct Side
21Transition 6“
22Plate, Duct Wall
23WP488826 Whirlpool Nut
23Bolt, 10-24 X 3/4 (3)
23Washer (3)
23Screw, 8 X 3/8 (14)
23Tube, Transition
