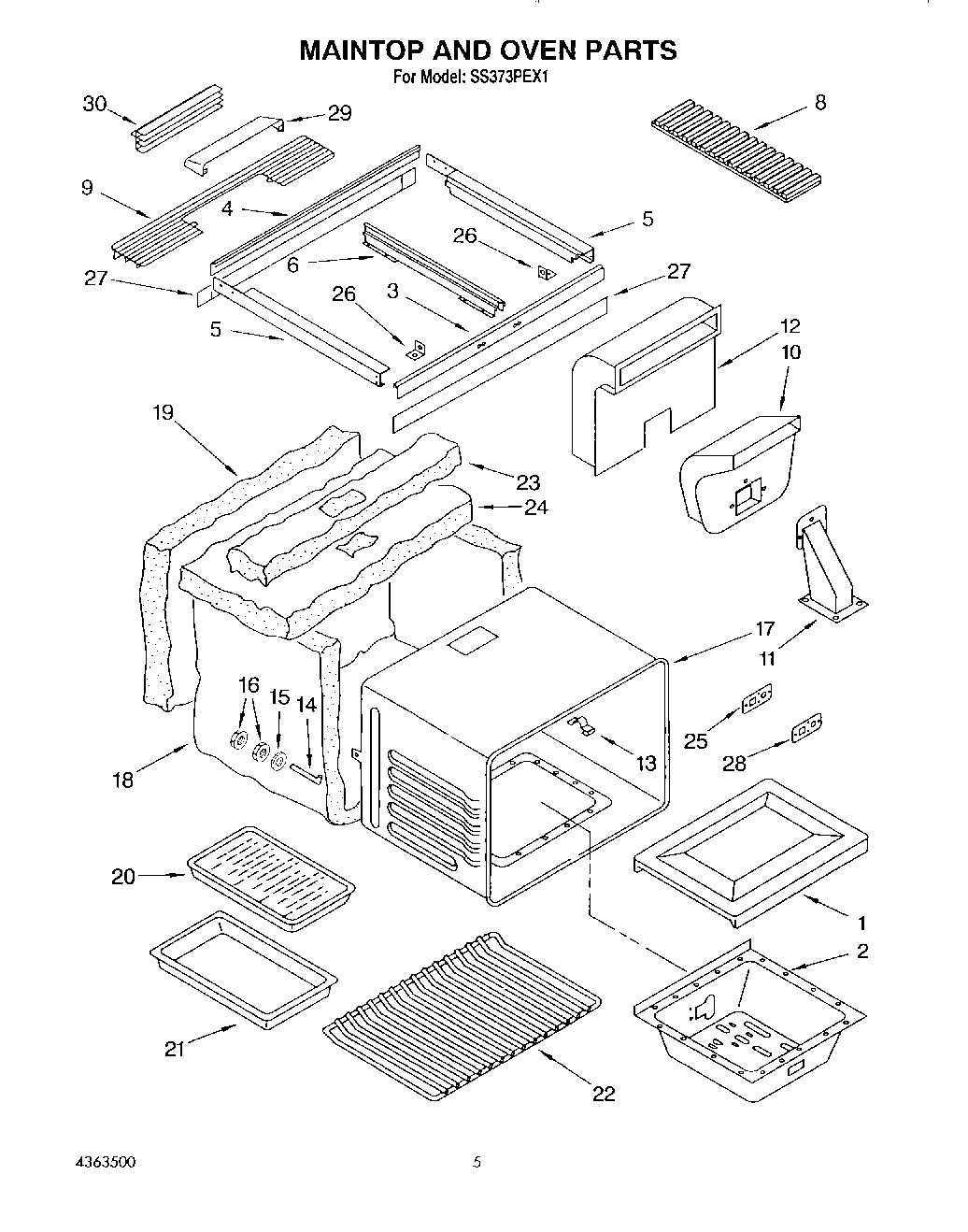

SS373PEX1 03 – MAINTOP AND OVENadmin2025-04-26T11:23:46+00:00SS373PEX1 03 – MAINTOP AND OVEN
Products
| Position | Product |
|---|
| 1 | Bottom, Oven |
| 2 | Burner, Box, Lower |
| 3 | Frame, Maintop Front |
| 4 | Frame, Maintop Rear |
| 5 | Frame, Maintop (L.H. Side) |
| 5 | Frame, Maintop (R.H. Side) |
| 6 | Frame, Maintop Center |
| 8 | Cover, Vent |
| 9 | Backrail, Lo |
| 10 | Flue, Inner |
| 11 | Gasket, Vent |
| 11 | Vent |
| 12 | Flue, Dilution |
| 13 | Cover, Chip |
| 14 | Hook Bolt, Oven Shell |
| 15 | Washer |
| 16 | Nut, Hex 10-32 |
| 17 | Oven Shell |
| 18 | Insulation, Wrapper |
| 19 | Insulation, Back |
| 20 | Grid, Broiler |
| 21 | Pan, Broiler |
| 22 | Rack, Oven (2) |
| 23 | Insulation, Door Latch |
| 24 | Insulation, Top |
| 25 | Gasket, Plate |
| 26 | Bracket, Frame Trim |
| 27 | Support, Maintop (Front) |
| 27 | Support, Maintop (Rear) |
| 28 | Plate, Burner Broil |
| 29 | Trim, Flue |
| 30 | Cover, Flue |
