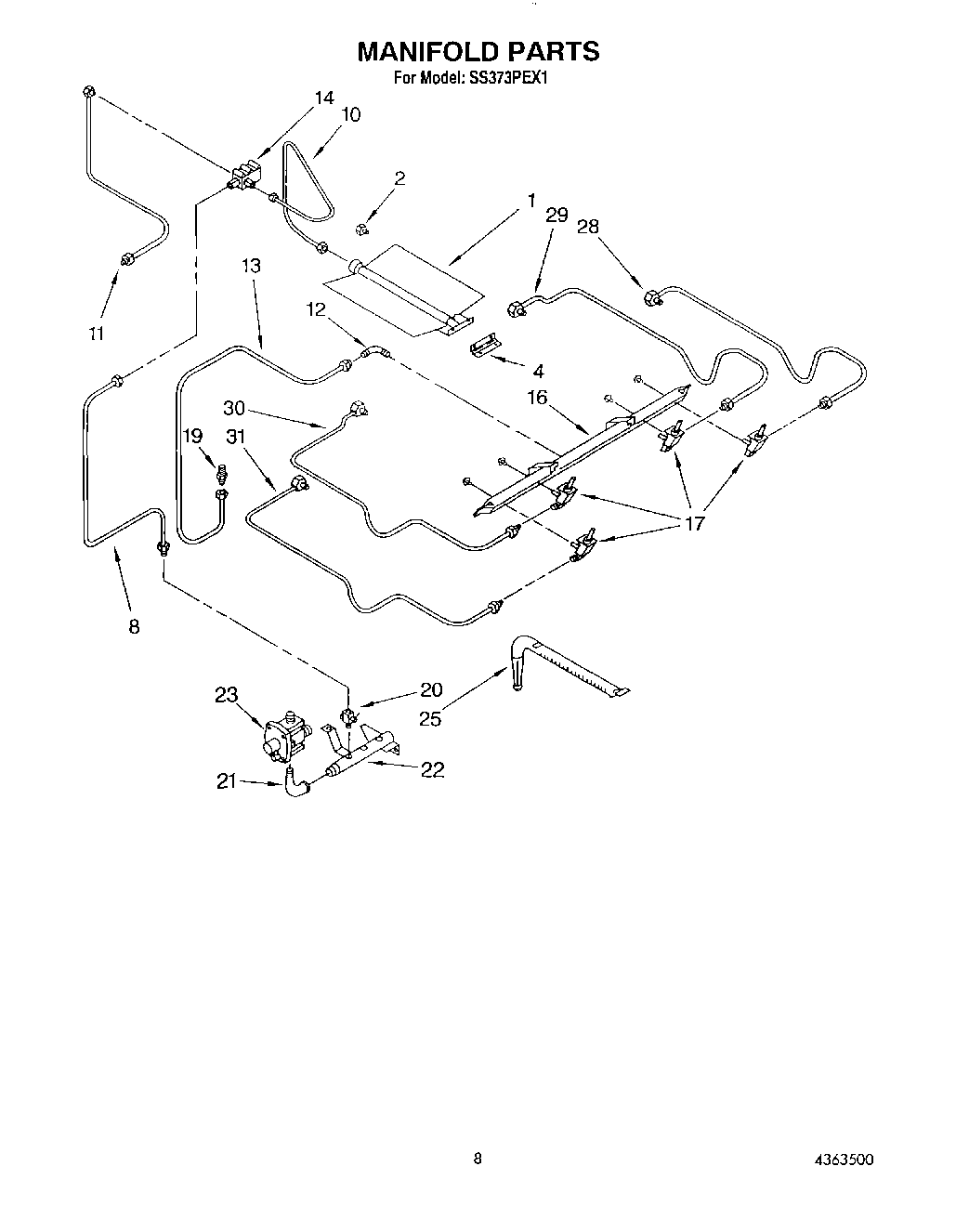

| 1 | Burner, Broiler |
| 2 | Orifice, Broiler |
| 4 | Support, Burner Mounting |
| 8 | Tubing (Inlet To Gas Valve) |
| 10 | Tubing Assembly (Gas Valve To Broiler Burner) |
| 11 | Nut, Lock |
| 11 | Hood & Tubing Assembly (Gas Valve To Lower Oven Burner) |
| 12 | Elbow, Manifold |
| 13 | Tubing, Inlet To Manifold |
| 14 | Valve, Dual Gas |
| 16 | Manifold (2) |
| 17 | Valve, Burner (Right (2)) |
| 17 | Valve, Burner (Left (2)) |
| 19 | Fitting |
| 20 | Valve, Shut Off |
| 21 | Elbow |
| 22 | Inlet |
| 23 | Regulator, Pressure |
| 25 | Burner, Oven |
| 28 | Tubing R.F. |
| 29 | Tubing R.R. |
| 30 | Tubing L.R. |
| 31 | Tubing L.F. |
