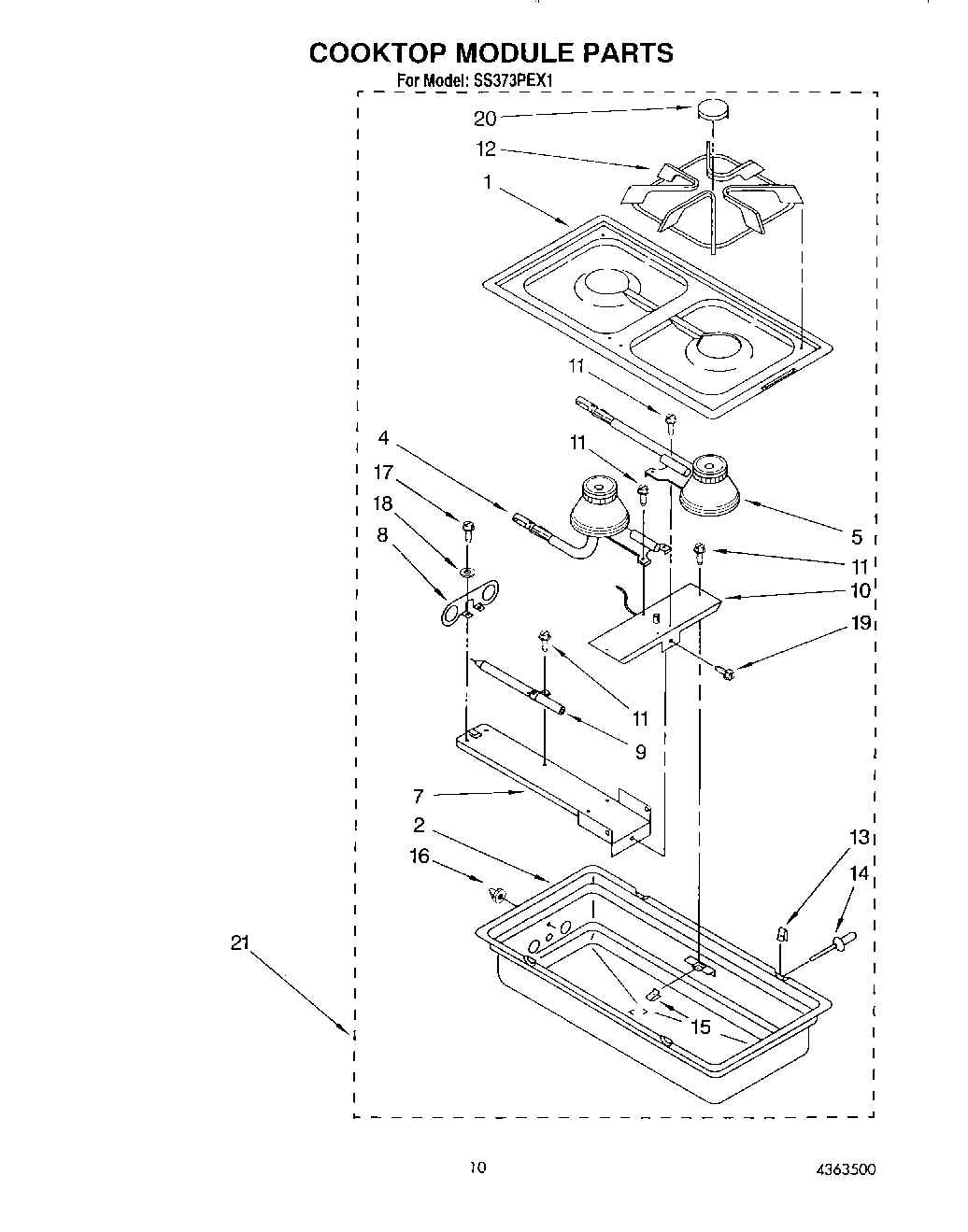

SS373PEX1 07 – COOKTOP MODULE

Products

Position	Product
1	Module Top
2	Module Pan
4	Burner, Front (Short Venturi) (Black)
5	Burner, Rear (Long Venturi) (Black)
7	Support, Burner Base
8	Support, Venturi
9	Connector, Electrode
10	Electrode & Cap Assembly
11	WP489128 Whirlpool Refrigerator Screw
12	Grate, Top Burner (Black)
13	Clip, Top Mounting (4)
14	Pop Rivet (4)
15	U-Clip (2)
16	BOX ASSEMBLY
17	Screw (4) No.8-32 x 3/18
18	Lockwasher No.8
19	WPW10068250 Whirlpool Dishwasher Screw
20	Burner Cap
21	Module Complete
