SS373PEX1 08 – GRILLE MODULE
Written by
in

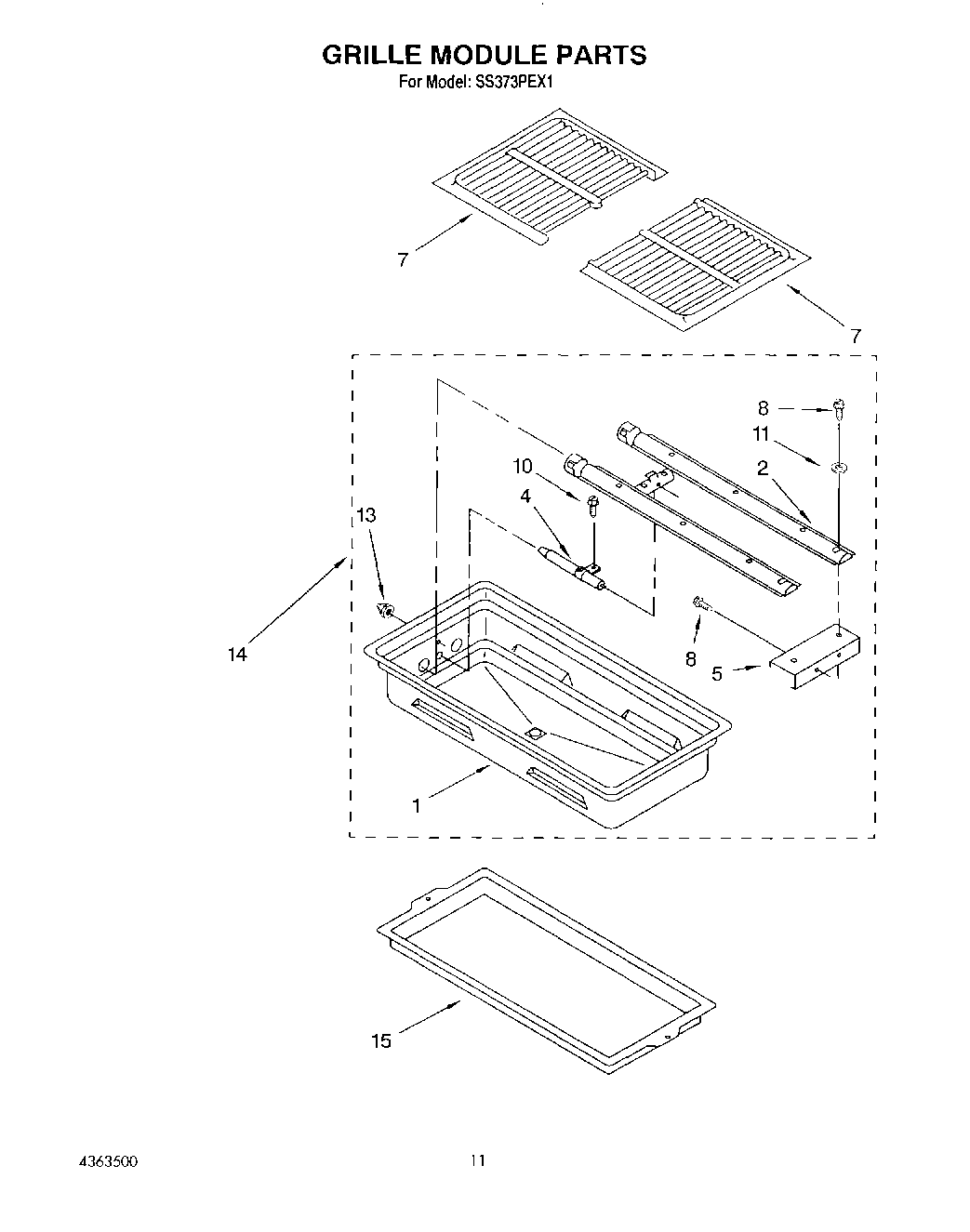

SS373PEX1 08 – GRILLE MODULE
Products
Position
Product
1
Pan, Grille
2
Burner, Grille
4
Electrode, Grille
5
Support, Grille Burner
7
Grille (2)
8
WP965173 Whirlpool Dishwasher Screw
10
Screw (4) No.8-32 x 3/18
11
Lockwasher No.8
13
BOX ASSEMBLY
14
Grille Module,
15
Pan, Grease
←
