SS373PEXT0 04 – MAINTOP AND OVEN

SS373PEXT0 04 – MAINTOP AND OVEN

Written by

in

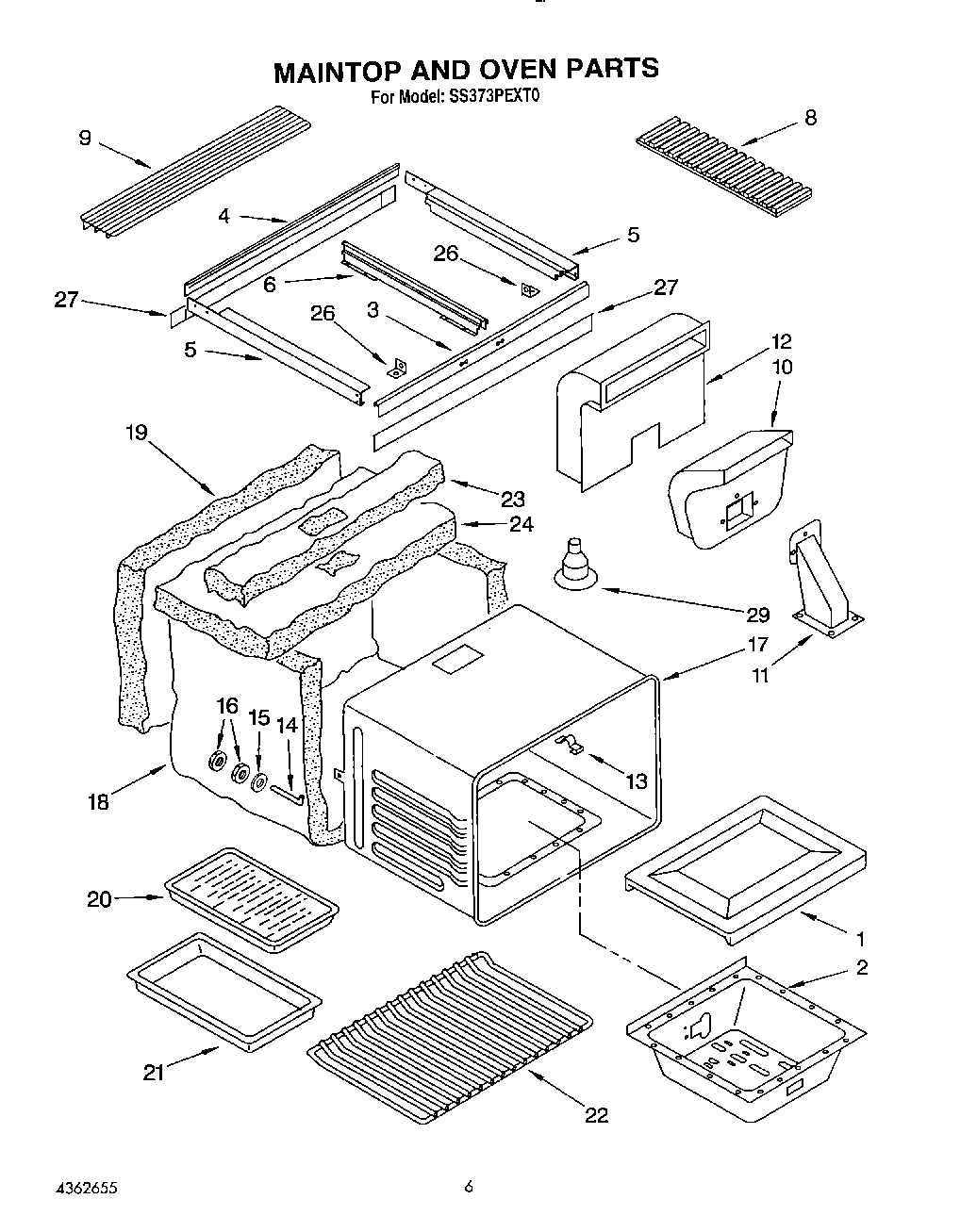

SS373PEXT0 04 – MAINTOP AND OVEN

Products

PositionProduct
1Bottom, Oven
2Burner, Box, Lower
3Frame, Maintop Front
4Frame, Maintop Rear
5Frame, Maintop (L.H. Side)
5Frame, Maintop (R.H. Side)
6Frame, Maintop Center
8Cover, Vent
9Backrail, Lo
10Flue, Inner
11Gasket, Vent
11Vent
12Flue, Dilution
13Cover, Chip
14Hook Bolt, Oven Shell
15Washer
16Nut, Hex 10-32
17Oven Shell
18Insulation, Wrapper
19Insulation, Back
20Grid, Broiler
21Pan, Broiler
22Rack, Oven (2)
23Insulation, Door Latch
24Insulation, Top
26Bracket, Frame Trim
27Support, Maintop (Front)
27Support, Maintop (Rear)
29Trim, Flue
