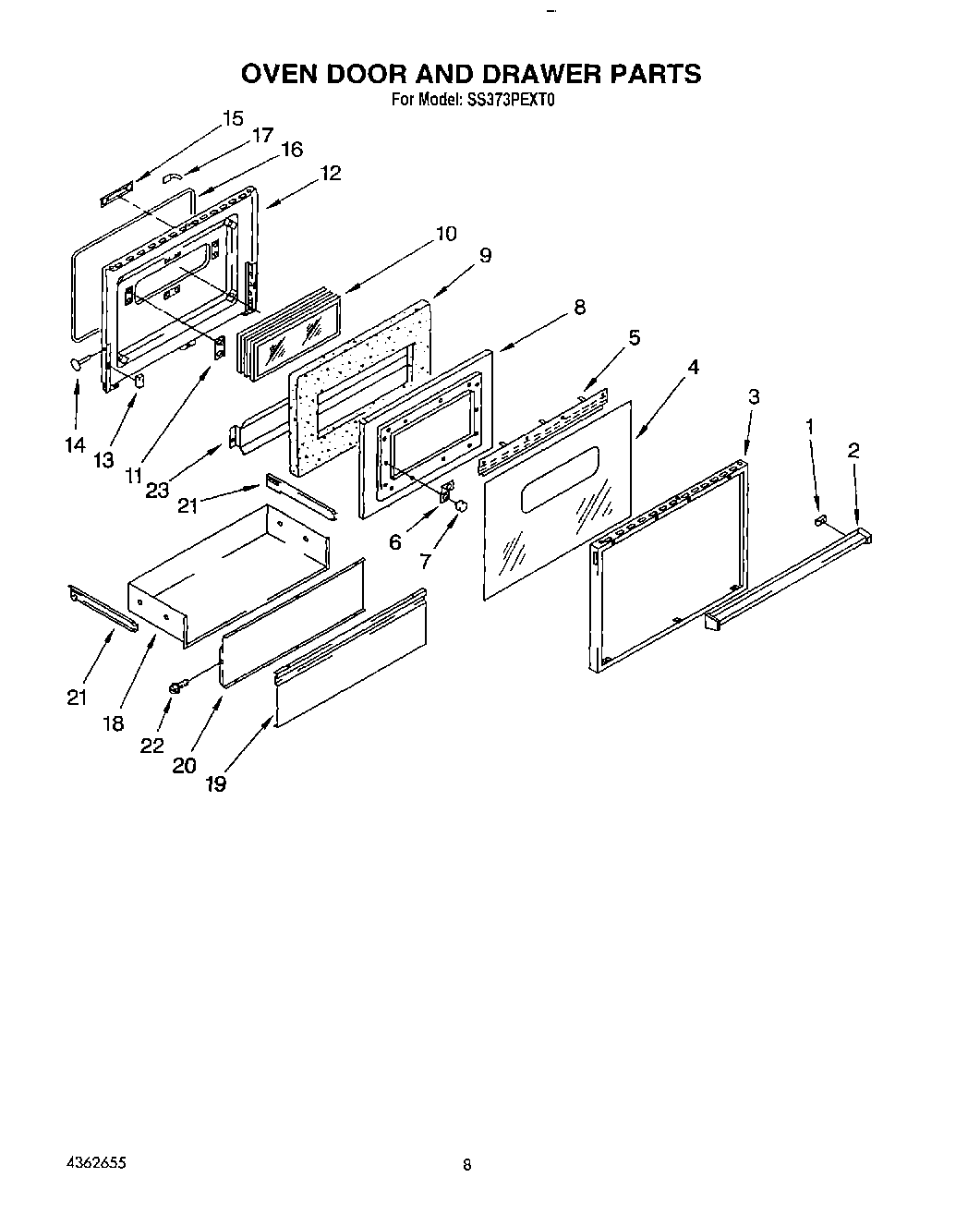

SS373PEXT0 05 – OVEN DOOR AND DRAWER

Products

Position	Product
1	Handle
2	Spacer, Handle (2)
3	Frame
4	Panel, Black Glass
5	Baffle, Air
6	bracket, glass support (4)
7	Bumper, Rubber
8	Retainer, Insulation
9	Insulation, Door
10	Window Assembly
11	Retainer, Window (4)
12	Pad, Oven Door
13	Bumper, Window (2)
14	Pin, Hinge (2)
15	Plate, Latch
16	gasket assembly
17	Clip, Speed (14)
18	Drawer
19	Panel, Drawer (Black)
20	Liner, Front
21	Runner (L.H.)
21	Runner (R.H.)
22	WP965173 Whirlpool Dishwasher Screw
23	Baffle, Heat
