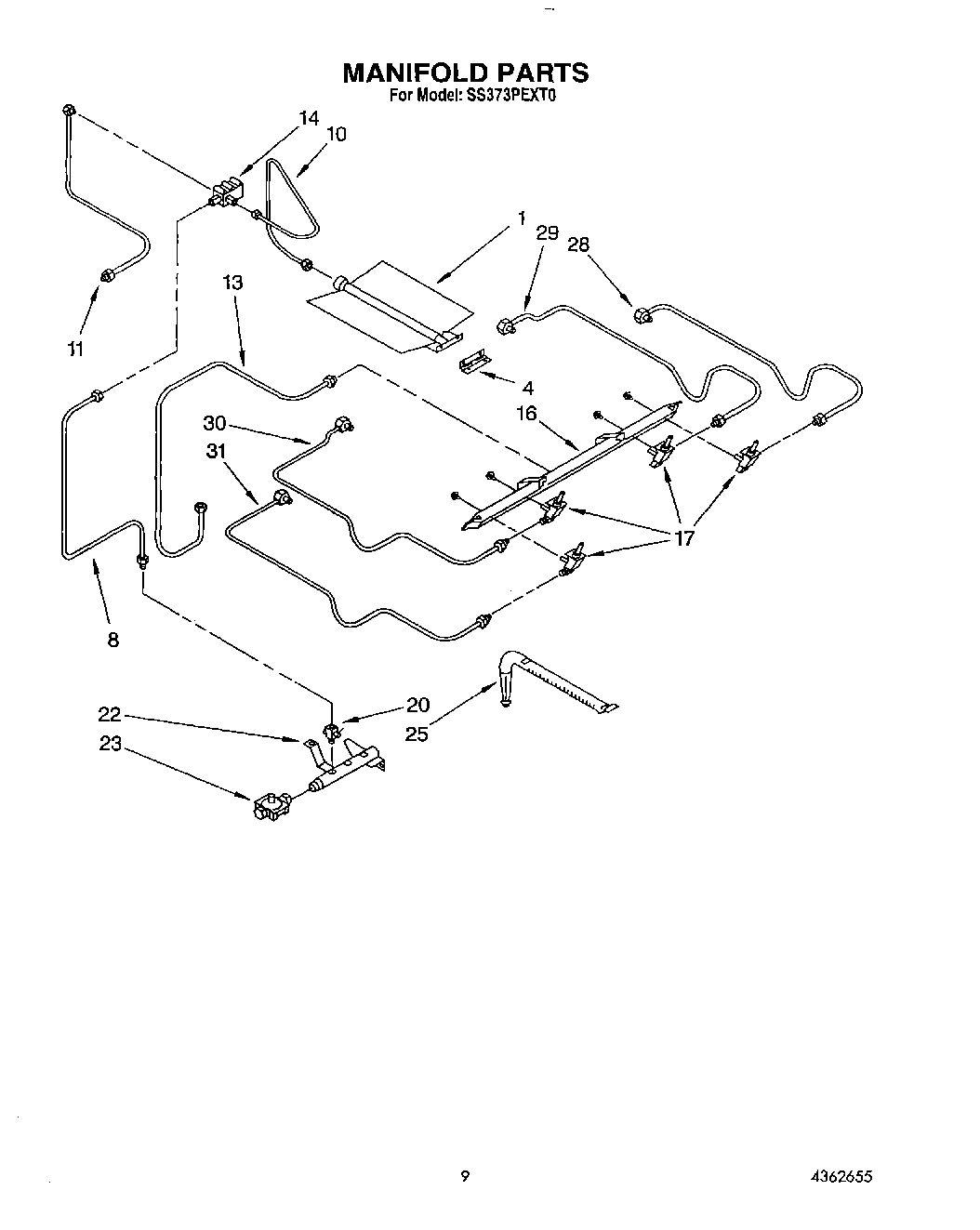

SS373PEXT0 06 – MANIFOLD

Written by

Products

Position	Product
1	Burner, Broiler
4	Bracket, Burner Mounting
10	Tubing Assembly (Gas Valve To Broiler Burner)
11	Nut, Lock
11	Hood & Tubing Assembly (Gas Valve To Lower Oven Burner)
13	Tubing, Inlet To Manifold
14	Valve, Dual Gas
16	Manifold (2)
17	Valve, Burner (Right (2))
17	Valve, Burner (Left (2))
18	Tubing (Inlet To Gas Valve)
19	Fitting
20	Valve, Shut Off
22	Inlet
23	Regulator, Pressure
25	Burner, Oven
28	Tubing L.R.
29	Tubing L.F.
30	Tubing R.F.
31	Tubing R.R.
