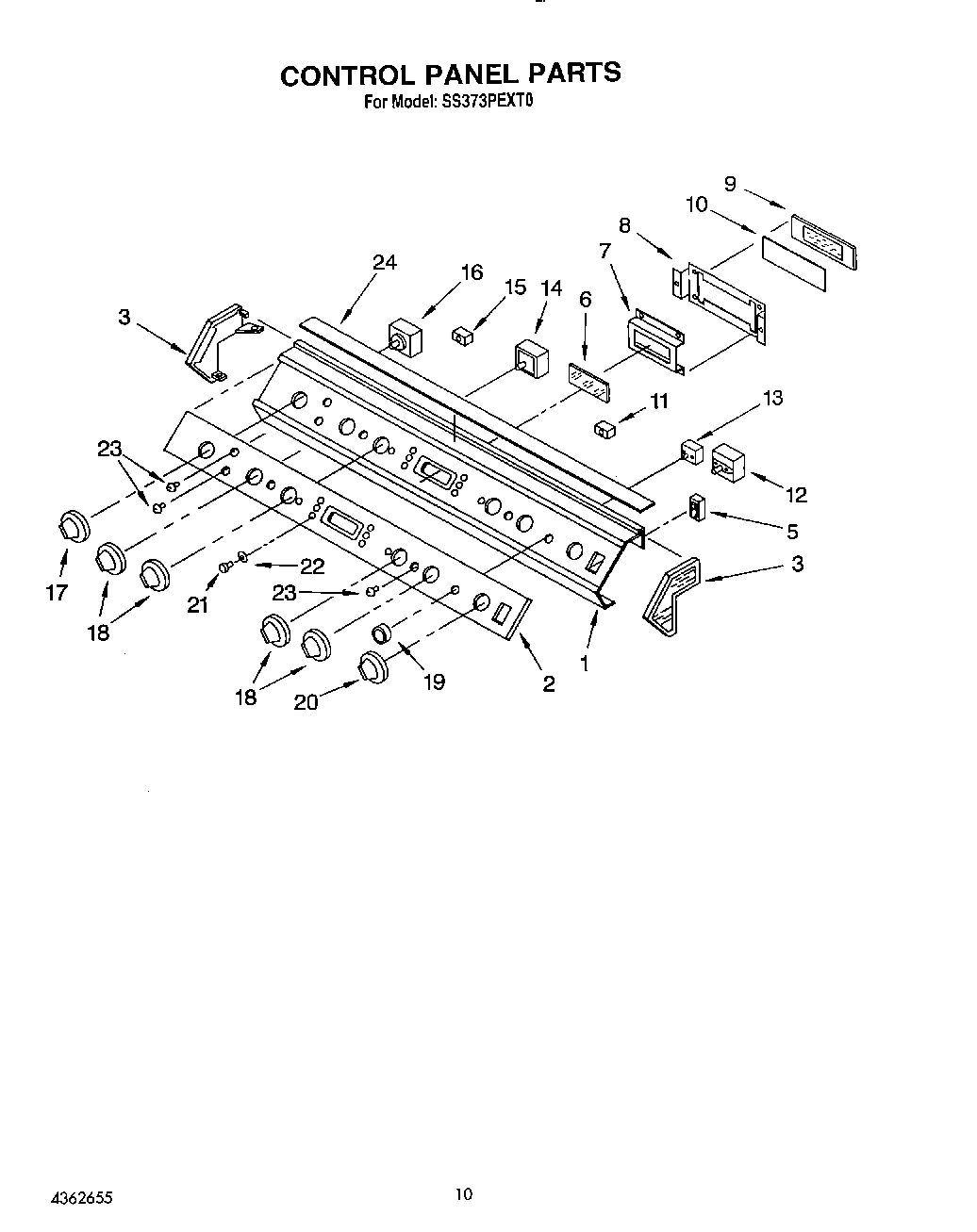

SS373PEXT0 07 – CONTROL PANEL

Products

PositionProduct
1Control Panel Panel
1Glass, Insert
2Inlay, Control
3End Cap (Left Hand)
3End Cap (Right Hand)
5WP4314961 Whirlpool Lite Switch
6Glass, Clock
7Bracket, Clock Glass
8Screw, Bracket
8Bracket, Clock
9Clock/Timer
10Lens- Clock
11Light, Indicator (3)
12Switch, Selector
13Switch, Fan
13Screw, 6-32 X 3/16 (2)
14WP4330739 Whirlpool Igniter Switch
15Light, Indicator Oven
16Thermostat
16Screw
17Knob, Thermostat
18Knob, Surface
19Knob, Fan Switch
20Knob, Selector Switch
21Button, Clock
22Bushing, Clock Button
23Lens, Indicator Light
24Insert, Control Panel
