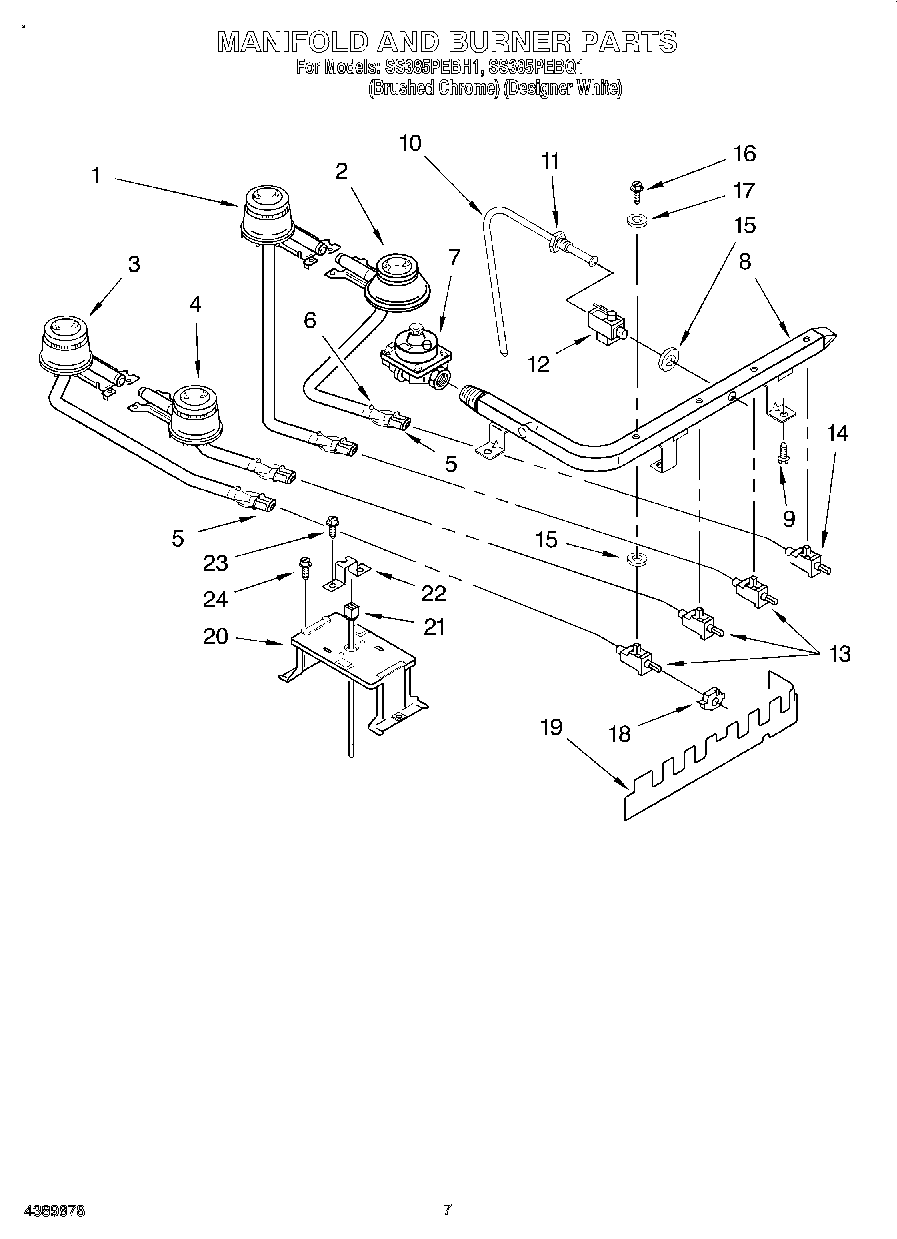

SS385PEBQ1 04 – MANIFOLD AND BURNER

Products

Position	Product
1	Burner, Right Rear
2	Burner, Right Front
3	Burner, Left Rear
4	Burner, Left Front
5	Shutter, Air
6	Screw, Shutter
7	Regulator, Pressure
8	Pipe, Manifold
10	Tubing, 3/8“ (Includes No. 11)
11	Nut, Tubing
12	Valve, Shut-Off
13	Valve, Burner (3)
14	Valve, RF Burner
15	Gasket, Valve (5)
16	Screw, Valve Mtg.
17	Gasket, Screw (5)
18	Switch, Valve (4)
19	Deflector, Air
20	Support, Burner (2)
21	Electrode, Spark (Left)
21	Electrode, Spark (Right)
22	Bracket, Ignitor
23	WP489128 Whirlpool Refrigerator Screw
24	WP308685 Whirlpool Microwave Screw
