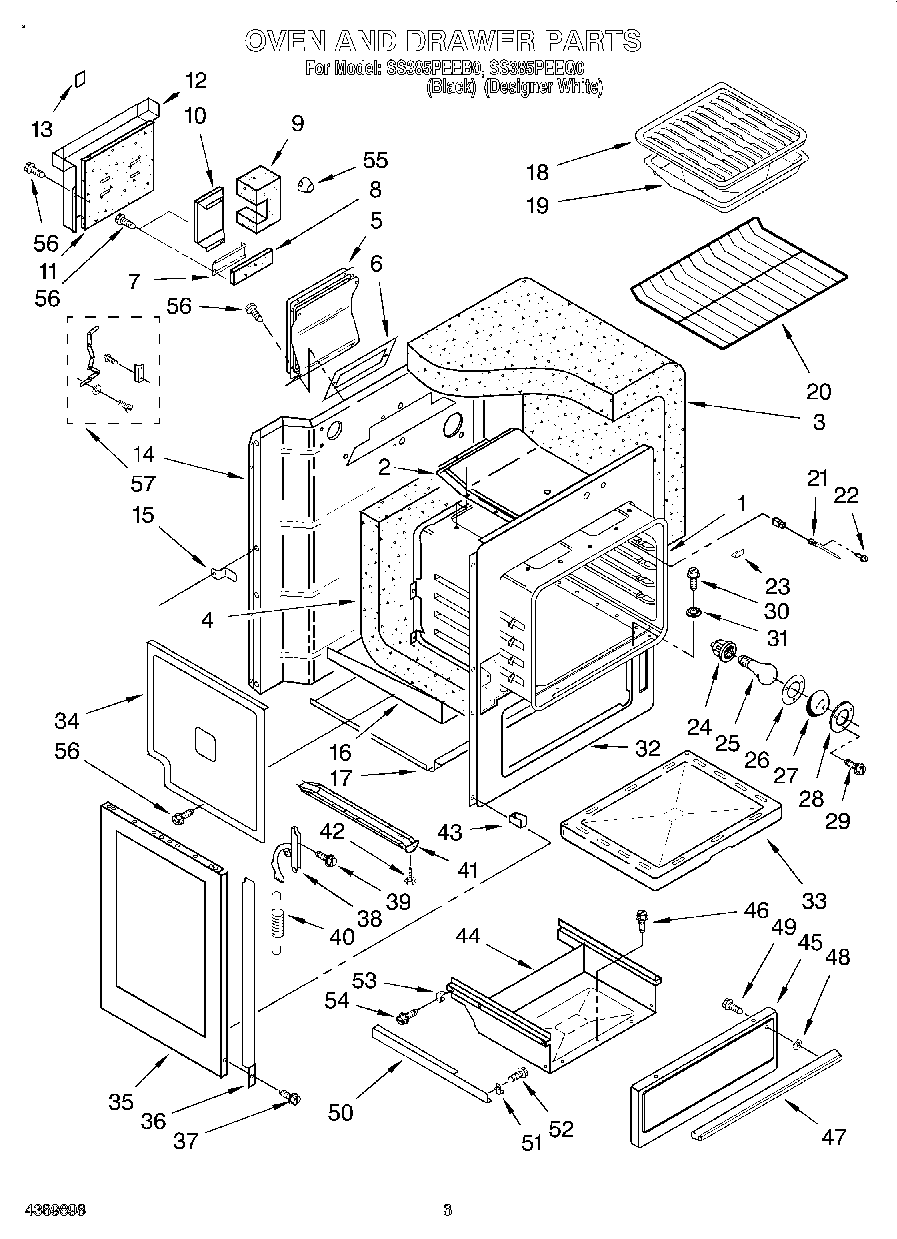

SS385PEEB0 02 – OVEN AND DRAWER

Products

Position	Product
1	Liner, Oven
2	Flue Box Assy.
3	Insulation, Top And Sides
4	Insulation, Back And Bottom
5	Deflector, Flue
6	Gasket, Deflector
7	Shield, Wire
8	Insulation, Flue
9	Insulation, Rear
10	Shield, Wire
11	Insulation, Deflector
12	Shield, Deflector
13	Pad, Felt (2)
14	Back, Main
15	Spacer, Retainer (2)
16	Retainer, Bottom
17	Baffle, Heat
19	4396923 Whirlpool Broil Pan Set Gray Porcelain
20	Rack, Oven (2)
21	Sensor, Oven
22	Screw (8)
23	Cover
24	W10856866 Whirlpool Light Socket
25	RANGE ONLY 40W 120V APPL BULB
26	Gasket, Lens
27	Lens, Oven Light
28	Retainer, Lens
29	Screw, Retainer
31	Washer
32	Frame, Front
33	Bottom, Oven
34	Retainer, Side (2)
35	Panel, Body Side (2)
36	Trim, Side (Black Right Hand)
36	Trim, Side (Black Left Hand)
36	Trim, Side (White Right Hand)
36	Trim, Side (White Left Hand)
37	W11693756 Whirlpool Screw Assembly
38	Hinge, Oven Door (Right)
38	Hinge, Oven Door (Left)
39	Screw, Hinge (6)
40	Spring, Door (2)
41	Rail, Base (Includes No. 42)
42	Screw, Leveler (4)
43	Spacer (4)
44	Drawer, Storage
45	Panel, Drawer (White)
45	Panel, Drawer (Black)
46	WP308685 Whirlpool Microwave Screw
47	Handle, Drawer (Black)
47	Handle, Drawer (White)
48	Spacer, Handle
48	Spacer, Handle (2) (Black)
49	WPL 4389543
50	WPL 4389470
51	WPL 4389477
52	WPL 4389536
53	WPL 4389476
54	WPL 4389537
55	WPL 4389556
57	WPL 4389471
