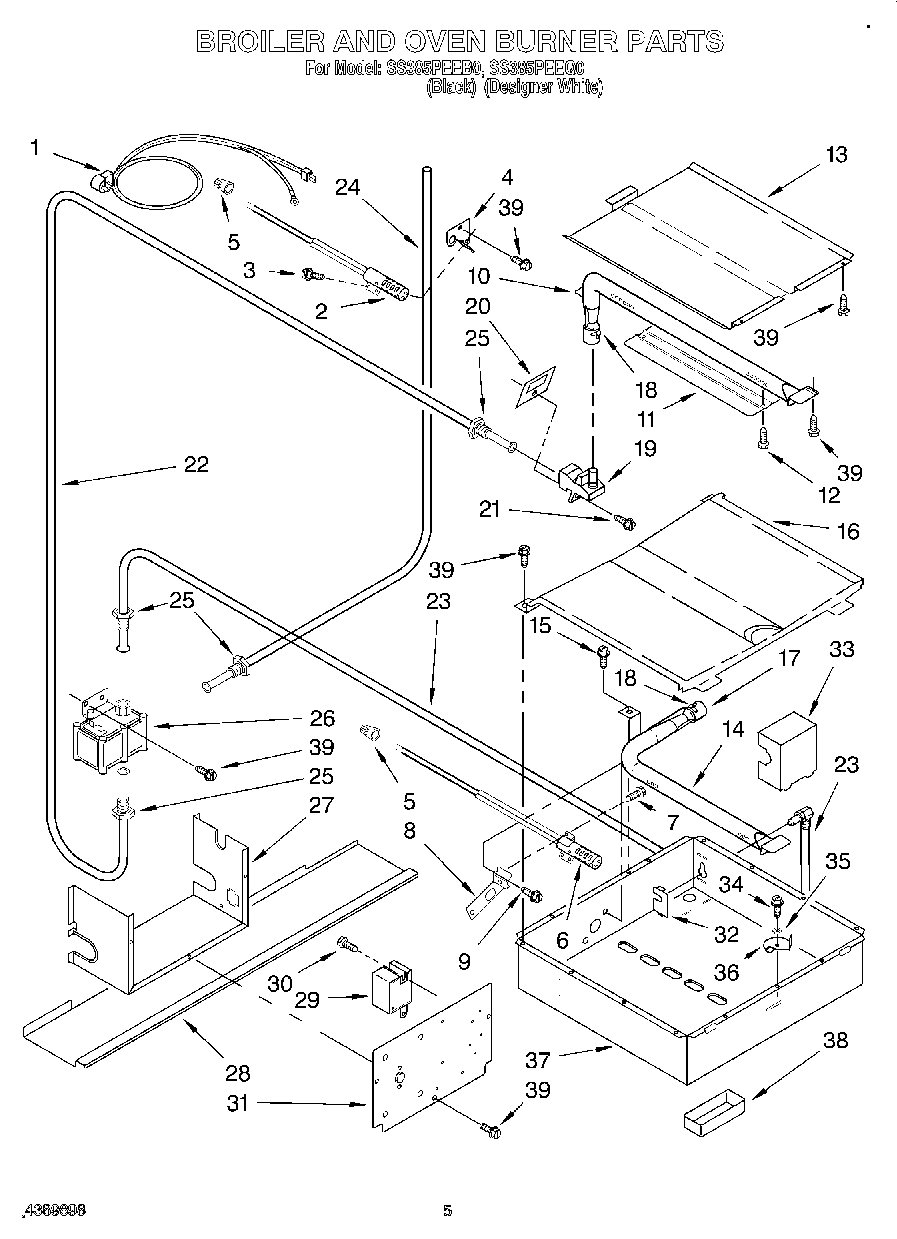

SS385PEEB0 03 – BROILER AND OVEN BURNER

Products

Position	Product
1	Cord, Power
4	Bracket, Broil Ignitor
5	WP4323866 Whirlpool Connector
6	Ignitor, Bake
7	Screw, Ignitor To Bracket
8	Bracket, Bake Ignitor
9	Screw, Retainer
10	Burner, Broiler
11	Baffle, Lower
12	WP489128 Whirlpool Refrigerator Screw
13	Baffle, Upper
14	Burner, Bake
16	Baffle, Oven Burner
17	Shutter, Air
18	Screw, Shutter
19	Fitting, Orifice
20	Cover, Chip
21	Nut, Speed (2)
22	Tubing, 3/8“ (Includes No. 25)
23	Tubing W/Orifice (Includes No. 25)
24	Tubing, 3/8“ (Includes No. 11)
25	Nut, Tubing
26	Valve, Control
27	Cover, Valve
28	Shield, Wire
29	Spark Module
30	Screw, Module (2)
31	Cover, Wire Front
32	Plate, Orifice
33	Shield, Orifice
34	Screw
35	Washer
36	Latch, Burner Box
37	Burner Box Bottom
38	Retainer, Insulation
39	WP308685 Whirlpool Microwave Screw
