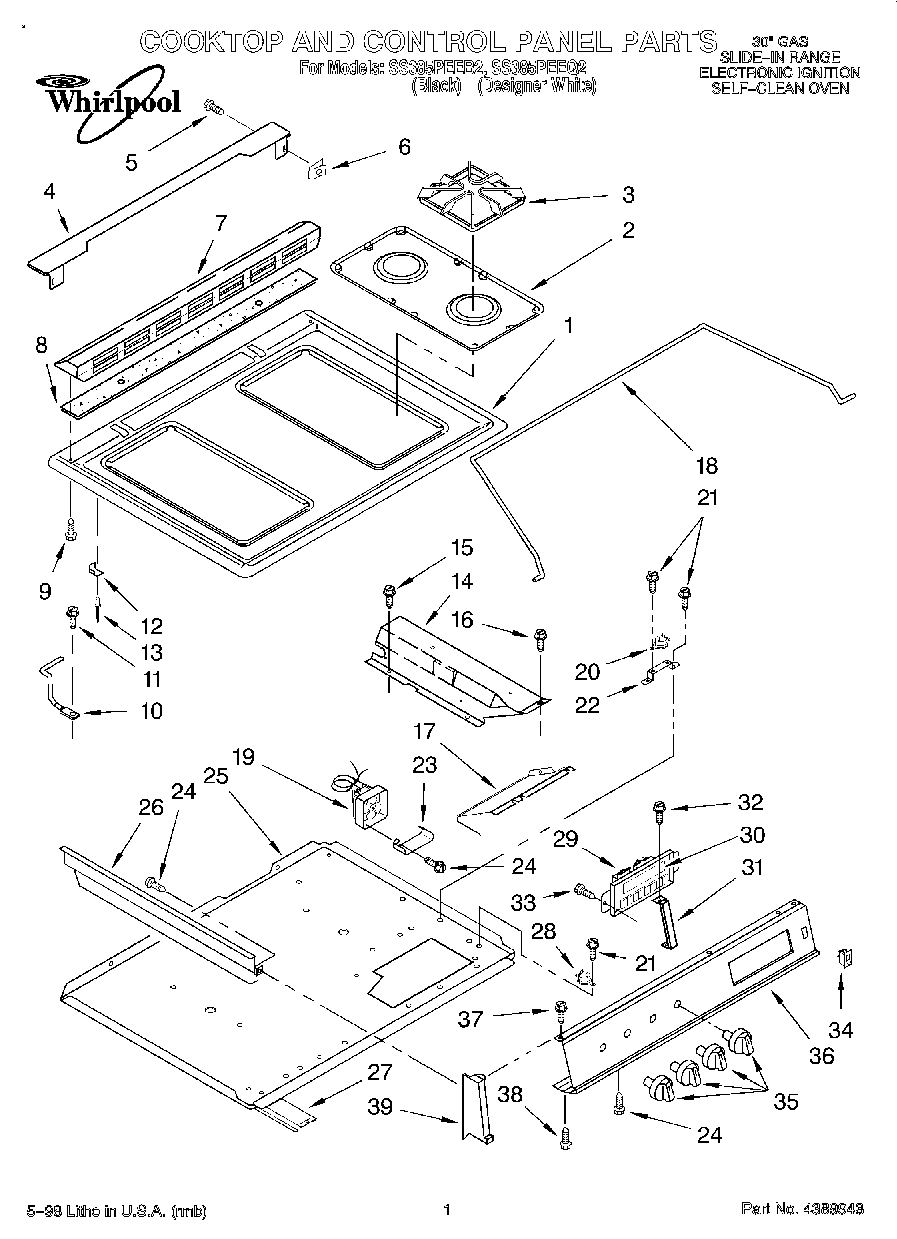

SS385PEEB2 01 – COOKTOP AND CONTROL PANEL

Products

Position	Product
1	Cooktop (White)
1	Cooktop (Black)
2	Drip Pan (2)
3	Grate (4) (White)
3	Grate (4) (Black)
4	Filler Strip (White)
4	Filler Strip (Black)
6	Nut, Speed (2)
7	Cover, Vent
8	Insulation, Vent
9	Screw (2)
10	Hinge, Cooktop (Left)
10	Hinge, Cooktop (Right)
12	Bracket, Hinge (2)
13	Pop Rivet (2)
14	Duct, Fan
17	Cover, Wire
18	Support, Cooktop
19	Fan Assembly
20	Switch, Limit
21	Screw
22	Bracket, Switch
23	Bracket, Fan
24	WP308685 Whirlpool Microwave Screw
25	Bottom, Burner Box
26	Extension, Side (2)
27	Support, Burner Box
27	Support, Burner Box (Right Hand)
28	Switch, Fan Limit
29	Control, Clock/Oven
30	Plate, Clock (White)
30	Plate, Clock (Black)
31	Bracket, Clock (2)
32	Screw (3)
33	Screw (8)
34	WP4314961 Whirlpool Lite Switch
35	Knob, Control (4) (Black)
35	Knob, Control (4) (White)
36	Panel, Control (Black)
36	Panel, Control (White)
39	Endcap (Black Right Hand)
39	Endcap (White Left Hand)
39	Endcap (White Right Hand)
39	Endcap (Black Left Hand)
