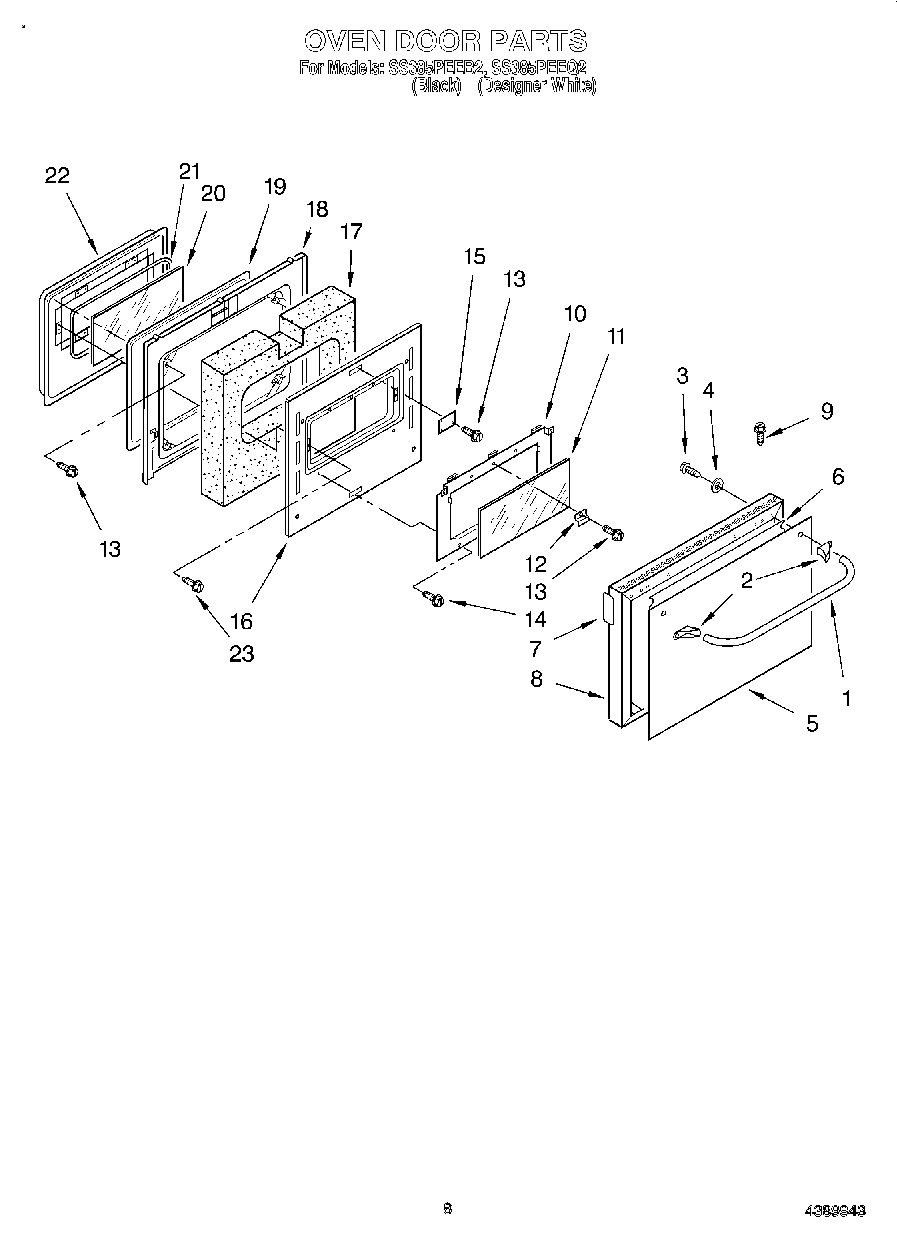

SS385PEEB2 05 – OVEN DOORadmin2025-04-26T11:27:37+00:00SS385PEEB2 05 – OVEN DOOR
Products
| Position | Product |
|---|
| 1 | Handle, Oven Door (Black) |
| 1 | Handle, Oven Door (White) |
| 2 | Endcap, Handle (2) (White) |
| 2 | Endcap, Handle (2) (Black) |
| 3 | Screw, Handle (4) |
| 4 | Spacer, Handle (2) |
| 5 | Glass, Door Front (White) |
| 5 | Glass, Door Front (Black) |
| 6 | Reflector, Heat |
| 7 | Insulator, Door Frame (2) (White) |
| 7 | Insulator, Door Frame (2) (Black) |
| 8 | Frame, Oven Door (White) |
| 8 | Frame, Oven Door (Black) |
| 9 | Screw, Trim (6) (White) |
| 9 | Screw, Trim (6) (Black) |
| 10 | Plate, Glass Mtg. |
| 11 | Glass, Mid Door |
| 12 | Retainer, Glass (2) |
| 13 | Screw, Retainer |
| 14 | Screw, Plate (6) |
| 15 | Shield, Heat |
| 16 | Retainer, Insulation |
| 17 | Insulation, Door |
| 18 | Liner, Oven Door |
| 19 | Gasket, Oven Door |
| 20 | Glass, Inner |
| 21 | Seal, Inner Glass |
| 22 | Plug, Oven Door |
| 23 | WP308685 Whirlpool Microwave Screw |
