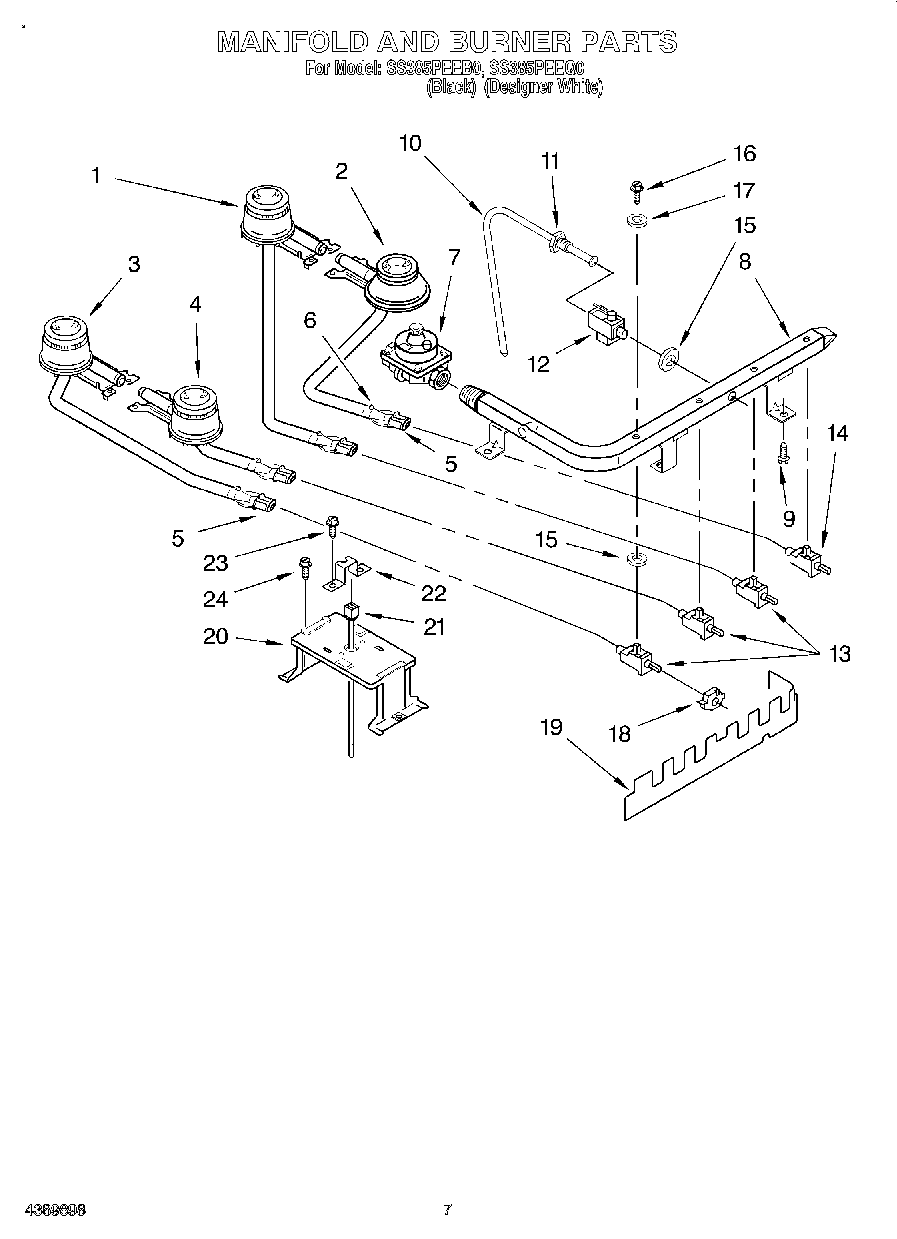

SS385PEEQ0 04 – MANIFOLD AND BURNER

Products

PositionProduct
1Burner, Right Rear
2Burner, Right Front
3Burner, Left Rear
4Burner, Left Front
5Shutter, Air
6Screw, Shutter
7Regulator, Pressure
8Pipe, Manifold
10Tubing, 3/8“ (Includes No. 11)
11Nut, Tubing
12Valve, Shut-Off
13Valve, Burner (3)
14Valve, RF Burner
15Gasket, Valve (5)
16Screw, Valve Mtg.
17Gasket, Screw (5)
18Switch, Valve (4)
19Deflector, Air
20Support, Burner (2)
21Electrode, Spark (Left)
21Electrode, Spark (Right)
22Bracket, Ignitor
23WP489128 Whirlpool Refrigerator Screw
24WP308685 Whirlpool Microwave Screw
