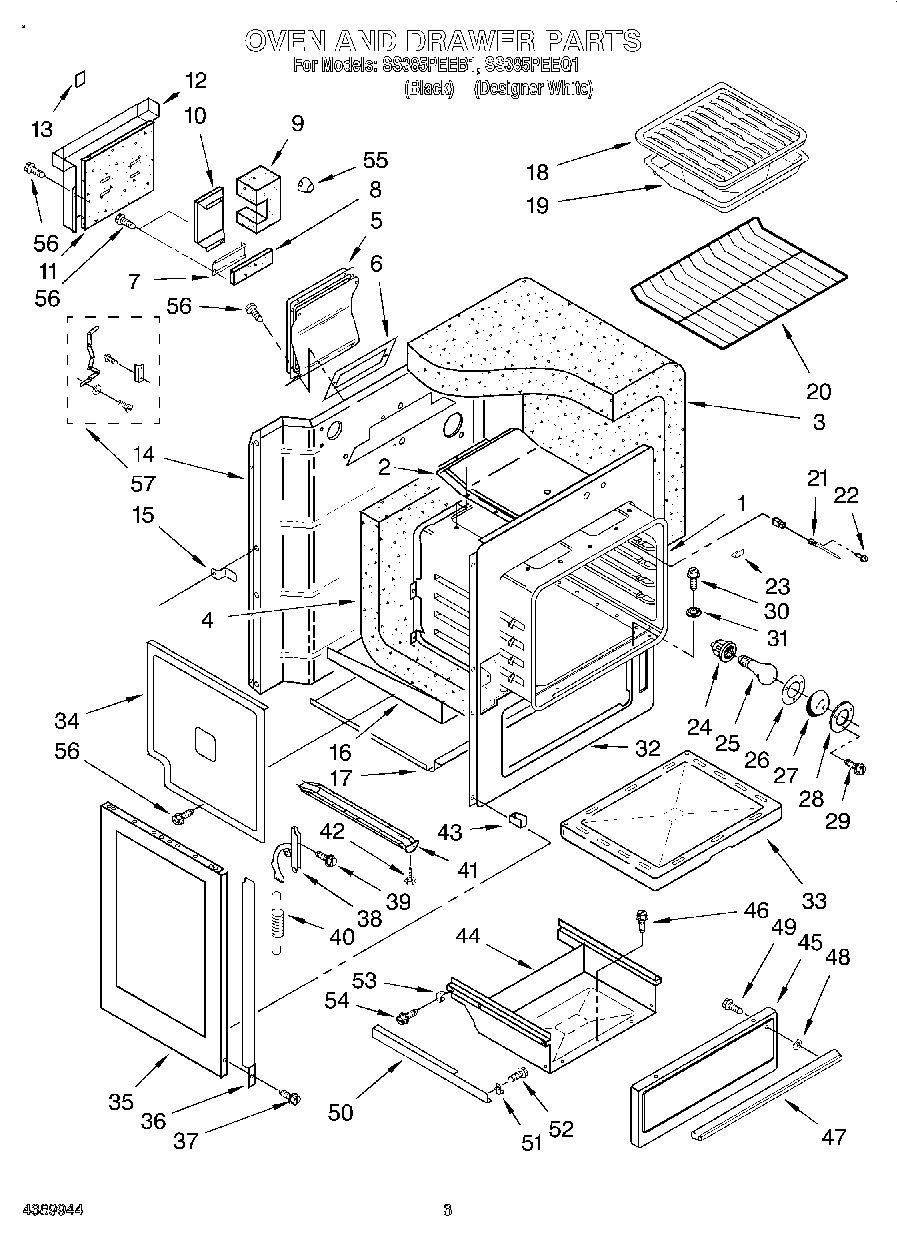

SS385PEEQ1 02 – OVEN AND DRAWERadmin2025-04-26T11:24:24+00:00SS385PEEQ1 02 – OVEN AND DRAWER
Products
| Position | Product |
|---|
| 1 | Liner, Oven |
| 2 | Flue Box Assy. |
| 3 | Insulation, Top And Sides |
| 4 | Insulation, Back And Bottom |
| 5 | Deflector, Flue |
| 6 | Gasket, Deflector |
| 7 | Shield, Wire |
| 8 | Insulation, Flue |
| 9 | Insulation, Rear |
| 10 | Shield, Wire |
| 11 | Insulation, Deflector |
| 12 | Shield, Deflector |
| 13 | Pad, Felt (2) |
| 14 | Frame, Front |
| 15 | Spacer, Retainer (2) |
| 16 | Retainer, Bottom |
| 17 | Baffle, Heat |
| 19 | 4396923 Whirlpool Broil Pan Set Gray Porcelain |
| 20 | Rack, Oven (2) |
| 21 | Sensor, Oven |
| 22 | Screw (8) |
| 23 | Cover |
| 24 | W10856866 Whirlpool Light Socket |
| 25 | RANGE ONLY 40W 120V APPL BULB |
| 26 | Gasket, Lens |
| 27 | Lens, Oven Light |
| 28 | Retainer, Lens |
| 29 | Screw, Retainer |
| 31 | Washer |
| 32 | Frame, Front |
| 33 | Bottom, Oven |
| 34 | Retainer, Side (2) |
| 35 | Panel, Body Side (2) |
| 36 | Trim, Side (Black Right Hand) |
| 36 | Trim, Side (Black Left Hand) |
| 36 | Trim, Side (White Right Hand) |
| 36 | Trim, Side (White Left Hand) |
| 37 | W11693756 Whirlpool Screw Assembly |
| 38 | Hinge, Oven Door (Right) |
| 38 | Hinge, Oven Door (Left) |
| 39 | Screw, Hinge (6) |
| 40 | Spring, Door (2) |
| 41 | Rail, Base (Includes No. 42) |
| 42 | Screw, Leveler (4) |
| 43 | Spacer (4) |
| 44 | Drawer, Storage |
| 45 | Panel, Drawer (White) |
| 45 | Panel, Drawer (Black) |
| 46 | WP308685 Whirlpool Microwave Screw |
| 47 | Handle, Drawer (Black) |
| 47 | Handle, Drawer (White) |
| 48 | Spacer, Handle |
| 48 | Spacer, Handle (2) (Black) |
| 49 | WPL 4389543 |
| 50 | WPL 4389470 |
| 51 | WPL 4389477 |
| 52 | WPL 4389536 |
| 53 | WPL 4389476 |
| 54 | WPL 4389537 |
| 55 | WPL 4389556 |
| 57 | WPL 4389471 |
