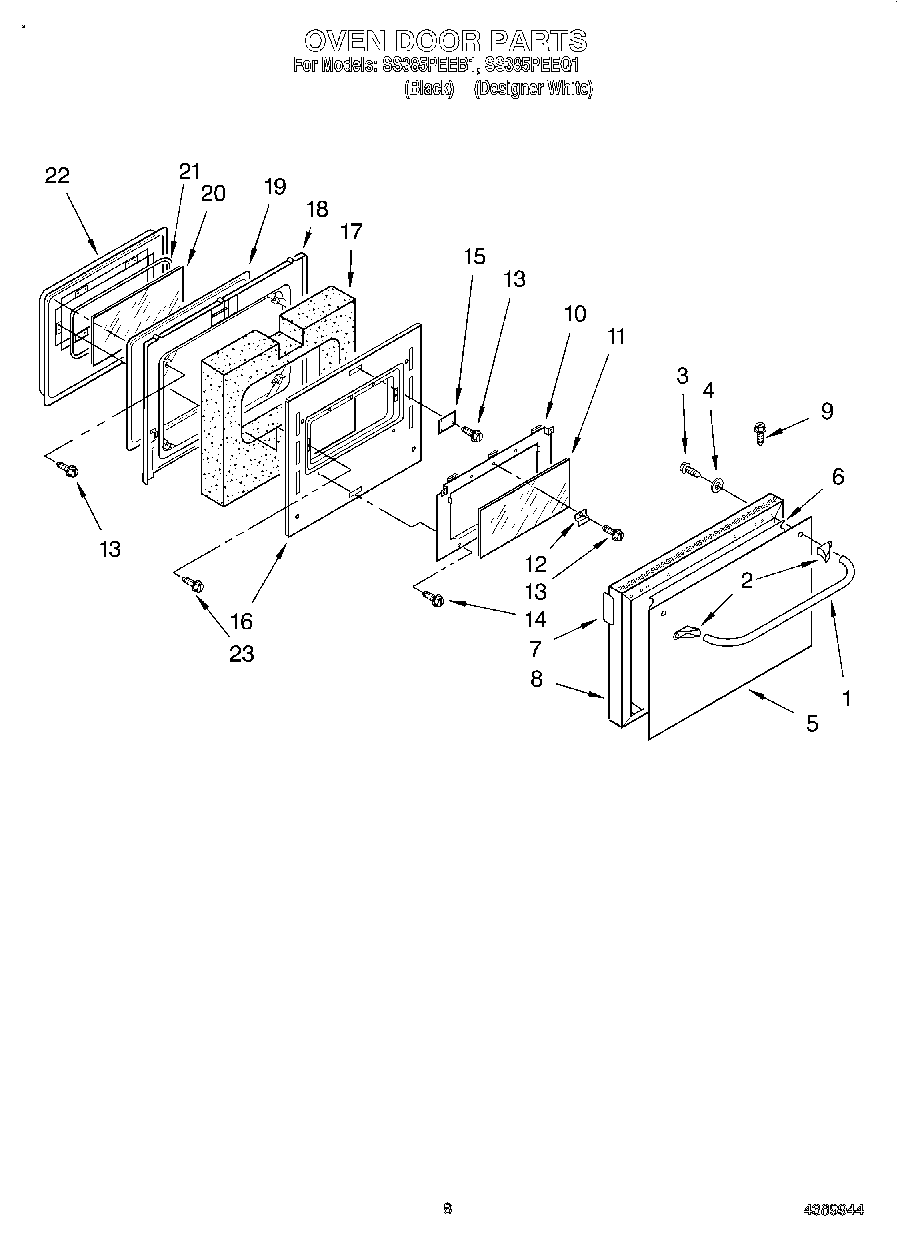

SS385PEEQ1 05 – OVEN DOOR

Products

Position	Product
1	Handle, Oven Door (White)
1	Handle, Oven Door (Black)
2	Endcap, Handle (2) (White)
2	Endcap, Handle (2) (Black)
3	Screw, Handle (4)
4	Spacer, Handle (2)
5	Glass, Door Front
6	Reflector, Heat
7	Insulator, Door Frame (2) (Black)
7	Insulator, Door Frame (2) (White)
8	Frame, Oven Door (White)
8	Frame, Oven Door (Black)
9	Screw, Trim (6) (White)
9	Screw, Trim (6) (Black)
10	Plate, Glass Mtg.
11	Glass, Mid Door
12	Retainer, Glass (2)
13	Screw, Retainer
14	Screw, Plate (6)
15	Shield, Heat
16	Retainer, Insulation
17	Insulation, Door
18	Liner, Oven Door
19	Gasket, Oven Door
20	Glass, Inner
21	Seal, Inner Glass
22	Plug, Oven Door
23	WP308685 Whirlpool Microwave Screw
