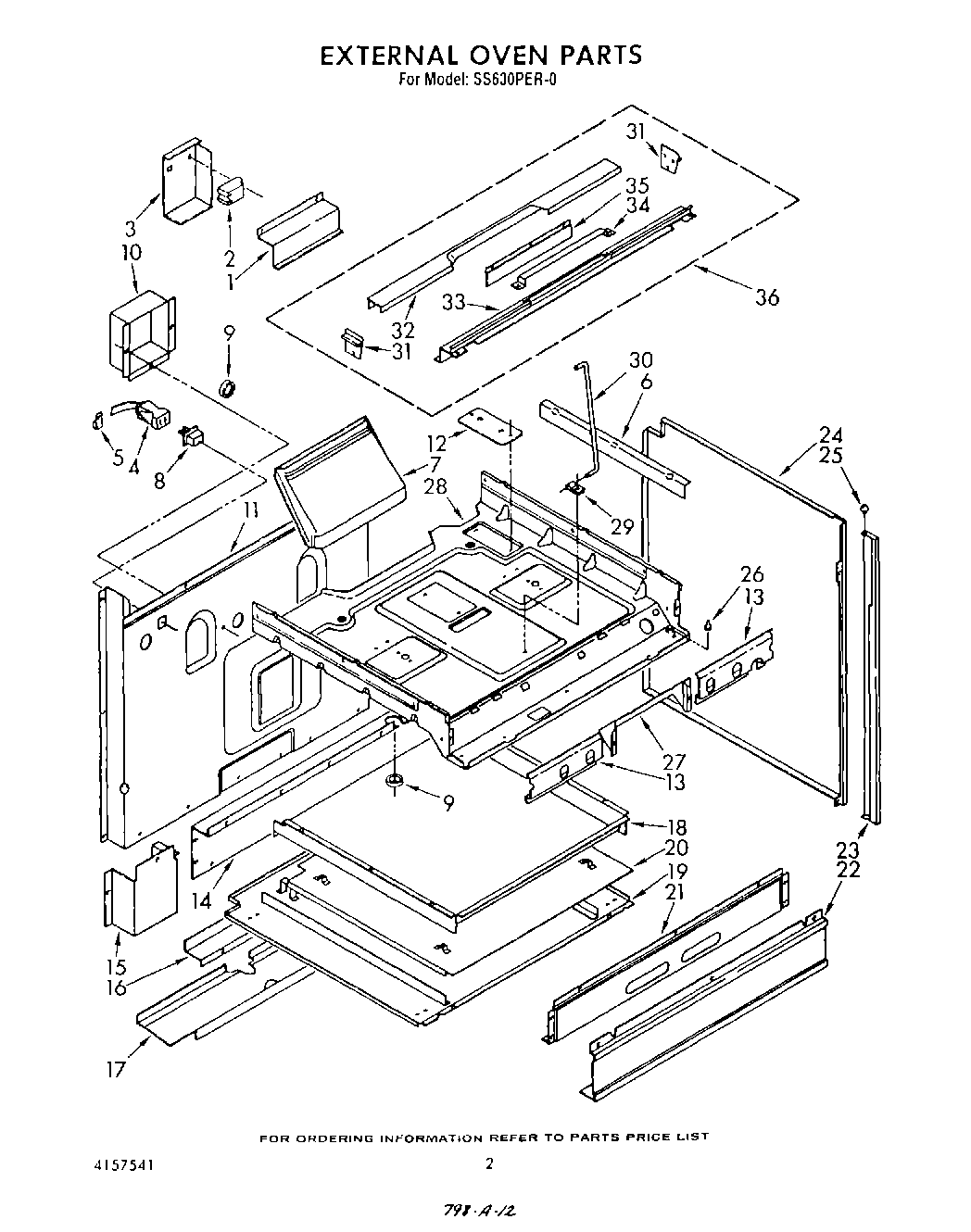

SS630PER0 02 – EXTERNAL OVEN

Products

Position	Product
1	Cover, Module
2	Module, Spark
2	Screw, 8-18 X 1/4 (2)
3	Bracket, Module
4	Cord, Power
5	Clamp
6	Bracket Support (2)
7	Flue
8	Plug
9	bushing, snap
10	Cover, Plug
11	Panel, Rear (Upper)
12	Cover, Access
13	Shield, Wire (Right)
13	Shield, Wire (Left)
14	Panel, Rear (Lower)
15	Panel, Rear (Side)
16	Bracket, Support
17	Shield, Valve
18	Bottom, Bake Burner
19	Panel, Bottom
20	Shield, Heat
21	Bracket, Lower
22	Panel, Lower
22	Screw, 8-18 X 3/8
23	Trim, Side (Right)
23	Trim, Side (Left)
24	Panel, Side (Left)
24	Panel, Side (Right)
25	Spacer (2)
26	Protector (2)
27	Shield, Thermostat
28	Burner Box
29	WP488366 Whirlpool Refrigerator Clamp
30	Rod, Support
31	Endcap (Left)
31	Endcap (Right)
31	WP488729 Whirlpool Refrigerator Door Screw
32	Trim, Lower
33	Vent
34	Deflector, Vent
34	Screw (2)
35	WP90767 Whirlpool Screw
35	Sh
36	WPL 4157471
