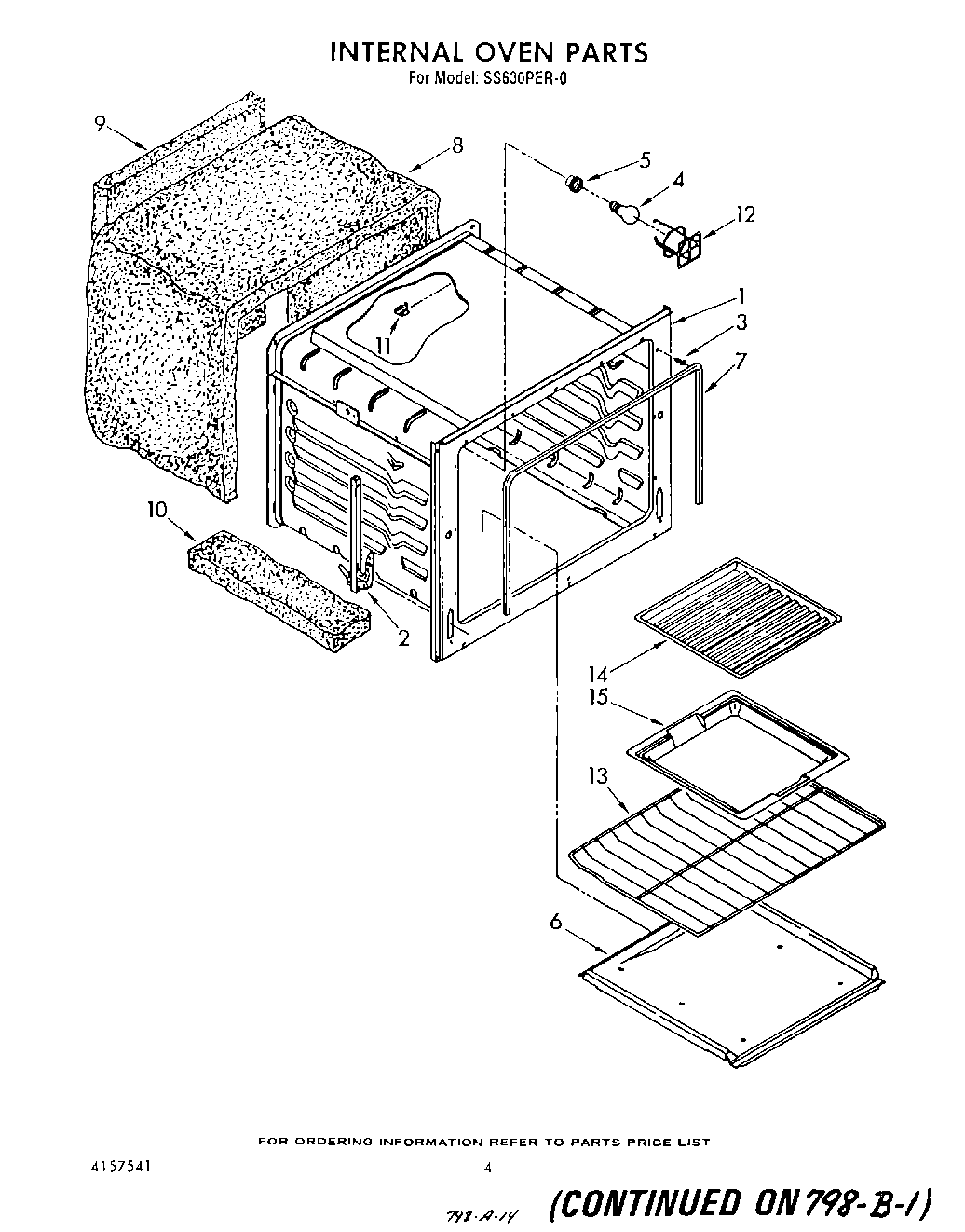

SS630PER0 03 – INTERNAL OVEN

Products

Position	Product
1	Oven (Not Serviceable)
2	Screw, 10-32 X 3/8 (2)
2	Hinge (2)
3	Clip, Seal
4	RANGE ONLY 40W 120V APPL BULB
5	Socket
6	Bottom, Oven
7	Seal
8	WPW10208653 Whirlpool Insulation
10	Insulation
11	Clip, Thermo Bulb (2)
12	Shield, Bulb
13	Rack
14	Grid, Broiler
15	Pan, Broiler
