SS630PER0 04 – COOKTOP AND MANIFOLD

SS630PER0 04 – COOKTOP AND MANIFOLD

Written by

in

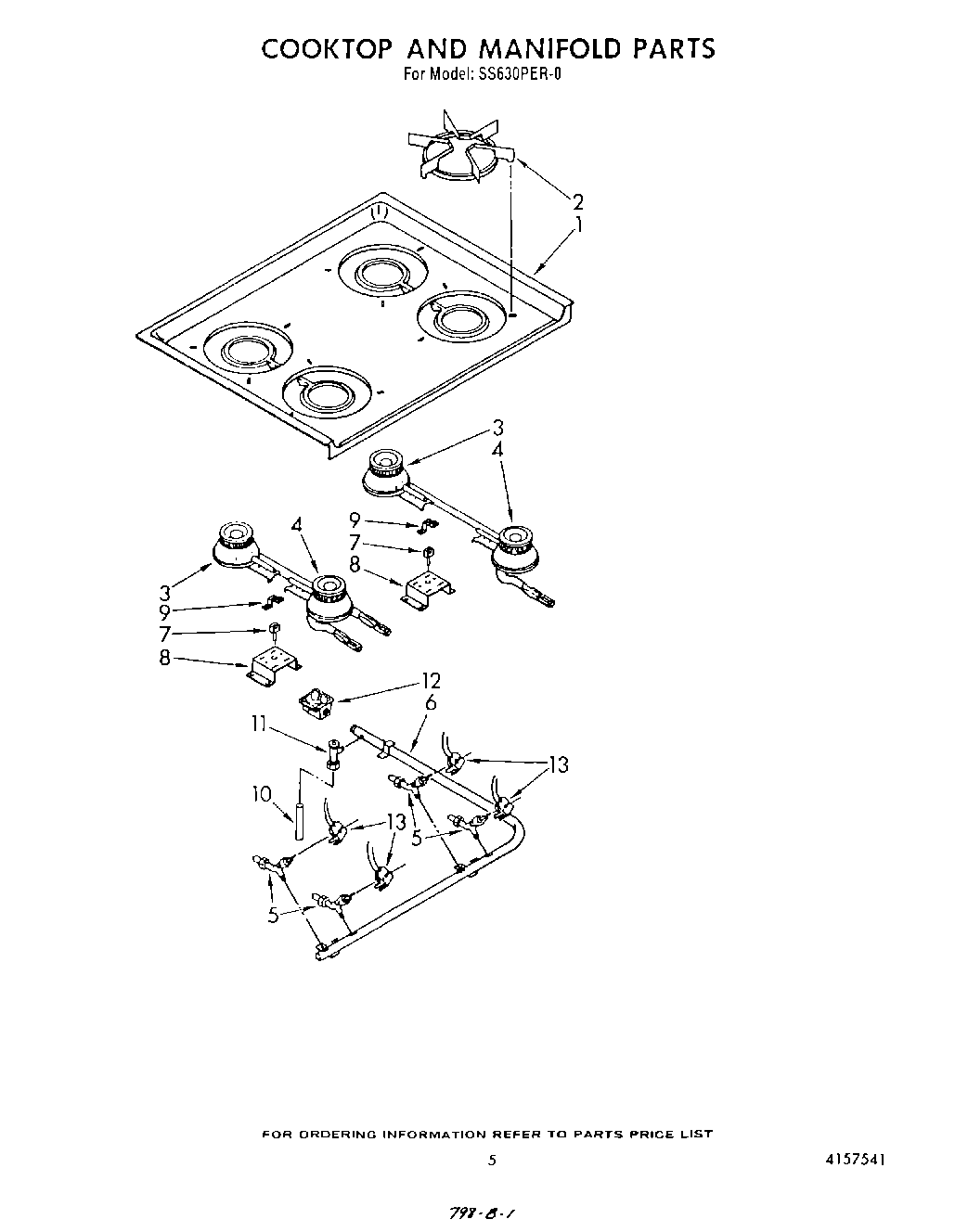

SS630PER0 04 – COOKTOP AND MANIFOLD

Products

Position	Product
1	Cooktop, Chrome
2	Grate (4)
3	Burner, Rear (2)
4	Panel, Broiler (Toast)
5	Valve (4)
6	Screw, 8-32 X 3/8 (2)
6	Pipe, Manifold
7	Electrode
8	Support, Burner
8	WP90767 Whirlpool Screw
9	WP3177991 Whirlpool Screw
9	Strap, Ground
10	Tube, Main
11	Valve, Shut Off
12	Pressure Regulator
13	Switch
