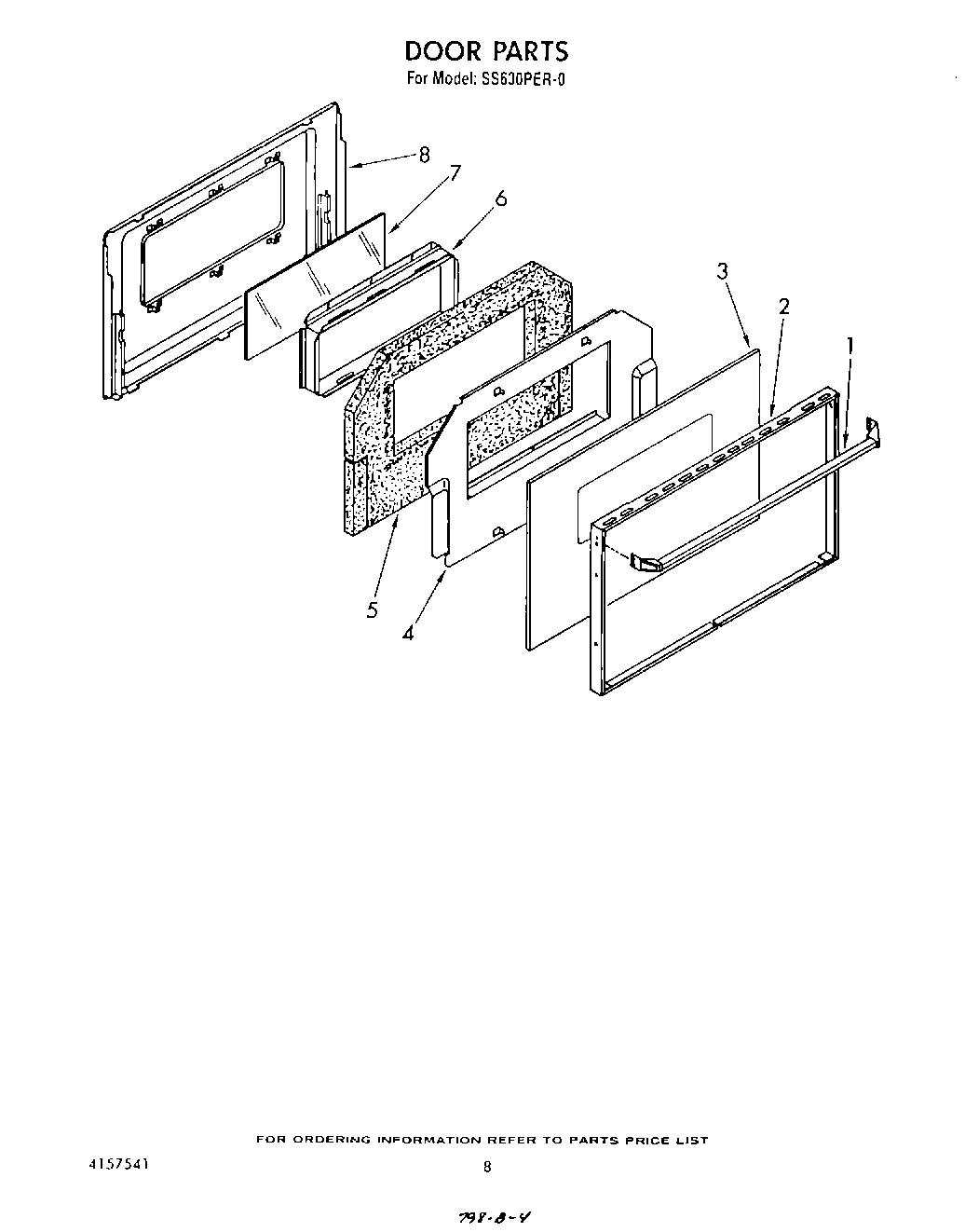

SS630PER0 07 – DOOR

SS630PER0 07 – DOOR

Written by

in

SS630PER0 07 – DOOR

Products

Position	Product
1	WP98234 Whirlpool Nut
1	Handle
1	Screw, 10A X 3/4 (2)
1	Screw, 8-32 X 3/8 (4)
2	Frame, Door
3	Glass, Outter
4	Baffle, Door
5	Insulation
6	Frame, Glass
6	Screw
7	Glass, Inside
8	Screw, 8-18 X 3/8
8	Liner
