SS630PER1 03 – INTERNAL OVEN
Written by
in

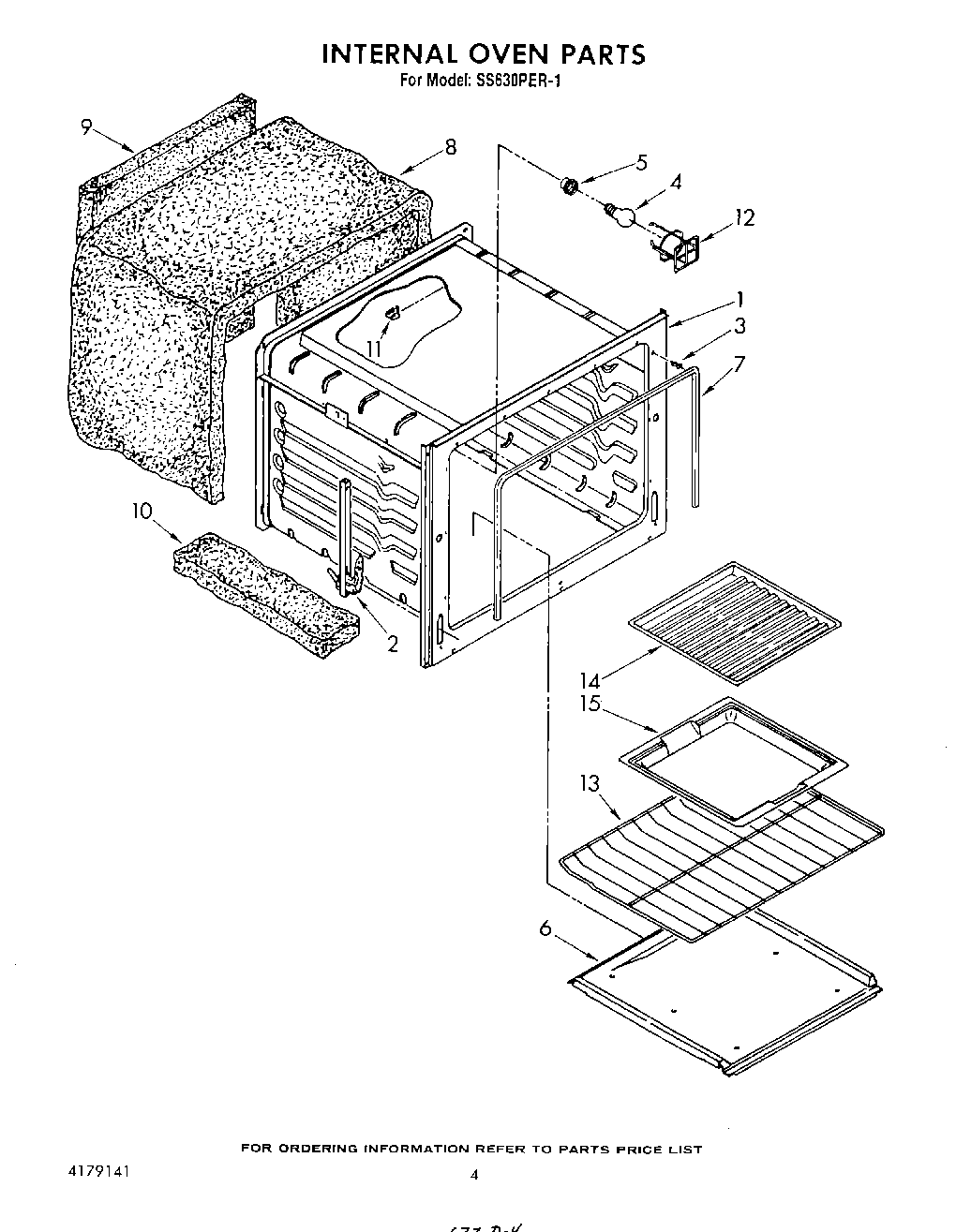

SS630PER1 03 – INTERNAL OVEN
Products
Position
Product
1
Oven (Not Serviceable)
2
Screw, 10-32 X 3/8 (2)
2
Hinge (2)
3
Clip, Seal
4
RANGE ONLY 40W 120V APPL BULB
5
Socket
6
Bottom, Oven
7
Seal
8
WPW10208653 Whirlpool Insulation
10
Insulation
11
Clip, Thermo Bulb (2)
12
Shield, Bulb
13
Rack
14
Grid, Broiler
15
Pan, Broiler
←
