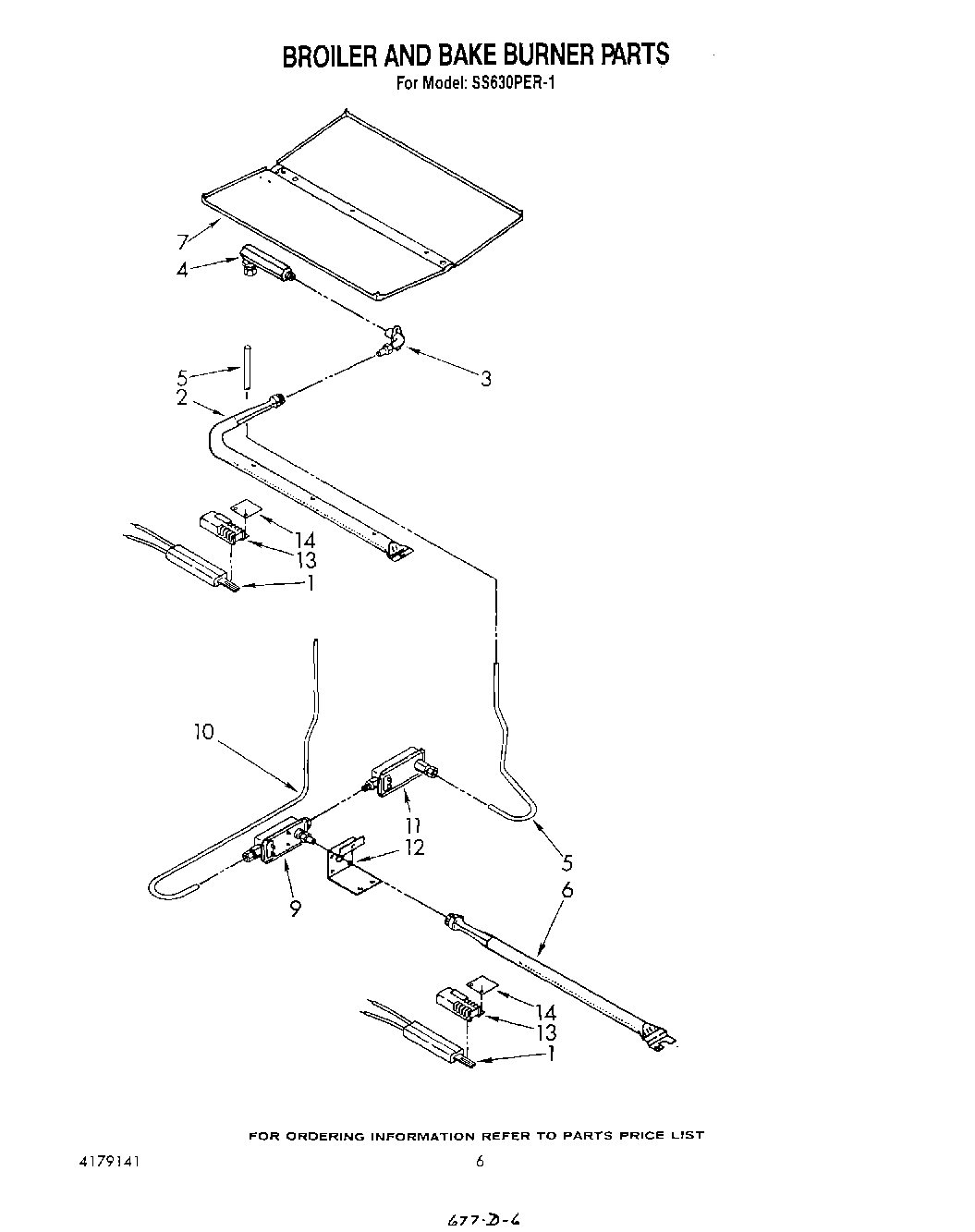

SS630PER1 05 – BROILER AND BAKE BURNER

Products

Position	Product
1	786324 Whirlpool Flat Igniter
1	WP313808 Whirlpool Screw
2	WP3177991 Whirlpool Screw
2	Burner, Broiler
3	Orfice
4	Connector, Tube
5	Tube, Broiler
6	Burner, Bake
7	Pop Rivet (4)
7	Deflector
9	Nut (2)
9	Valve, Bake
10	Tube, Main
11	Valve, Broil
12	WP90767 Whirlpool Screw
12	Bracket, Valve
13	Ignitor Shield
14	Shield, Deflector (2)
