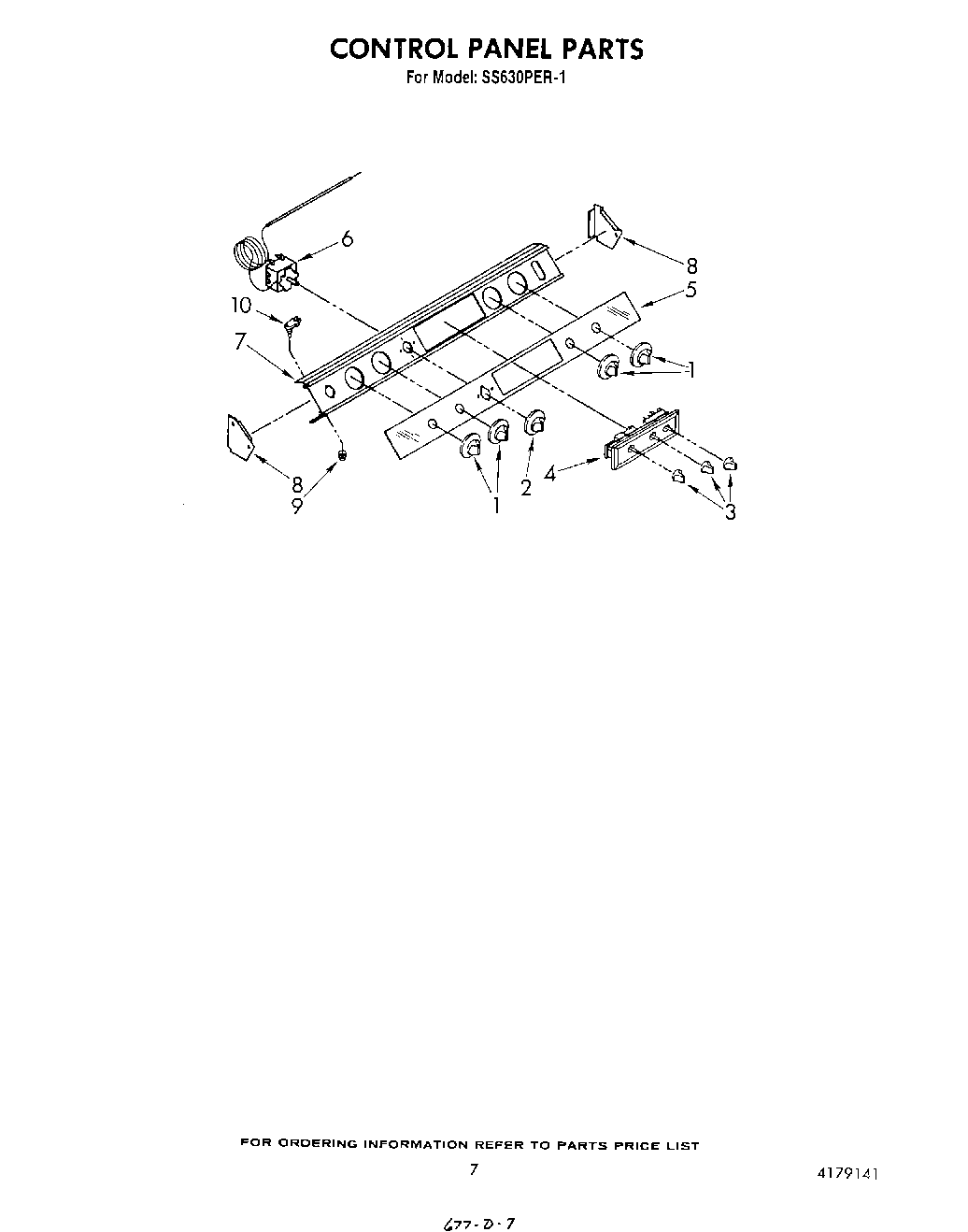

SS630PER1 06 – CONTROL PANEL , LIT/OPTIONAL

SS630PER1 06 – CONTROL PANEL , LIT/OPTIONAL

Written by

in

SS630PER1 06 – CONTROL PANEL , LIT/OPTIONAL

Products

Position	Product
	List, Repair Parts
	Instructions, Installation
	Guide, Cooking
	Guide, Use & Care
1	Knob, Burner (4)
2	Knob, Thermostat
3	Knob, Clock
4	Clock
5	Inlay
6	Thermostat
6	WP313808 Whirlpool Screw
7	Panel, Control
7	WP90767 Whirlpool Screw
8	Screw, 8-18 X 3/8
8	Endcap (L.H.)
8	Endcap (R.H.)
9	Bezel
10	Switch
