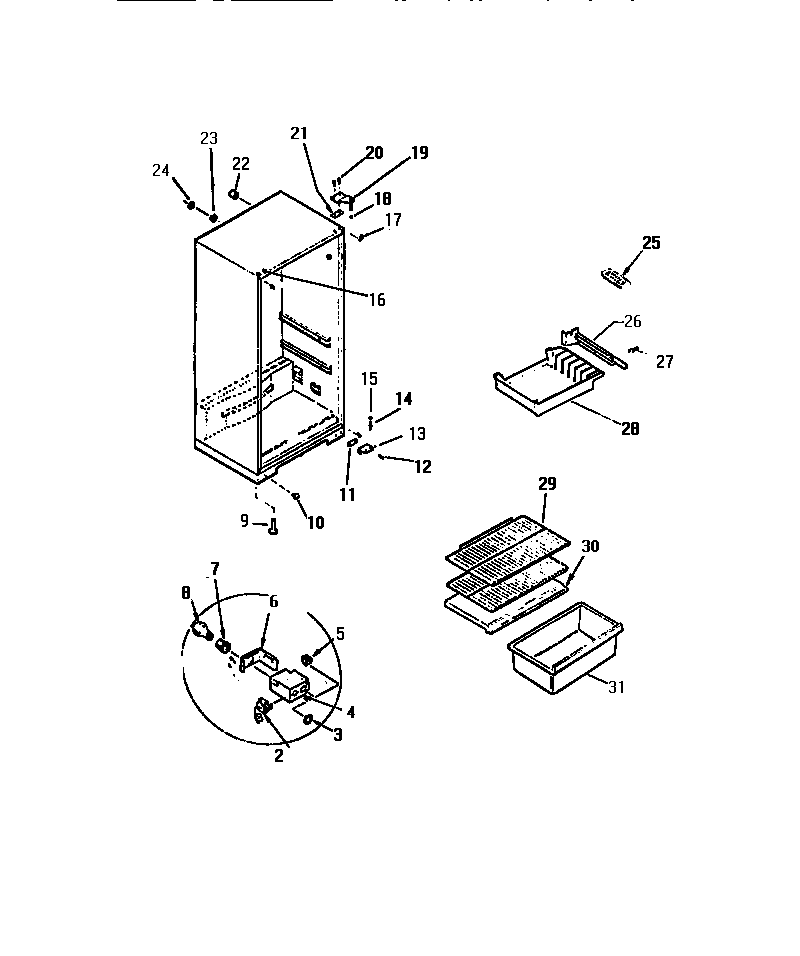

SSX130AM9V 03 – CABINET

Products

Position	Product
*58088	WCI G185384
*58105	WCI G162977-08
*58111	COVER, TOP HINGE, AVOCADO
*58101	WCI G169332-08
*58097	NUT, ANCHOR (2)
*58093	SCREW-GROUND (2) (NON-ILLUSTRATED)
*58080	STOPPER-RUBBER
*58090	GASKET-TRAY (NON-ILLUSTRATED)
*58094	WCI G177673
*58089	WCI G179612
*58092	CLIP-CANOE (2) (NON-ILLUSTRATED)
*58091	LABEL-BAFFLE (NON-ILLUSTRATED)
*58087	WCI G182924
*58086	TAPPING, PLATE (2)
*58096	WCI G99156
*58095	BUTTON, PLUG, LINER (2)
2A	WCI G107080
2	CONTROL, TEMPERATURE
3	WCI G174781-20
4	WCI G163211-35
5	5309918806 Frigidaire Refrigerator Light Switch Door
6	BRACKET-CONTROL
7	SOCKET LIGHT
8	316538904 Frigidaire Oven Lamp Light
9	WCI G166739
10	WCI G166912
11	SHIM, HINGE
13	BRACKET, HINGE, LOWER
14	5303001321 Frigidaire Refrigerator Lower Hinge Pin
15	WASHER, NYLON 5/16 X 5/8 (CTR & LOWER HINGE BRACKET)
16	WCI G174747-08
17	TRIM-CAB CORNER-AVOC
18	WCI G103903
19	BRACKET, TOP HINGE
20	241710601 Frigidaire Refrigerator Screw
21	WCI G183861
22	TUBE, INSULATION (2)
23	WCI F174733
24	WCI G174734
25	215667501 Frigidaire Refrigerator Ice Tray Primary
26	SUPPORT-TRAY RH
27	5304455650 Frigidaire Refrigerator Screw
28	DRIP TRAY
29	WCI G172172-01
30	COVER, CRISPER
31	PAN, STORAGE
