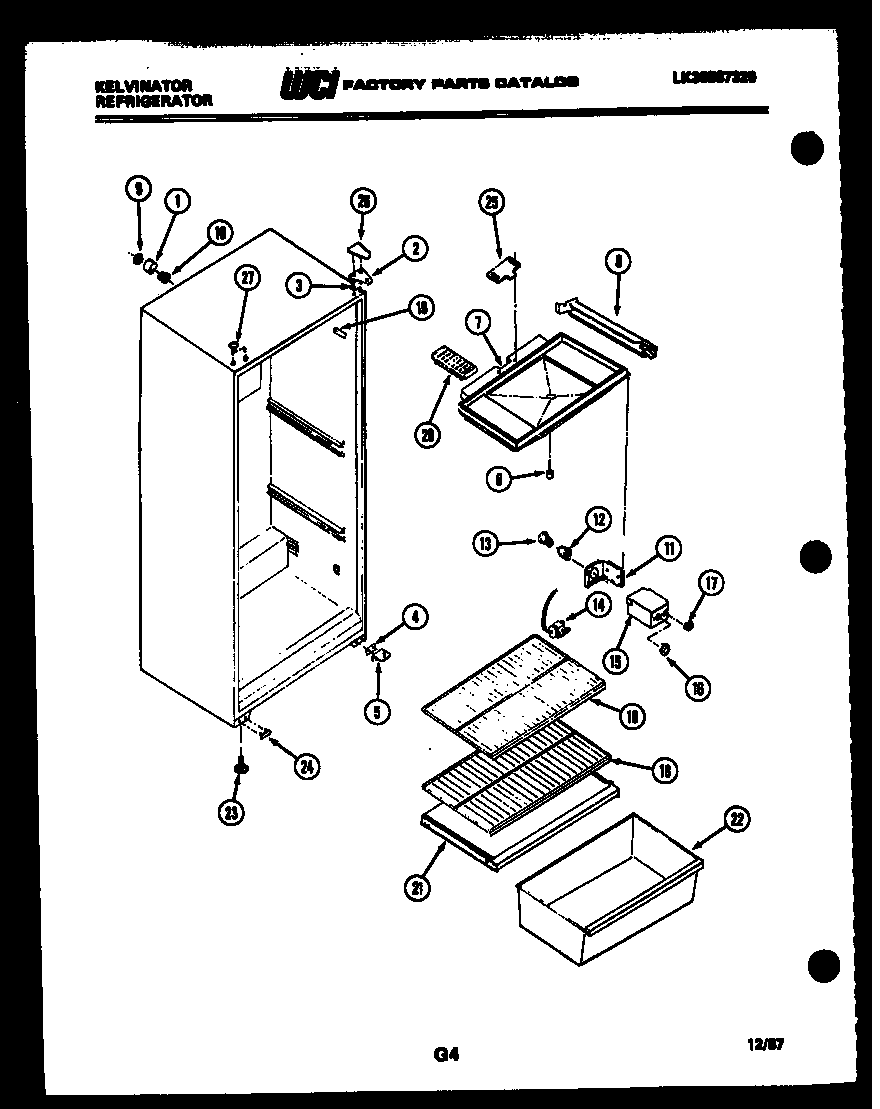

SSX130EM0F 03 – CABINET PARTS

Products

Position	Product
*21329	BUTTON, PLUG, LINER (2)
*21330	WCI G163885
*21331	BASE-CABINET
1	TUBE, INSULATION (2)
2B	WCI G103903
2	BRACKET, TOP HINGE
2A	241710601 Frigidaire Refrigerator Screw
3	WCI G183861
4	SHIM, HINGE
4A	TAPPING, PLATE (2)
5B	WASHER, NYLON 5/16 X 5/8 (CTR & LOWER HINGE BRACKET)
5	BRACKET, HINGE, LOWER
5A	5303001321 Frigidaire Refrigerator Lower Hinge Pin
6	STOPPER-RUBBER
7	DRIP TRAY
7A	GASKET-TRAY (NON-ILLUSTRATED)
8	SUPPORT-TRAY RH
9	WCI G174734
10	WCI G174733
11A	SCREW-GROUND (2) (NON-ILLUSTRATED)
11	BRACKET-CONTROL
12	SOCKET LIGHT
13	316538904 Frigidaire Oven Lamp Light
14	WCI G162205-08
15	WCI 3016543
16	WCI 3016544
17	5309918806 Frigidaire Refrigerator Light Switch Door
18	WCI G172172-01
19	TRIM, COFFEE
20	215667501 Frigidaire Refrigerator Ice Tray Primary
21	COVER-CRISPER
22	PAN, STORAGE
23	LEG-LEVELING (2)
23A	NUT, ANCHOR (2)
24	WCI G166912
25	WCI G179612
25A	CLIP-CANOE (2) (NON-ILLUSTRATED)
25B	LABEL-BAFFLE (NON-ILLUSTRATED)
26	COVER HINGE, COFFEE
27	WCI G174747-10
