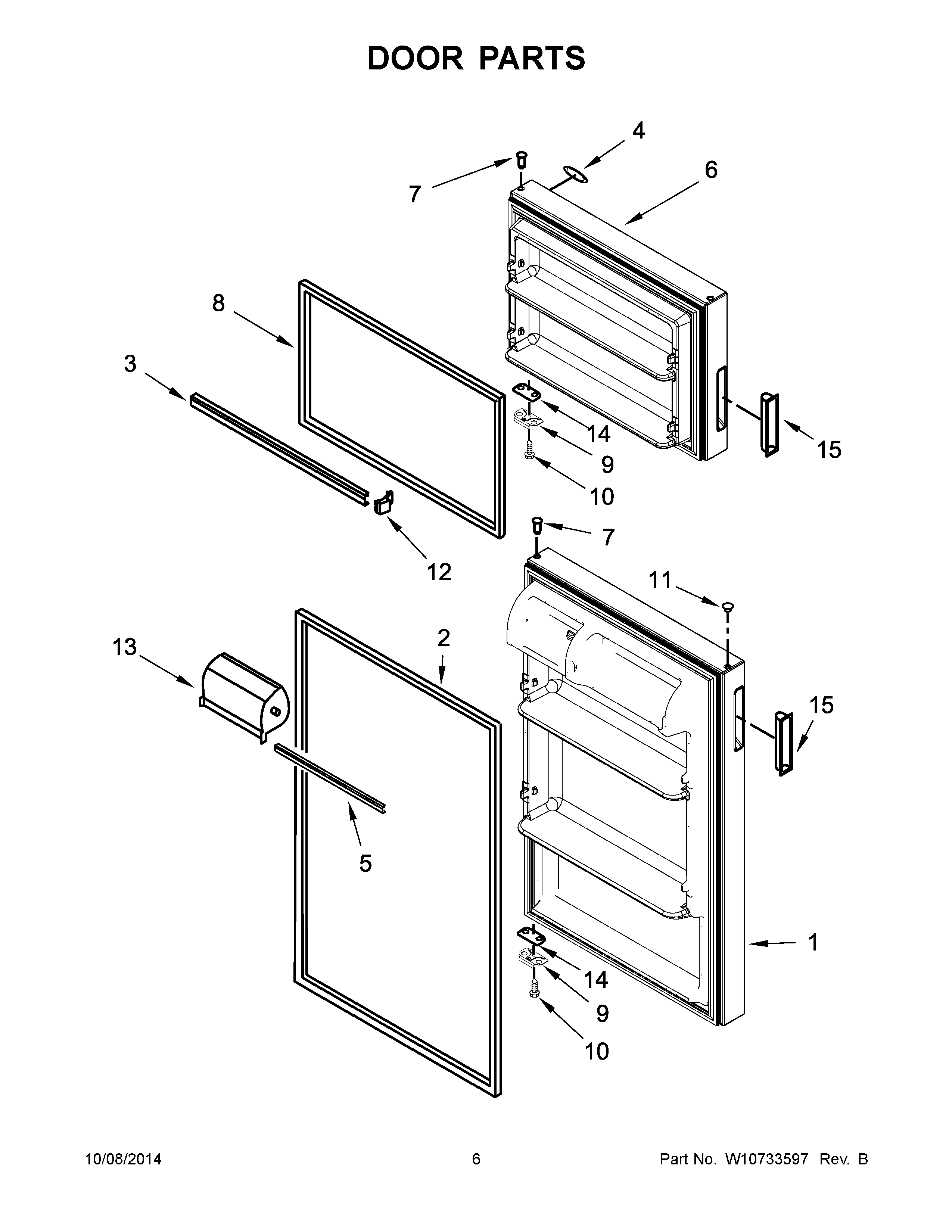

ST14CKXDQ00 04 – DOOR PARTS

ST14CKXDQ00 04 – DOOR PARTS

Written by

in

ST14CKXDQ00 04 – DOOR PARTS

Products

PositionProduct
1LW10570557 Whirlpool Refrigerator DOR-FIP Assembly
2WP2319265T Whirlpool Refrigerator FIP Gasket
3WP2266727 Whirlpool Refrigerator Door Trim
4Nameplate
5W11129820 Whirlpool Refrigerator Door Trim
6LW10573399 Whirlpool Refrigerator DOR-FIP
7WP2183003 Whirlpool Thimble
8GASKET-FIP
9W11745278 Whirlpool Bracket
10WP488921 Whirlpool Refrigerator Screw
11WP2212648 Whirlpool Refrigerator Hinge Sleeve Hole Plug
12WP2156003 Whirlpool Refrigerator Door Shelf End Cap
13DOOR-COMP
14WP2258681W Whirlpool Refrigerator Shim
15W10182940 Whirlpool Handle
