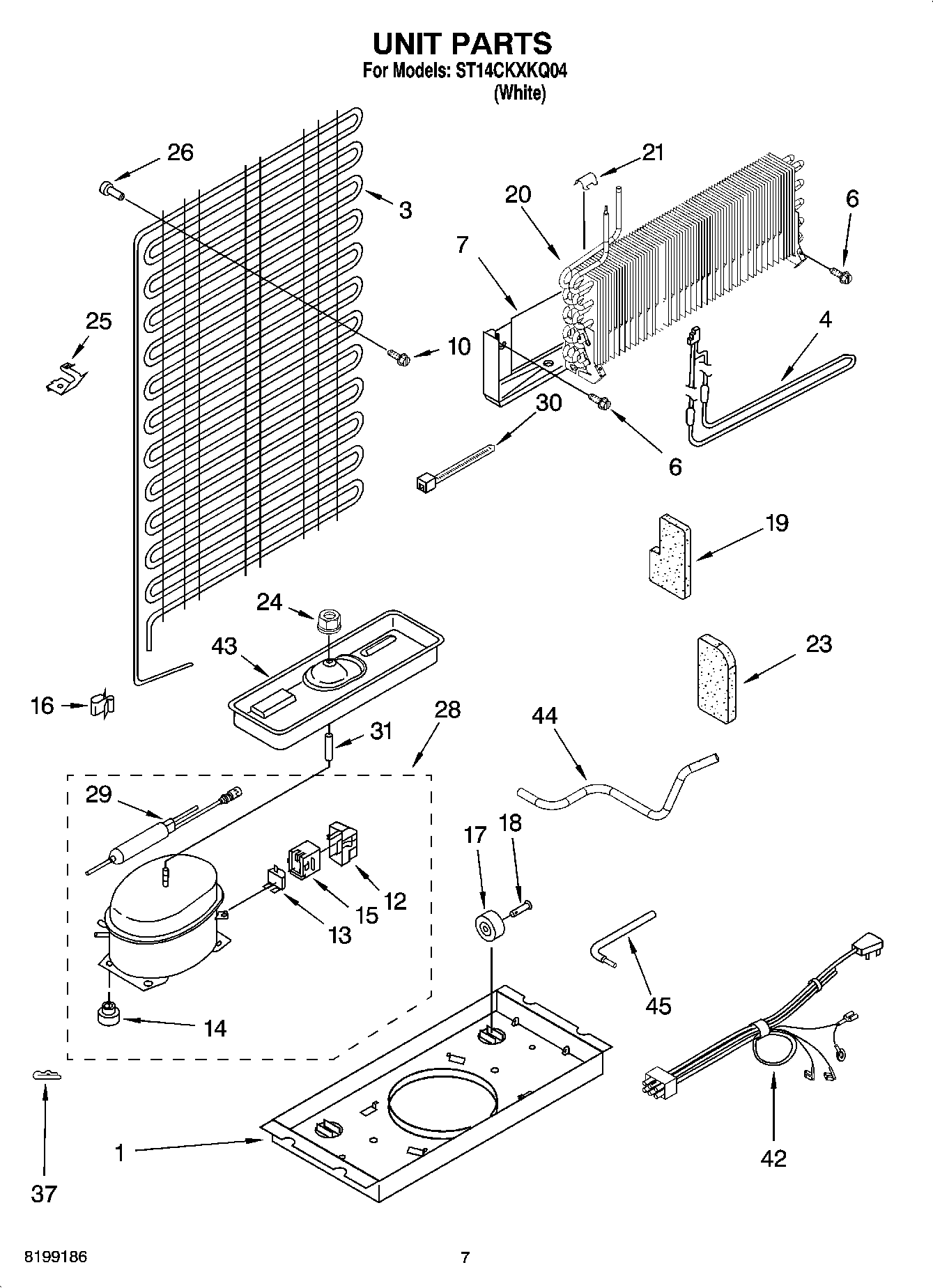

ST14CKXKQ04 04 – UNIT PARTS

Products

Position	Product
1	WPW10222451 Whirlpool Refrigerator Support
3	WP2252730 Whirlpool Refrigerator Condenser
4	WP2263749 Whirlpool Defrost Heater Assembly
6	WP489442 Whirlpool Refrigerator Screw
7	Heat Shield
10	Screw
12	WP2162358 Whirlpool Refrigerator Terminal Cover
13	WP2149959 Whirlpool Refrigerator Overload
13	WP4387938 Whirlpool Refrigerator Overload
14	WP4387558 Whirlpool Refrigerator Compressor Grommet
14	WP2163786 Whirlpool Refrigerator Grommet
15	Start Device, 2258450 Combination (Start Relay and Overload) For Production Compressor Only
16	W10812038 Whirlpool Refrigerator Clip
17	WPW10475495 Whirlpool Roller Assembly
18	W11594405 Whirlpool Axle
19	8201619 Whirlpool Refrigerator Support Assembly
20	WP2263919 Whirlpool Refrigerator Evaporator
21	9791833 Whirlpool Refrigerator Clip
24	285002 Whirlpool Nut
25	4386951 Whirlpool Refrigerator Clip
26	2258452 Whirlpool Refrigerator Spacer
28	W10823815 Whirlpool Refrigerator Compressor
29	W10843121 Whirlpool Refrigerator Tube
30	WPW10339879 Whirlpool Wire Tie
31	Spacer
37	Clip, Compressor
42	Wire Assy. Unit
43	Tray, Evaporator
44	Tube, Discharge
45	Tube, Process
45	Following Parts Not Illustrated and Optional Parts Not Included
45	VALVE, ACCESS (5/8“)
45	VALVE, ACCESS (1/2“)
45	WP978025 Whirlpool Refrigerator Valve
45	978030 Whirlpool Refrigerator Valve
45	978027 Whirlpool Refrigerator Primary Valve
45	978026 Whirlpool Refrigerator Primary Valve
45	876764 Whirlpool Refrigerator Primary Valve
45	REFRIGERANT CHARGE 3.75 Ozs. (R134A)
