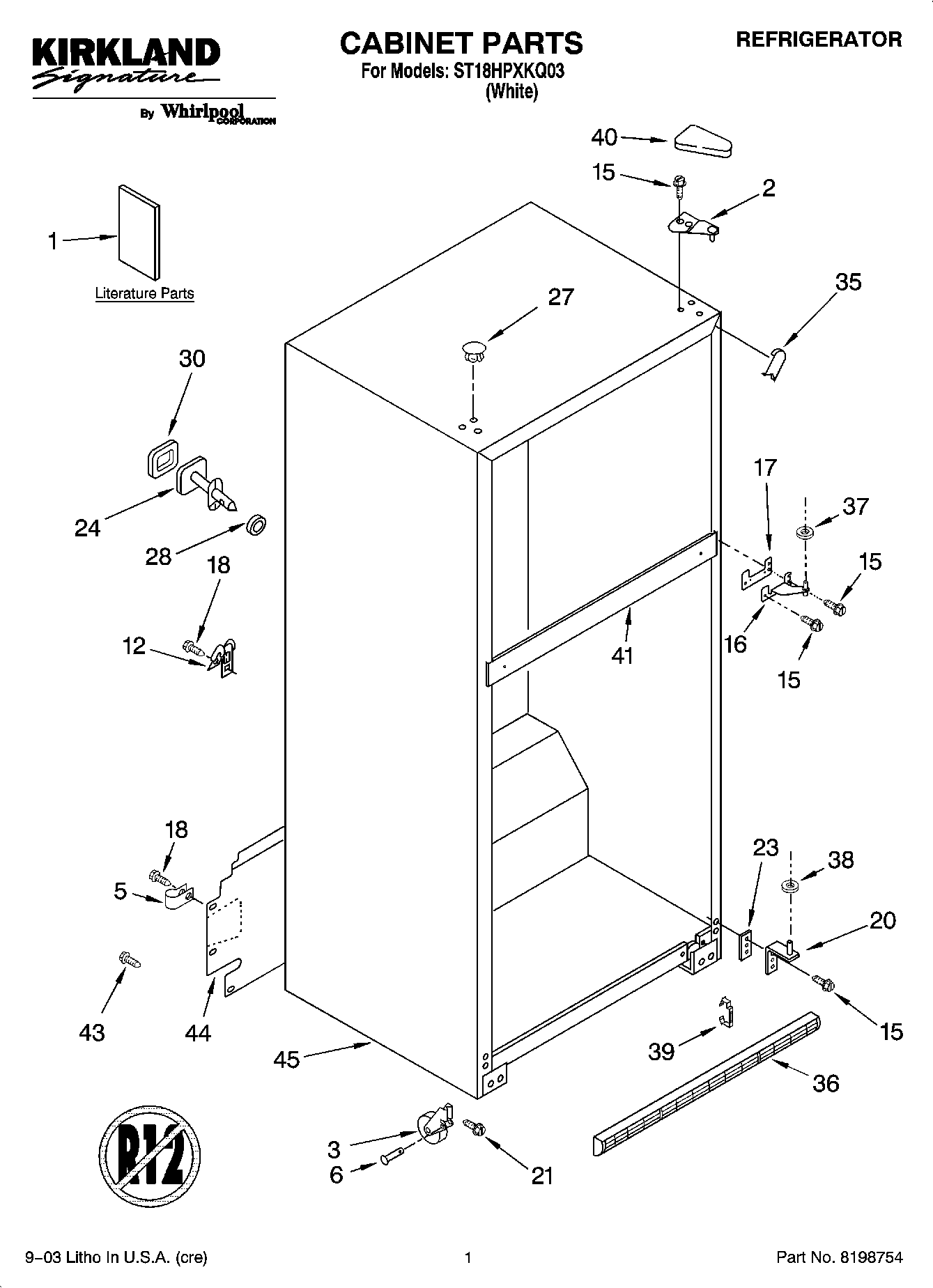

ST18HPXKQ03 01 – CABINET PARTS

Products

PositionProduct
1Literature Parts (Energy Label)
1LITERATURE PARTS (Customer Quick Tips)
1Literature Parts (Service & Wiring Sheet)
1Literature Parts (Use & Care Guide)
2WP2261963 Whirlpool Refrigerator Door Hinge
3WP2166108 Whirlpool Refrigerator Cabinet Roller
5WP488366 Whirlpool Refrigerator Clamp
6W11594405 Whirlpool Axle
12549193 Whirlpool Refrigerator Power Clamp
15WP489497 Whirlpool Screw
16WP2254618 Whirlpool Center Door Hinge
17WP2183854 Whirlpool Refrigerator Shim
18WP489464 Whirlpool Refrigerator Screw
20WP2254473 Whirlpool Refrigerator Door Hinge
21WP3400504 Whirlpool Refrigerator Screw
23Shim, Bottom Hinge
24Fitting, Water Tube (Not Serviced)
27WP2151652 Whirlpool Refrigerator Button Plug
28Seal, Front (Not Serviced)
30Seal, Rear (Not Serviced)
35WPW10283959 Whirlpool Refrigerator Filler
36WP2254386 Whirlpool Refrigerator Grille
37WP489467 Whirlpool Hinge Shim
38WP487576 Whirlpool Washer
392254385 Whirlpool Refrigerator Clip
39CLIP, GRILLE
40WP2213360 Whirlpool Refrigerator Cover
41Rail Center (Not Serviced)
43WP489442 Whirlpool Refrigerator Screw
44Cover, Unit
45Cabinet (Not A Serviceable Part)
