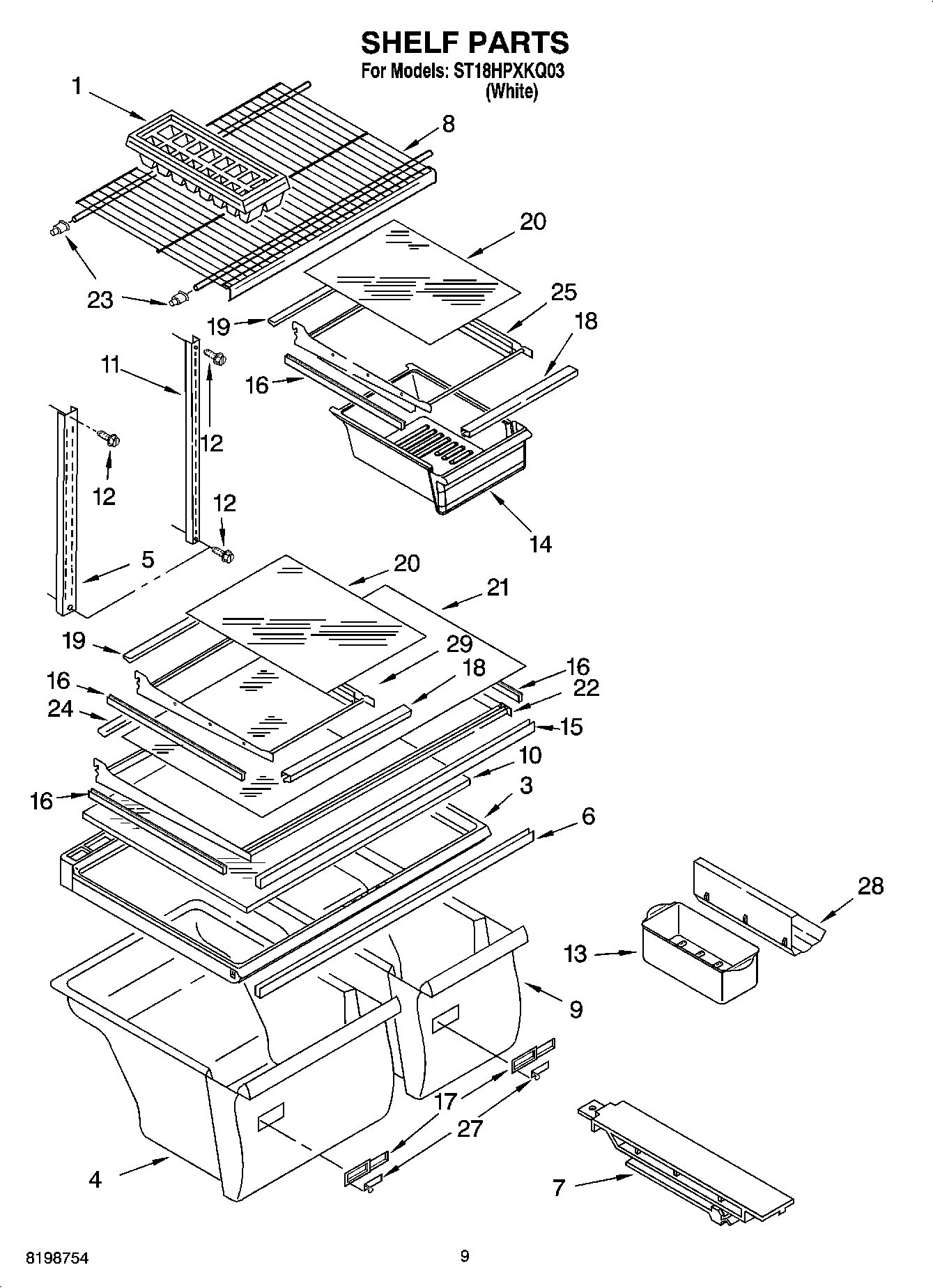

ST18HPXKQ03 05 – SHELF PARTS, OPTIONAL PARTS

ST18HPXKQ03 05 – SHELF PARTS, OPTIONAL PARTS

Written by

in

ST18HPXKQ03 05 – SHELF PARTS, OPTIONAL PARTS

Products

PositionProduct
350930 Whirlpool White Spray Paint
WP542638 Whirlpool Refrigerator Grease
Torx Key
TAPE, VINYL (3/4 X 108“)
CEMENT, ALUMILASTIC (1 1/4 OZ.)
WPL 799832
WPL 799833
WPL 876029
W11729596 Whirlpool Ice Maker Field Install Kit
WPL ARI130738A
WPL ARI130737A
WPL ARI130736A
WPL ARI130741A
72032 Whirlpool Touch Up Paint Black
WP505587 Whirlpool Refrigerator Sealer
WP503695 Whirlpool Refrigerator Sealer
WPL ARI130739A
350956 Whirlpool Spray Assembly
72017 Whirlpool Appliance Touch-Up Paint White
799344 Whirlpool Refrigerator Paint
WP72107 Whirlpool Touchup
Almond (Uncut)
WPL ARI130740A
876370 Whirlpool Refrigerator Insulation
212643 Whirlpool Refrigerator Permagum Sealer
350942 Whirlpool Spray Paint
511873 Whirlpool Refrigerator Paint
606755 Whirlpool Refrigerator Bag
833938 Whirlpool Refrigerator Terminal
285006 Whirlpool Spray
1WP841180A Whirlpool Microwave Glass Turntable Tray
3WP2314548 Whirlpool Refrigerator Cover
4W10854037 Whirlpool Refrigerator Crisper Pan
5Shelf, Ladder
6WP2172748 Whirlpool Drawer Support
7WP2163835 Whirlpool Track Assembly
8WP2176275 Whirlpool Refrigerator Wire Shelf
9W10856580 Whirlpool Crisper Pan
10WP2169921 Whirlpool Refrigerator Glass Shelf
11Shelf, Ladder (2)
12WP489478 Whirlpool Refrigerator Screw
13W10136387A Whirlpool Refrigerator Egg Container
14PAN-MEAT
15Trim, Shelf (Front)
16Trim, Shelf Side
17WP2212446 Whirlpool Refrigerator Control Body
18Trim, Shelf Front
19WP2188689 Whirlpool Refrigerator Shelf Trim
20Glass, Half Shelf
21Glass, Full Shelf
22(Complete Shelf Not Shown Includes Items 3,13,16,18 & 21)
232163762 Whirlpool Refrigerator Cup Assembly
25Shelf, Cantilever Meat Pan (Complete)
27WP2176222 Whirlpool Refrigerator Slide
28W10777924 Whirlpool Refrigerator Wine Rack
29Shelf, Catnilever
