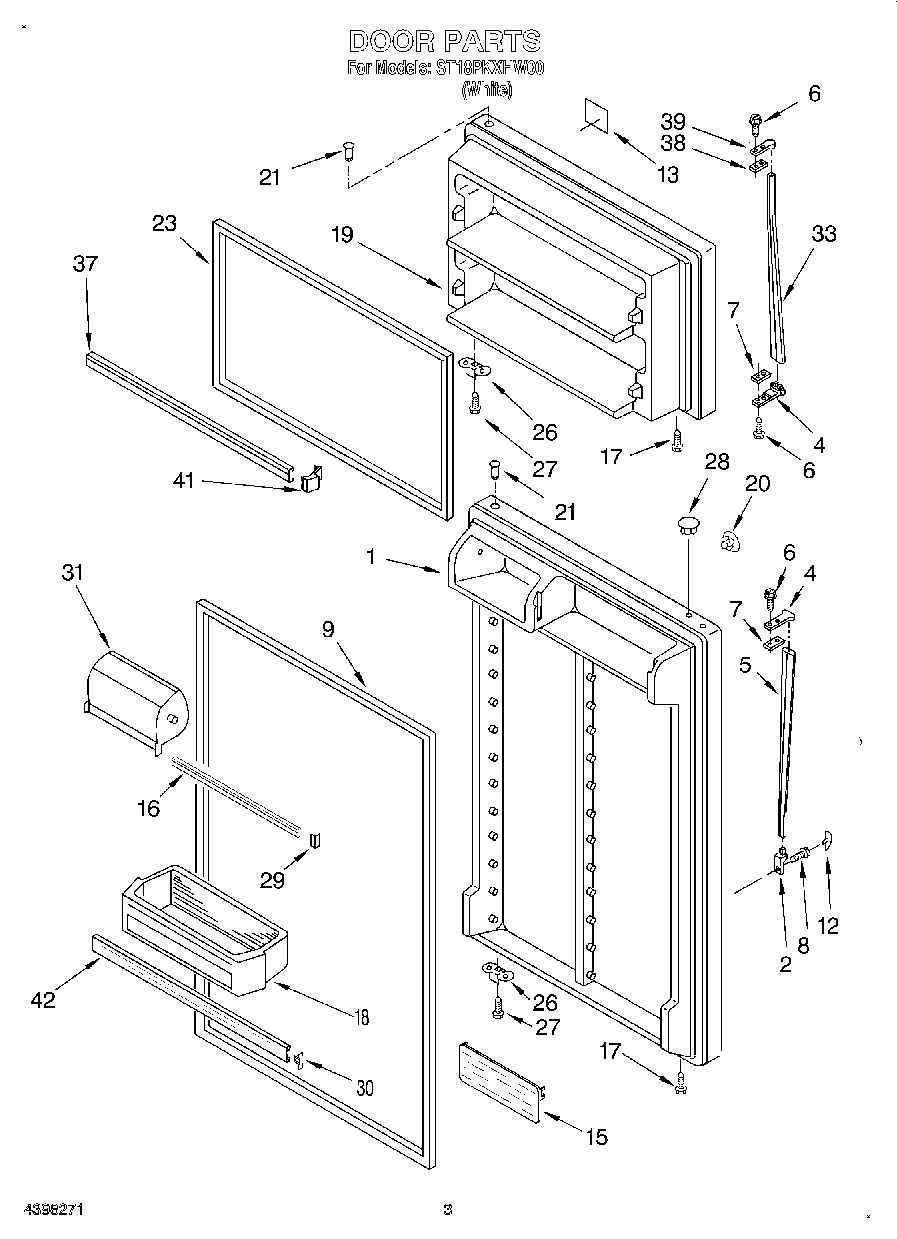

ST18PKXHW00 02 – DOOR

Products

Position	Product
1	Refrigerator Door (Includes Illus. 3,4, 9 & 17) (White)
2	819342 Whirlpool Refrigerator Endcap Kit
5	WP2162555 Whirlpool Refrigerator White Door Handle
6	WP488920 Whirlpool Refrigerator Screw
7	Spa
8	WP488729 Whirlpool Refrigerator Door Screw
9	2159057 Whirlpool Refrigerator Fresh Food Door Gasket
12	Cover, Screw (White)
13	Nameplate
15	WP2188234 Whirlpool Shelf
16	TRIM-DOOR
17	WP8281206 Whirlpool Refrigerator Screw
18	Door Bin (3)
19	Freezer Door (Includes Illus. 4, 17 & 18) (White)
20	WP2189000 Whirlpool Refrigerator Handle Plug
21	WP2183003 Whirlpool Thimble
23	2159327 Whirlpool Refrigerator Door Gasket
26	W11745278 Whirlpool Bracket
27	WP488921 Whirlpool Refrigerator Screw
28	WP2212648 Whirlpool Refrigerator Hinge Sleeve Hole Plug
29	ENDCAP-TRM
30	WP2156006 Whirlpool Refrigerator Shelf Trim Endcap
31	WP2218113 Whirlpool Dairy Door
37	Trim-Door (2)
38	Shim, Handle
41	ENDCAP
42	WPW10421484 Whirlpool Refrigerator Door Trim
100	FeaturePak (Includes 15, 16, 18, 29, 30, 31, 37, 41, 42) Also See Shelf Page.
