ST18PKXJW00 02 – DOOR

ST18PKXJW00 02 – DOOR

Written by

in

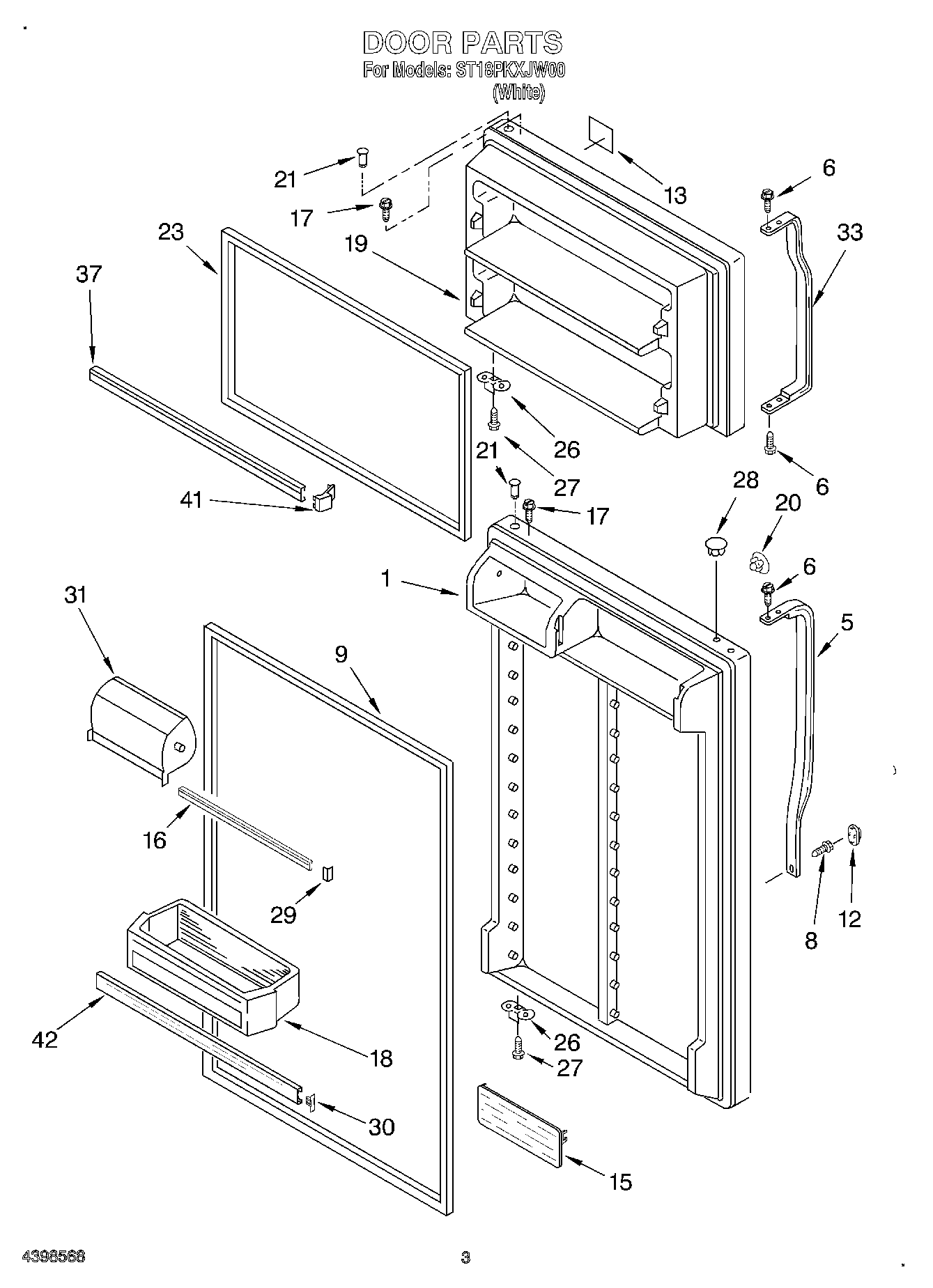

ST18PKXJW00 02 – DOOR

Products

PositionProduct
1Refrigerator Door (Includes Illus. 3,4, 9 & 17) (White)
5WP2202807W Whirlpool Handle Door
6WP489357 Whirlpool Recessed Screw
8WP8281146 Whirlpool Screw
92159057 Whirlpool Refrigerator Fresh Food Door Gasket
12WP2202819W Whirlpool Refrigerator Cover
13Nameplate
15WP2188234 Whirlpool Shelf
16TRIM-DOOR
17WP8281206 Whirlpool Refrigerator Screw
18Door Bin (3)
19Freezer Door (Includes Illus. 4, 17 & 18) (White)
20WP2189000 Whirlpool Refrigerator Handle Plug
21WP2183003 Whirlpool Thimble
232159327 Whirlpool Refrigerator Door Gasket
26W11745278 Whirlpool Bracket
27WP488921 Whirlpool Refrigerator Screw
28WP2212648 Whirlpool Refrigerator Hinge Sleeve Hole Plug
29ENDCAP-TRM
30WP2156006 Whirlpool Refrigerator Shelf Trim Endcap
31WP2218113 Whirlpool Dairy Door
33WP2202806W Whirlpool Refrigerator Handle
37Trim-Door (2)
41ENDCAP
42WPW10421484 Whirlpool Refrigerator Door Trim
