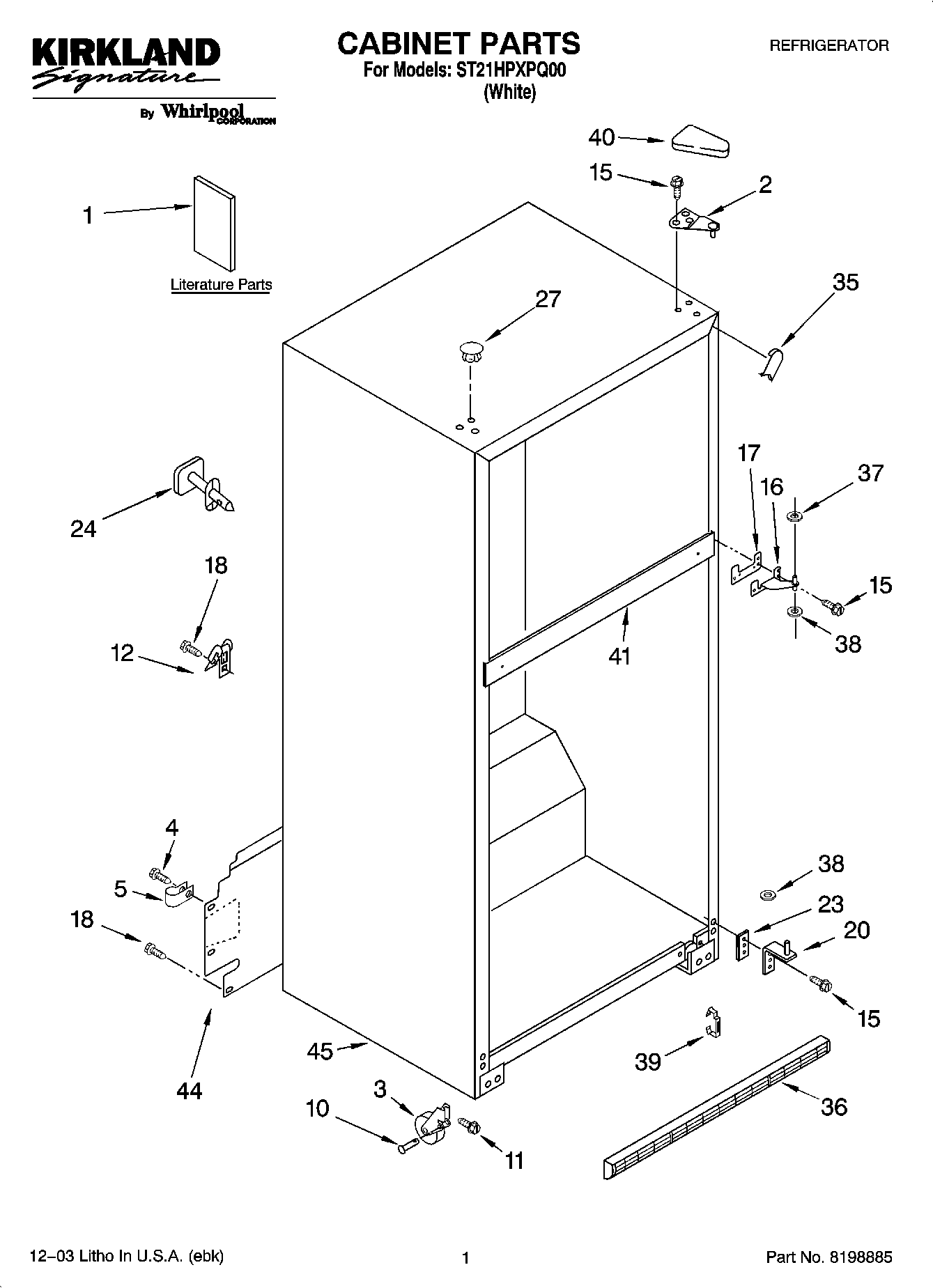

ST21HPXPQ00 01 – CABINET PARTS

ST21HPXPQ00 01 – CABINET PARTS

Written by

in

ST21HPXPQ00 01 – CABINET PARTS

Products

PositionProduct
1Literature Parts (Energy Label)
1Literature Parts (Customer Instructions)
1Literature Parts (Service & Wiring Sheet)
1Literature Parts (Use & Care Guide)
2WP2261963 Whirlpool Refrigerator Door Hinge
3WP2166108 Whirlpool Refrigerator Cabinet Roller
5WP488366 Whirlpool Refrigerator Clamp
10W11594405 Whirlpool Axle
11WP3400504 Whirlpool Refrigerator Screw
12549193 Whirlpool Refrigerator Power Clamp
15WP489497 Whirlpool Screw
16WP2254618 Whirlpool Center Door Hinge
17WP2183854 Whirlpool Refrigerator Shim
18WP489464 Whirlpool Refrigerator Screw
20WP2254473 Whirlpool Refrigerator Door Hinge
23Shim, Bottom Hinge
24Fitting, Water Tube (Not Serviced)
27WP2151652 Whirlpool Refrigerator Button Plug
35WPW10283959 Whirlpool Refrigerator Filler
36Grille (White)
37WP489467 Whirlpool Hinge Shim
38WP487576 Whirlpool Washer
39CLIP, GRILLE
40WP2213360 Whirlpool Refrigerator Cover
41Rail Center (Not Serviced)
44Cover, Unit
45Cabinet (Not A Serviceable Part)
