SU210JXH1 08 – PUMP, MOTOR, & COMPONENTS – Aparts

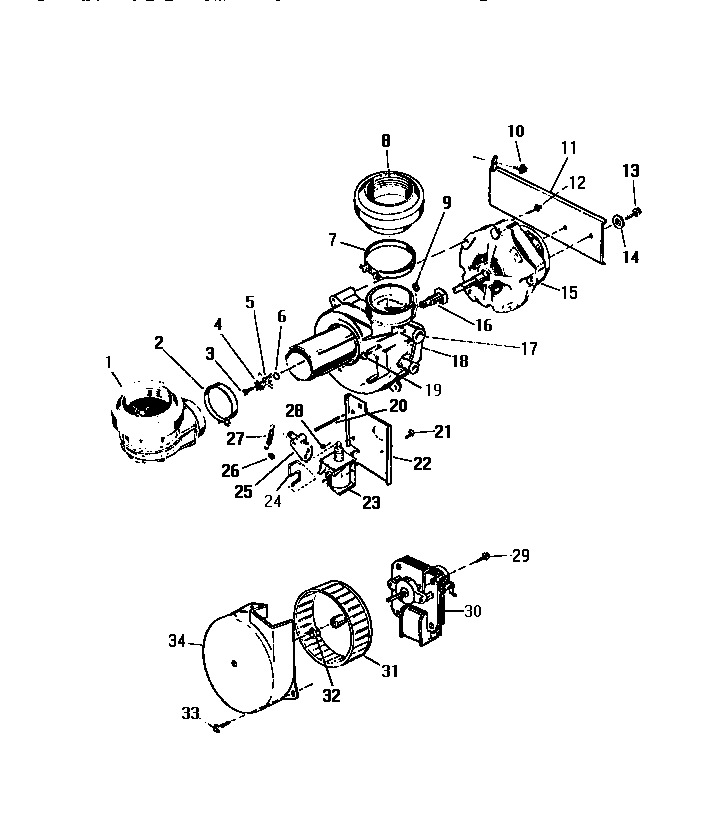

SU210JXH1 08 – PUMP, MOTOR, & COMPONENTS

Products

Position	Product
*49692	CLAMP, HOSE TO FILTER, TOP
*49691	WCI 194C644H04
1	WCI S453301
2	WCI S131511
3	WCI S7401
4	WCI S17001
5	WCI S122902
6	WCI S7501
7	WCI S131510
8	BOOT WITH NUT
9	WCI S8001
11	WCI S449201
12	SCREW (4)
13	WCI S10401
14	GROMMET
15	WCI S447301
16	WCI S123201
17	WCI S128401
18	WCI S800602
19	WCI S104701
21	WCI S9501
22	WCI S271001
23	WCI S271701
24	WCI S10301
25	WCI S271101
26	WCI S8101
27	WCI S124301
28	WCI S12801
29	WCI S13201
30	WCI S271401
31	WCI S271301
32	WCI 194C546H03
33	WCI S13301
34	WCI S447101
