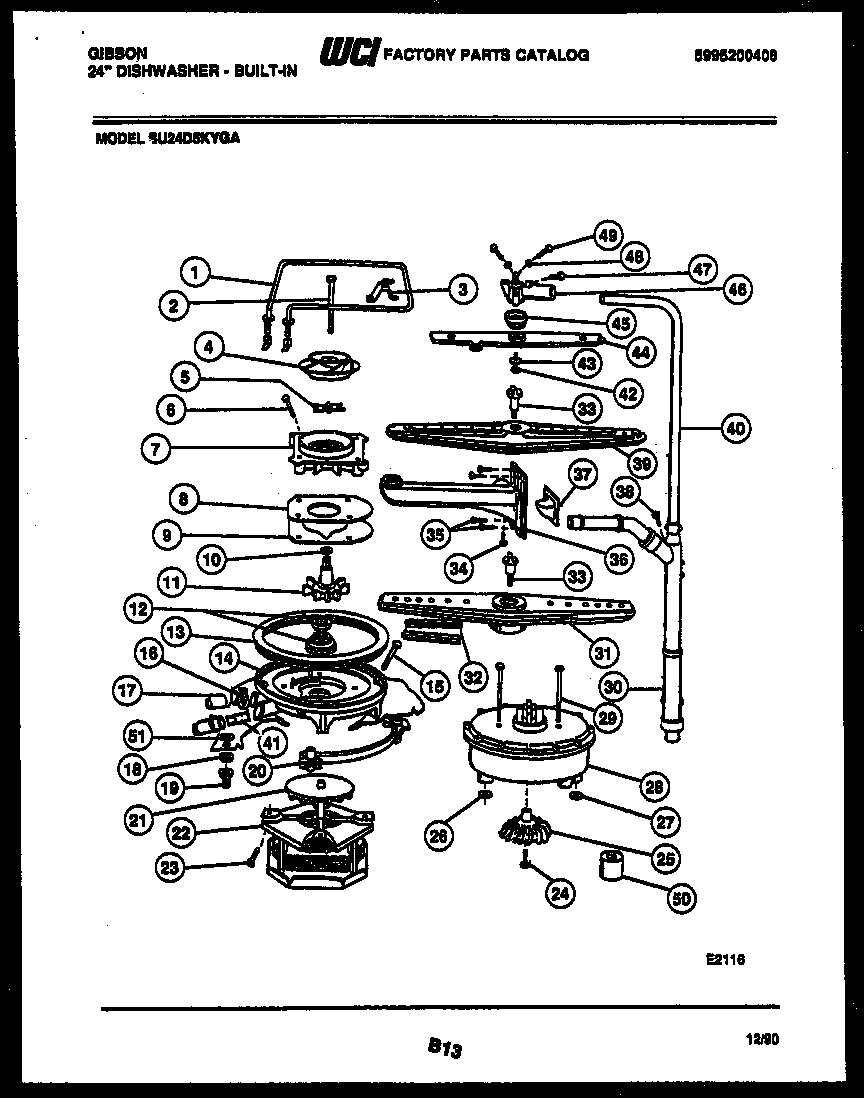

SU24D5KYGA 06 – MOTOR PUMP PARTS

Products

Position	Product
1	WCI 5300809584
2	WCI 5300806353
3	HEATER BRACKET
4	5300809918 Frigidaire Dishwasher Upper Impeller
5	5300809920 Frigidaire Dishwasher Blade Assembly
5	WCI 5300809863
6	WCI 5300804594
6	WCI 5300807359
7	WCI 5300809921
8	WCI 5300809006
9	WCI 5300809007
10	5300806521 Frigidaire Dishwasher Filter O-Ring
11	PUMP IMPELLER KIT
12	WCI 5300803903
13	5300809586 Frigidaire Dishwasher Gasket
14	PUMP HOUSING
15	WCI 5300807268
16	CLAMP
17	WCI 5300809628
18	5300809983 Frigidaire Washer
19	154106202 Frigidaire Dishwasher Heater Nut
20	WCI 5300809590
21	WCI 5300809366
22	WCI 5303270029
23	WCI 5300809022
24	SCREW-8 X 3/4“
25	WCI 5300809014
26	WCI 5300809016
27	WCI 5300809015
28	FILTER BODY ASSEMBLY
29	SCREW-10 X 2 7/8“
30	DELIVERY TUBE ASSY KIT
31	WCI 5300810015
32	WCI 5300809938
33	WCI 5300809018
34	WCI 530806656
35	SCREW-8 X 5/8“
36	WCI 5300809019
37	WCI 5300805781
38	SCREW-8 X 1/2“
39	SPRAY ARM ASSEMBLY
40	WCI 5300807224
41	WCI 5300809937
42	SCREW-8 X 1 1/4“
43	WCI 5300808465
44	SPRAY ARM SEAL ASSY
45	WCI 5300808462
46	5300808464 Frigidaire Dishwasher Distributor
47	SCREW
48	WCI 5300809044
49	SCREW-8 X 5/8“
50	WCI 5300803923
51	WASHER
