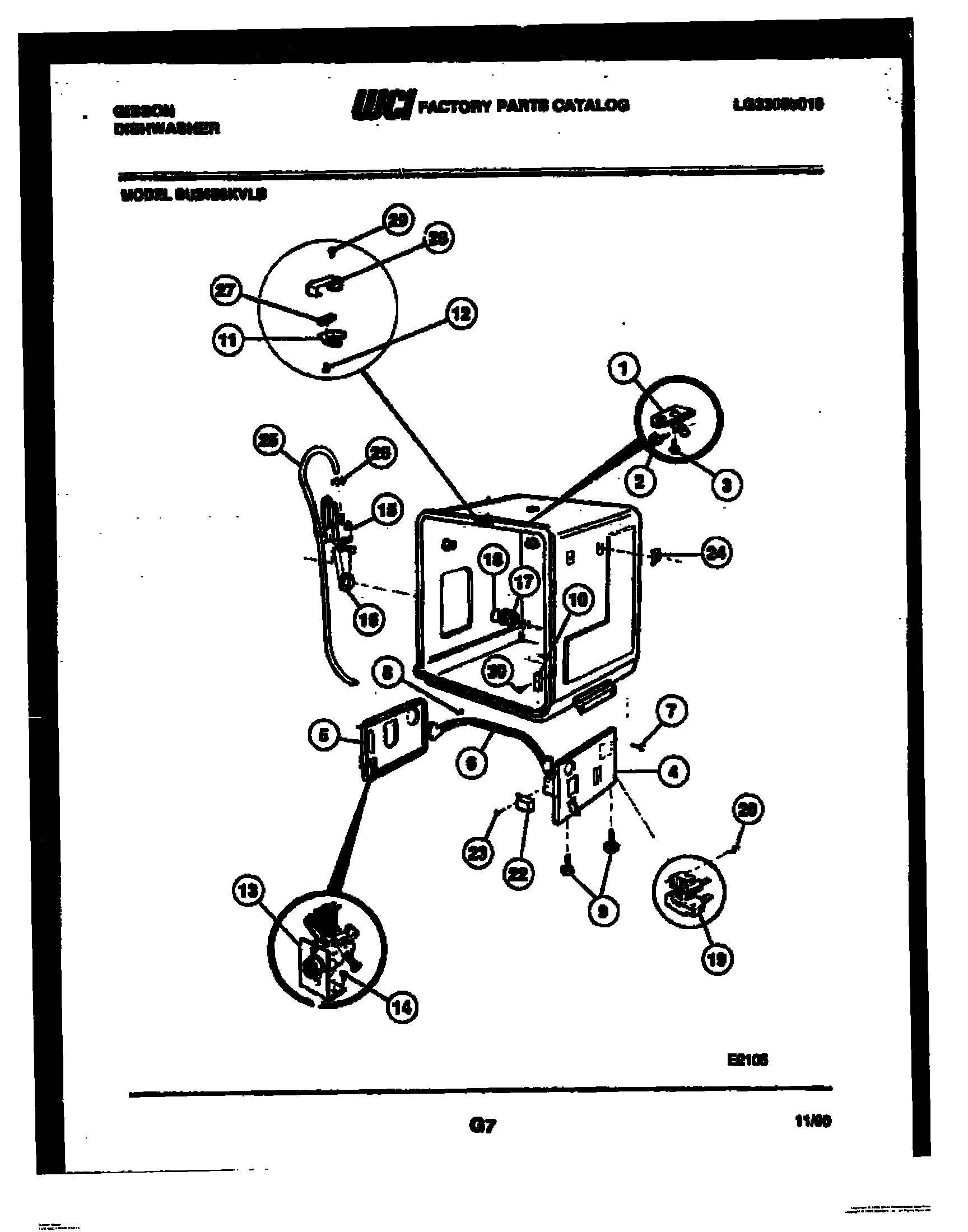

SU24S8KVLB 05 – TUB AND FRAME PARTS

SU24S8KVLB 05 – TUB AND FRAME PARTS

Written by

in

SU24S8KVLB 05 – TUB AND FRAME PARTS

Products

PositionProduct
1WCI 5303351011
2SCREW BRKT. (2)
3WCI 3351013
4WCI 08057444
5WCI 08057445
6WCI 3351016
9WCI 3351018
10WCI 3351022
11WCI 5303351024
12WCI 5300013601
13WCI 5303351026
15WCI 5303351030
16AWCI 5300809730
16WCI 5303351031
17WCI 08014814
18WCI 3351033
19WCI 5303351059
20WCI 5300006902
22WCI 08057593
23WCI 3351058
24WCI 5303351087
25WCI 08016576
26WCI 5303208142
27WCI 5303351159
28WCI 08013433
29WCI 3351161
30WCI 08001088
