SU330JXR1 06 – INNER TUB COMPONENTS – Aparts

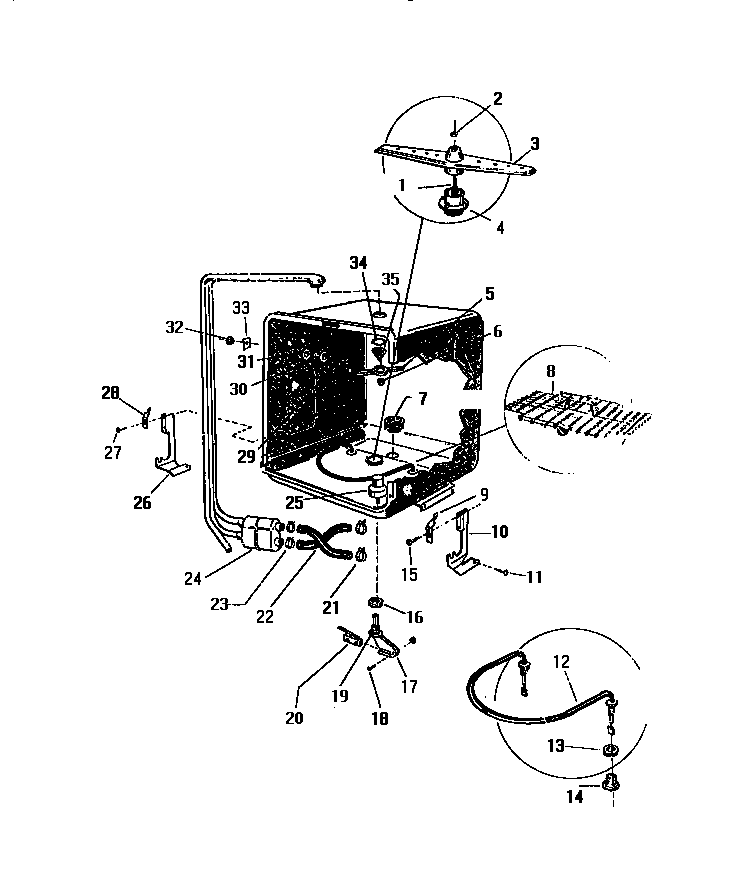

SU330JXR1 06 – INNER TUB COMPONENTS

Products

Position	Product
*49705	WCI S900134
*49688	WCI S130702
*49689	WCI 194C644H04
1	SPRING, WASH ARM
2	WCI S17101
3	WCI S461001
4	WCI S900203
5	WCI S456201
6	WCI S128201
7	WCI S272801
8	WCI S465801
10	WCI S442403
11	WCI C403401
12	HEATER WITH GASKET AND NUT
13	WCI S7101
14	WCI S7201
16	WCI S125401
17	WCI S451601
18	WCI C413103
19	WCI S11301
20	WCI S124101
21	CLAMP,HOSE TO PUMP, BOTTOM
22A	WCI S128301
22	WCI S274201
23A	CLAMP, HOSE TO FILTER, BOTTOM
23	CLAMP, HOSE TO FILTER, TOP
25	WCI S457701
26	WCI S442404
27	WCI S9501
28	WCI S130601
29	WCI S5401
30	WCI S116201
31	WCI S4203
32	WCI S10201
33	WCI S10101
34	WCI S12401
35	WCI S273401
