SU500DXR6 03 – CONTROL PANEL – Aparts

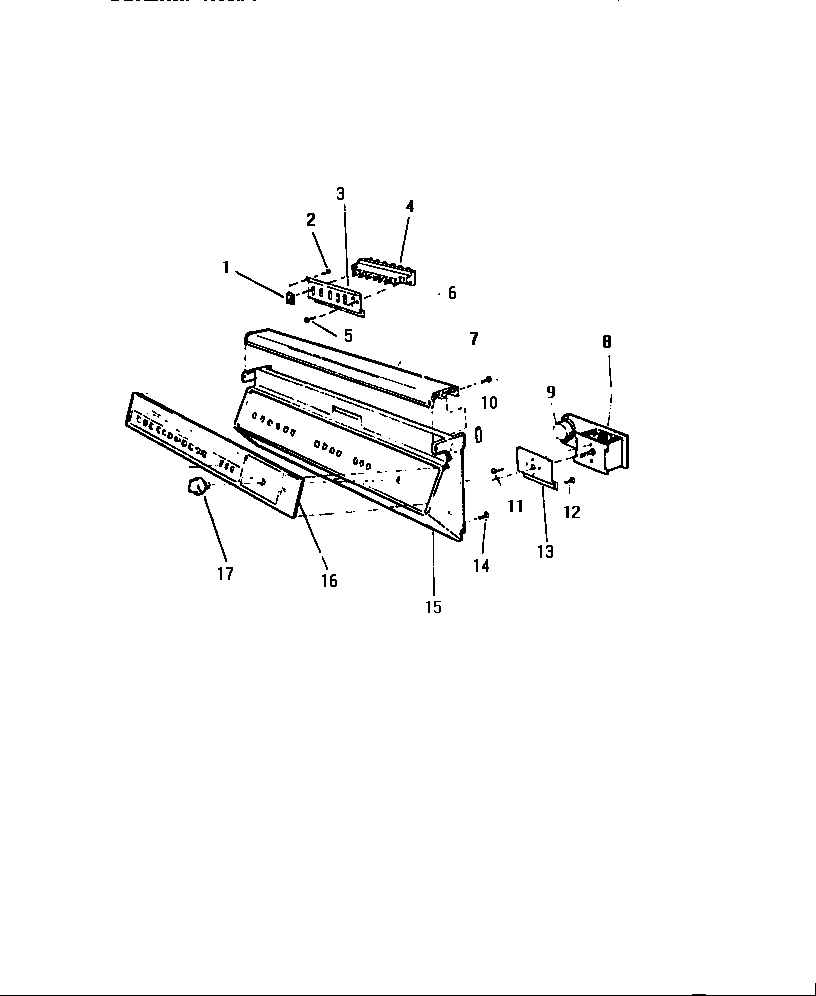

SU500DXR6 03 – CONTROL PANEL

Products

Position	Product
1	BUTTON (AS REQUIRED)
3	PLATE (3-1/2 `` WD)
4	WCI S434202
5	SCREW (AS REQUIRED)
6	WCI S427106
7	WCI S403401
8	TIMER -W/MOTOR SU500D 6
9	MOTOR (REGULAR)
10	WCI S265501
11	SCREW (2)
12	SCREW (AS REQUIRED)
13	WCI S117701
14	SCREW (AS REQUIRED)
15	PANEL W/INSERT SU500 6
16	INSERT SU500 6
17	WCI S252002
