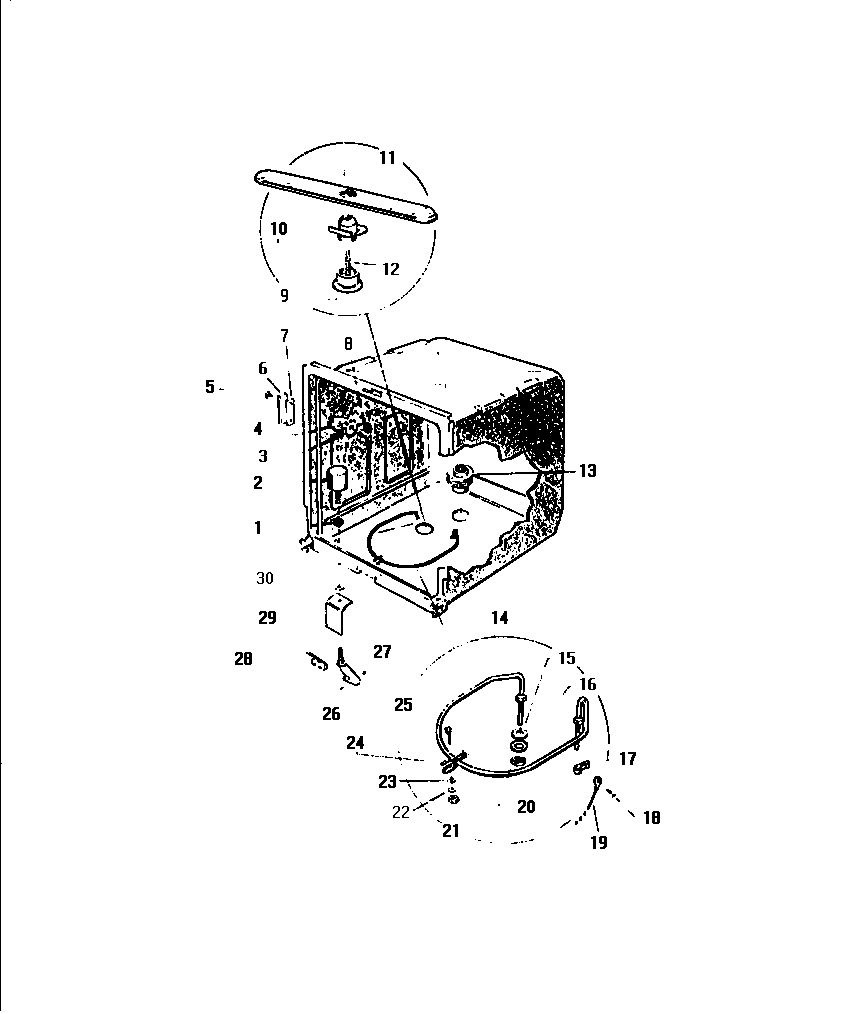

SU500DXR6 06 – INNER TUB

SU500DXR6 06 – INNER TUB

Written by

in

SU500DXR6 06 – INNER TUB

Products

Position	Product
1	WCI S117901
2	WCI S415202
3	WCI S116201
4	WCI S4203
6	WCI S119301
7	WCI S5001
8	WCI S5401
9	SUPPORT LESS SPRING
10	WCI S414702
11	WCI S411601
12	WCI S255703
13	WCI S268601
14	HEATER (WITH GASKETS)
15	GASKET, INSIDE TUB (2)
16	WCI C411208
17	WCI C507337
18	SCREW
19	WCI 2645D77A15
20	NUT (2 REQ.)
21	WCI C501879
22	WCI S4204
23	WCI C505384
24	WCI 848A040H01
25	WCI Q503184
26	SCREW (WITH NUT)
27	WCI 2646D58H03
28	WCI 2646D25H03
29	WCI S105001
30	WCI 848A024H01
